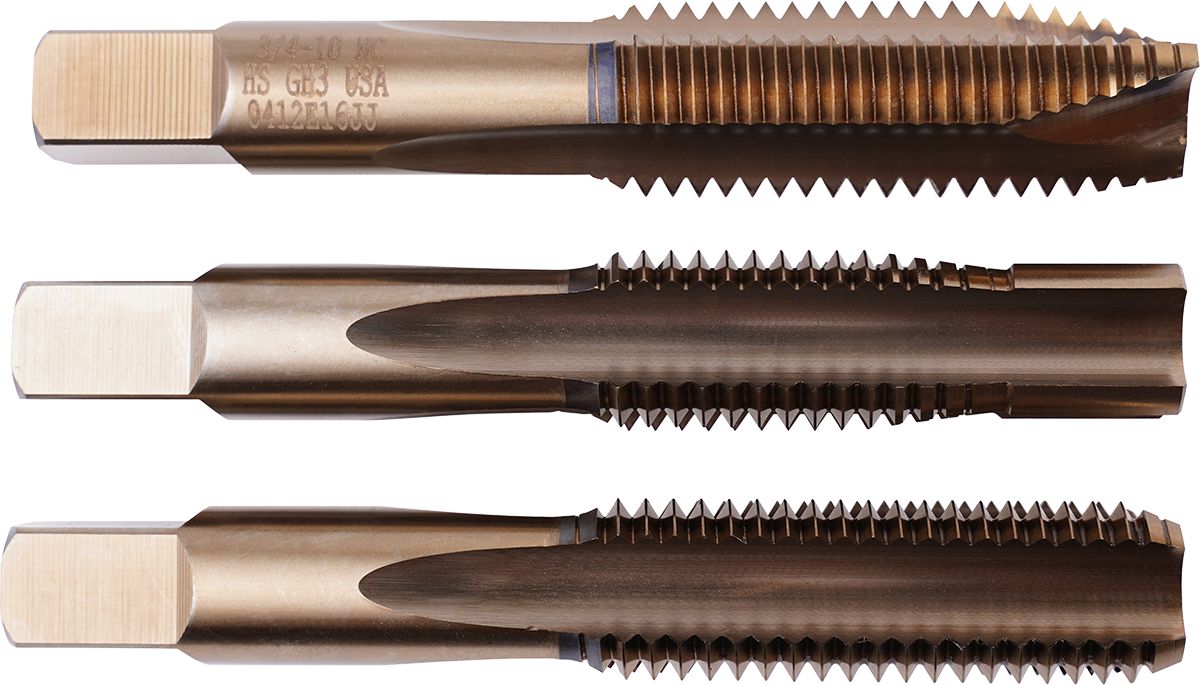

Pilotdrive Cryotap 3/4"-10 Tri-Pak, Pilotdrive, Plug, Bottoming Hand Taps
(Pack of
1)
SKU:DY80694503 Item#: DY80694503
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Spot Weld Remover Drill Bit HSS 3/8" (M10)
$0.00
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 3/16"
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-3/4" (M8)
$0.00
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 5/8-18
$0.00
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 12-24
$0.00
Couldn't load pickup availability
HSS Left Hand Plug Tap 5/16-18
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
5/8"-18 Bottoming Tap, 4-Flute, HSS
$0.00
Couldn't load pickup availability
Drill-Tap
$0.00
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 1-1/8-12
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 3/8" (M10)
$0.00
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
$0.00
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
$0.00
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80694503 |
|---|---|
| Type | Fractional |
| Style | Set |
| Material | High Speed Steel |
| Diameter | 3/4 " |
| Pitch | 10 |
| Flutes | 4 |
| Thread Length | 4-1/4 " |
| H Limits | 4 |
| Recommended Drill Size | 21/32 " |
| Description | One each of Pilotdrive, Plug, and Bottoming Style Taps |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 1.005 lb |
