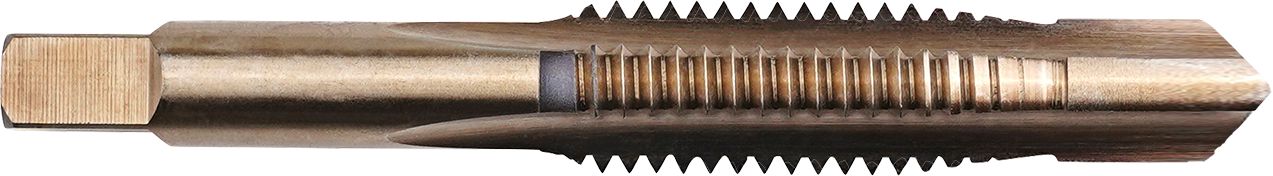

Pilotdrive Cryotap 7/8"-9 Starter Hand Tap
(Pack of
1)
SKU:DY80635027 Item#: DY80635027
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
Zirconium Grain Locking Grinding Disc 2"
Couldn't load pickup availability
Cryobit 1/8" Dia. Maintenance Drill Bit , 135o Split Point, No Flats
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
Couldn't load pickup availability
9" Hi-Level Heavy-Duty Power Jaw Plier-Cutter
Couldn't load pickup availability
DTM High Build Seam Sealer White 10fl.oz
Couldn't load pickup availability
Round Mini Turbo Mixer with Integrated Nut
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
HSS Spiral Point Hand Tap 1/4-20
Couldn't load pickup availability
HSS Spiral Point Hand Tap 5/16-18
Couldn't load pickup availability
HSS Spiral Point Hand Tap M3 x 0.5
Couldn't load pickup availability
3-Flute HSS Taper Hand Tap M2.5 x 0.45
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap M12 x 1.5
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap 5/16-18
Couldn't load pickup availability
Twist-On Abrasive Disc 2"
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 1/4"
Couldn't load pickup availability
Spinning Handmaster Driver Set 5Pc Set
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80635027 |
|---|---|
| Type | Fractional |
| Diameter | 7/8 " |
| Pitch | 9 |
| Flutes | 4 |
| Thread Length | 2-7/32 " |
| H Limits | H4 |
| Overall Length | 4-11/16 " |
| Recommended Drill Size | 49/64 " |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.42 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
