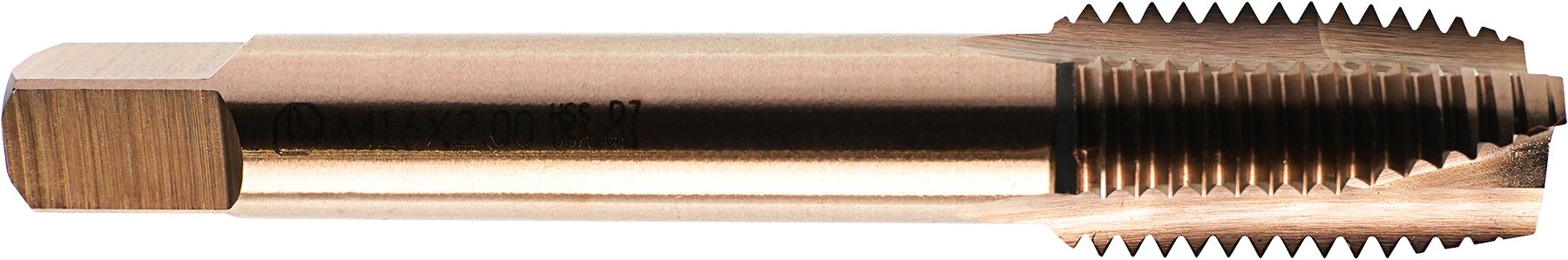

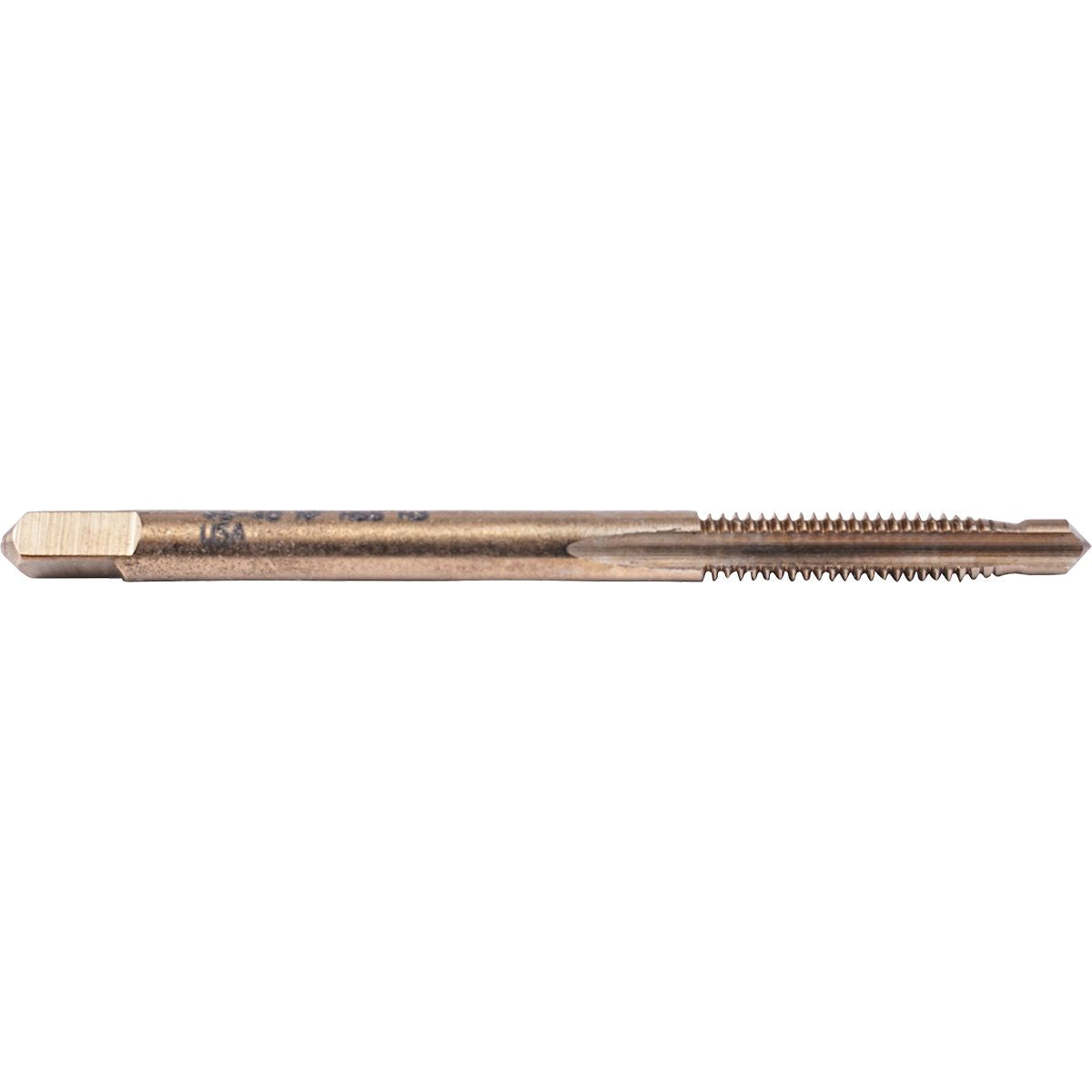

Pilotdrive Cryotap #10-24 Starter Hand Tap
(Pack of
1)
SKU:DY80635005 Item#: DY80635005
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
Cryoslash 3-5/8" x 1/2" x 0.025" Air Saw Blade 24 TPI
Couldn't load pickup availability
Steel Crimped End Brush 1/2"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/2" x 50'
Couldn't load pickup availability
Universal Socket Set, Deep, 1/2" Drive, 24pc
Couldn't load pickup availability
Adhesive-Back Shim Stock 9/16 x 1" x 30'
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
HSS Spiral Point Hand Tap 5/16-24
Couldn't load pickup availability
Pilotdrive Cryotap #6-32 Starter Hand Tap
Couldn't load pickup availability
HSS Spiral Point Hand Tap 8-32
Couldn't load pickup availability
Cryo-Drap #12-24 Drill & Tap Combo, 135o Split Point, W/Flats
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 8-36
Couldn't load pickup availability
3-Flute HSS Plug Hand Tap M2 x 0.4
Couldn't load pickup availability
Interchangeable Hex Bit Set 24Pc SAE
Couldn't load pickup availability
Abrasive Bristle Wire Belt Steel 23mm
Couldn't load pickup availability
Master Security Bit Set 203Pc
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80635005 |
|---|---|
| Type | Machine Screw |
| Diameter | #10 |
| Pitch | 24 |
| Flutes | 4 |
| Thread Length | 1/2 " |
| H Limits | H3 |
| Overall Length | 2-3/8 " |
| Recommended Drill Size | No. 25 |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.02 lb |
