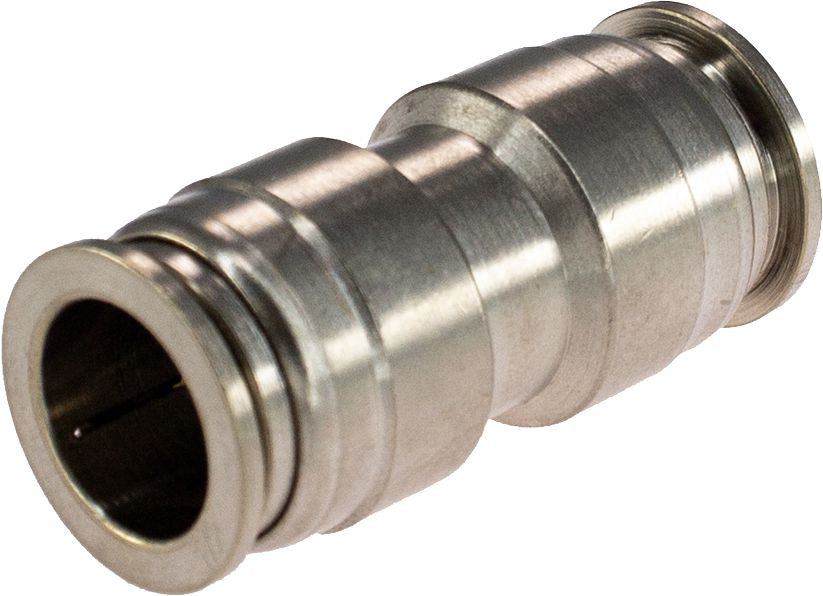

Push-to-Connect Straight Union, Nickel-Plated Brass, 1/2 x 1/2", Tube x Tube, 280 PSI Working Pressure
(Pack of
3)
SKU:28328 Item#: 28328
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Nylon Metric Tubing 4mm OD x 25m Natural
$0.00
Couldn't load pickup availability
Nylon Tubing 1/4" OD x 100' Translucent
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Polyoxymethlene, 1/2 x 1/2"
$0.00
Couldn't load pickup availability
Pipe Close Nipple Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/4-14 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Y Union Nylon 5/16 x 5/16" x 10 mm
$0.00
Couldn't load pickup availability
Push-to-Connect Connector Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector Brass 1/8 x 1/8"
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 28328 |
|---|---|
| Style | Nickel-Plated Brass Push-To-Connect |
| Configuration | Straight Union |
| Tube Size | 1/2 " |
| Material | Nickel-Plated Brass |
| Working Pressure | 280 PSI |
| Temperature Range | -4 to +176 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.29 lb |
