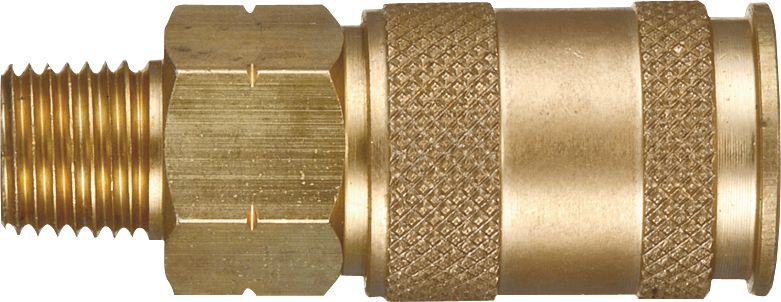

Heavy-Duty Quick Disconnect Coupler, Brass, High Flow, Male NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
• Specially engineered to allow almost twice the air flow of comparably sized couplers
• One handed push-to-connect design for easy operation
• Couplers: All brass construction – manufactured using solid brass bar stock
• Couplers feature stainless steel balls, retaining rings and springs for corrosion resistance and to extend service life
• Plugs: All steel construction – manufactured using solid steel bar stock
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Maximum working pressure: 300 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 10-42
Frequently Bought Together
Quick Disconnect Coupler Steel 3/8" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Universal Air Coupler 1/4" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Instrumentation Elbow 90° 3/8" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Ergonomic Blow Gun Rubber Tip
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Product Description
• Specially engineered to allow almost twice the air flow of comparably sized couplers• One handed push-to-connect design for easy operation
• Couplers: All brass construction – manufactured using solid brass bar stock
• Couplers feature stainless steel balls, retaining rings and springs for corrosion resistance and to extend service life
• Plugs: All steel construction – manufactured using solid steel bar stock
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Maximum working pressure: 300 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Technical Specifications
| Item#: | KT15119 |
|---|---|
| Description | Heavy-Duty Quick Disconnect |
| Type | Coupler |
| Style | High Flow |
| Body Size | 1/4 " |
| Thread Style | Male NPT |
| Thread Size | 1/4-18 |
| Material | Brass |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
