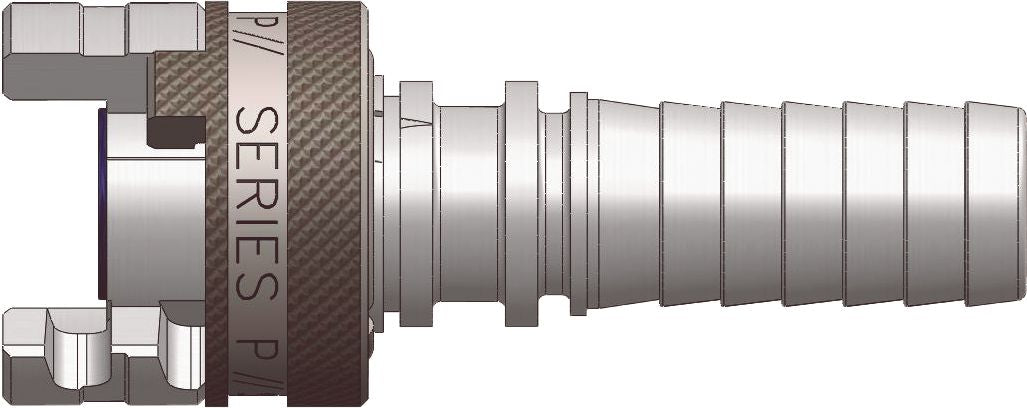

Quick Disconnect Coupler Steel 1/2 x 1/2"
(Pack of
1.0)
Interlocking finger connection with single or dual locking sleeves for maximum security. “Push-Twist and Click” connection provides a positive lock when connected. Used for air, water and nitrogen. Used by refineries. OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories.
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific recommendations on individual hose pages)
• Operating Pressure: 300 PSI
• Coupled Burst Pressure: 4,800 PSI
• Flow: 250 CFM
• Locking Mechanism: Latch fingers
• Dixon P-Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Stainless Steel Standard Industrial Safety Push-Button Safety Coupler 1/2" Body x 3/8" FNPT
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
Couldn't load pickup availability
High Flow Safety Push-Button Safety Coupler 3/8" Body x 1/4" MNPT
Couldn't load pickup availability
Hose Barb Brass 5/16" x 1/4-18
Couldn't load pickup availability
Combination Nipple Steel 3/4-14 x 3/4"
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/8-27
Couldn't load pickup availability
DOT Compression Elbow Male 45° Brass 3/8 x 1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Vacuum Hose Connector 1/8 x 1/8"
Couldn't load pickup availability
Barb-Lok Hose End 1/4" (-4) x 5/8-18 (-6)
Couldn't load pickup availability
Barb-Lok Hose End 5/8" (-10) x 3/8-18 (-6)
Couldn't load pickup availability
Barb-Lok Hose End 1/4" (-4) x 3/8-18 (-6)
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Product Description
Interlocking finger connection with single or dual locking sleeves for maximum security. “Push-Twist and Click” connection provides a positive lock when connected. Used for air, water and nitrogen. Used by refineries. OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories.• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific recommendations on individual hose pages)
• Operating Pressure: 300 PSI
• Coupled Burst Pressure: 4,800 PSI
• Flow: 250 CFM
• Locking Mechanism: Latch fingers
• Dixon P-Series
Technical Specifications
| Item#: | 20938 |
|---|---|
| Description | Industrial Quick Disconnect |
| Type | Coupler |
| Style | Thor |
| Body Size | 1/2 " |
| Thread Style | Barb |
| Working Pressure | 300 PSI |
| Material | Steel |
| Hose I.D. | 1/2 " |
| Length | 3.95 " |
| Seal Material | Nitrile (Buna-N) |
| Dixon Number | 4PS4 |
| Hose Barb Size | 1/2 " |
| Locking Mechanism | Latch Fingers |
| Flow | 255 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.55 lb |
