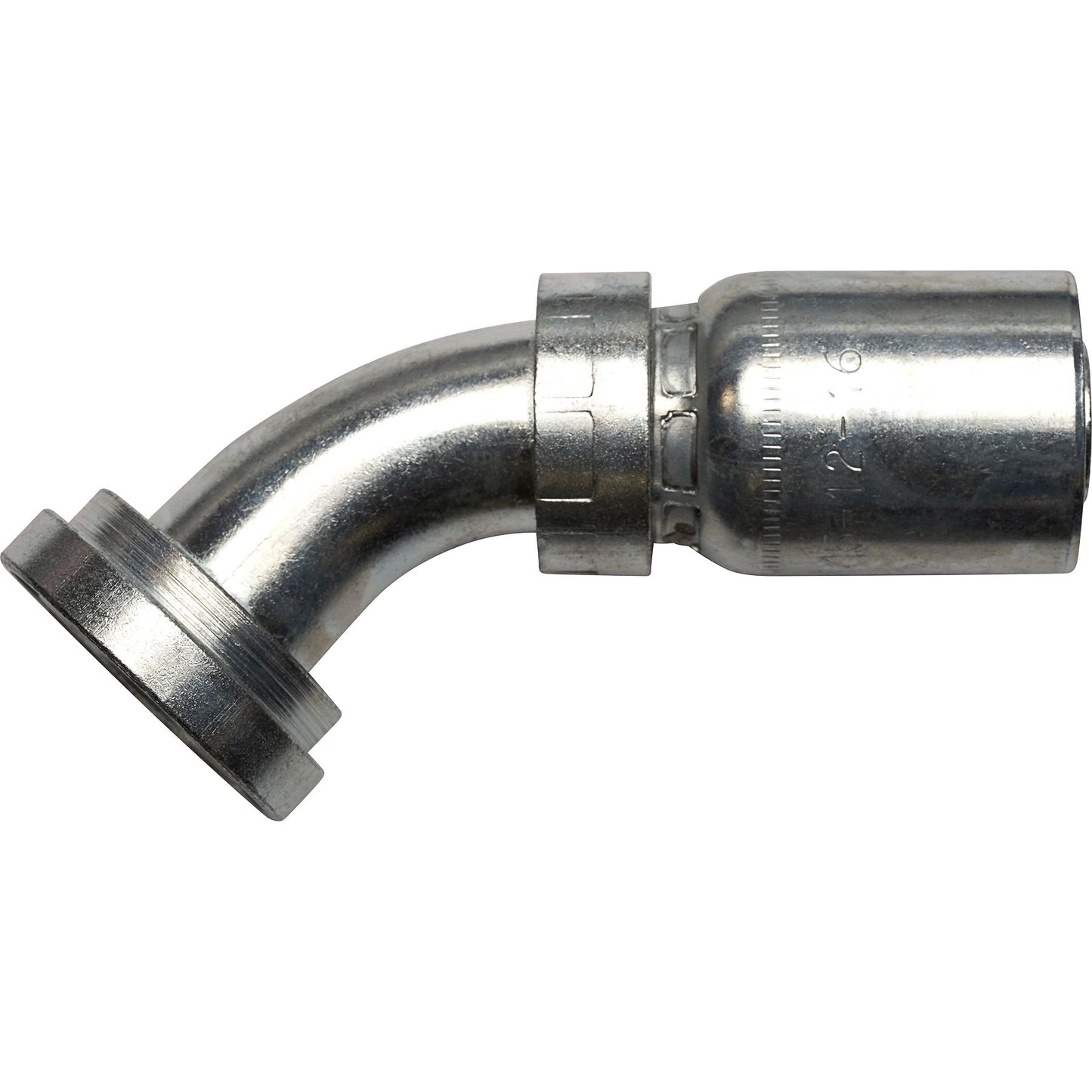

Split Flange Split Flange Code 61 45° 3/4 (-12)x 1.75 (-16) Crimp-on End Fitting
(Pack of
1)
SKU:1562121 Item#: 1562121
SAE Code 61 Flange Kits sold separately
These fittings are designed to be crimped with Kurt 100R2S and 100R16S hoses
Frequently Bought Together
Radiator Grille Nut M4.2-1.41
Item#: 1513544
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Item#: P53958
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
Item#: KT12847
$0.00
Couldn't load pickup availability
Product Description
SAE Code 61 Flange Kits sold separatelyThese fittings are designed to be crimped with Kurt 100R2S and 100R16S hoses
Technical Specifications
| Item#: | 1562121 |
|---|---|
| Manufacturer Model #: | C6145-12-16 |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 45 Degrees |
| Fitting Dimension B (Working End) | 1.75 (-16) |
| Flange Diameter | 1.75 |
| Flange Size | 1 |
| Size | (-12)X(-16) |
| Hex Size | 0.315 |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.72 lb |
