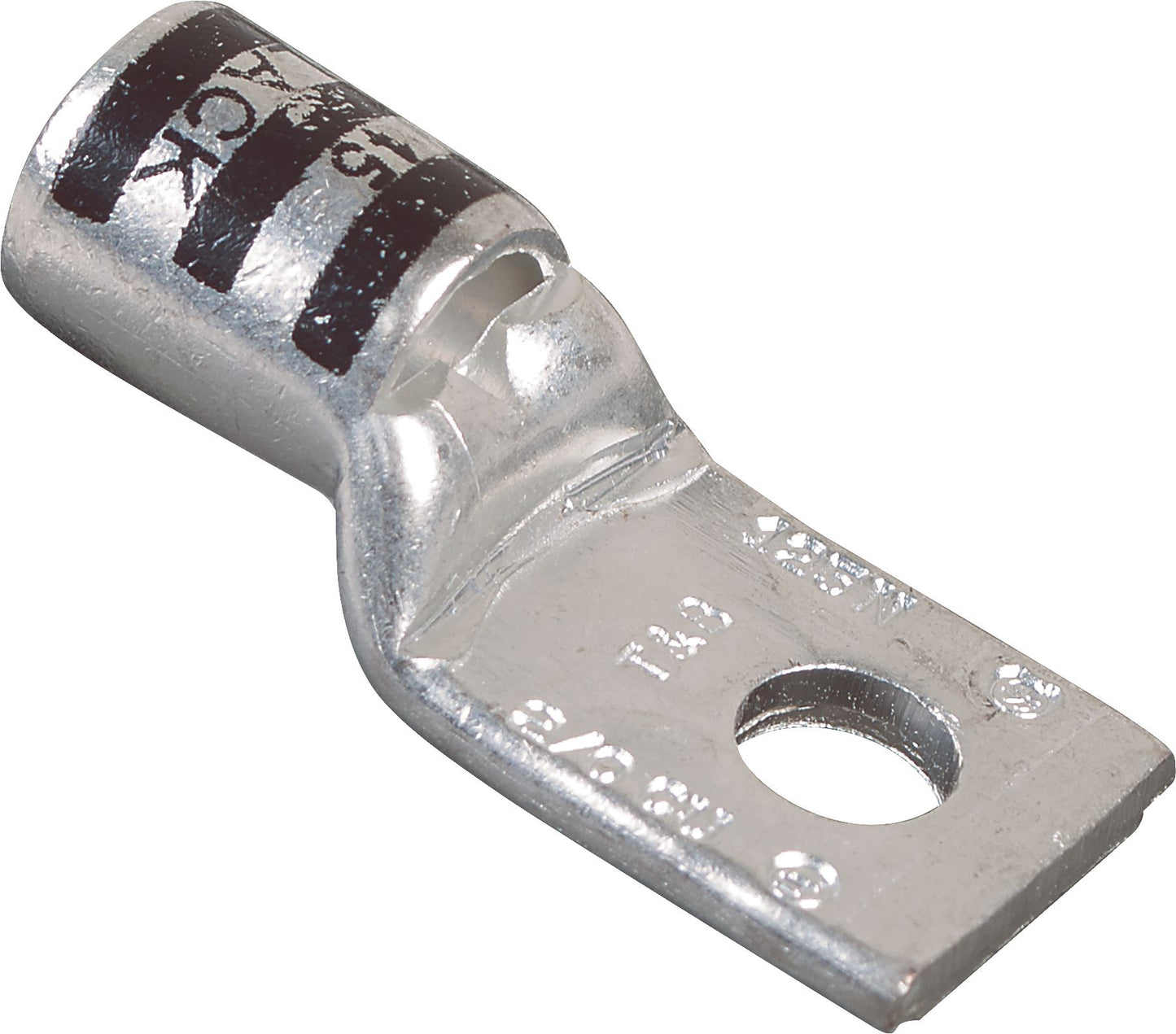

Standard One-Hole Lug, 2/0 AWG, Black, 3/8" Stud Size
(Pack of
6)
SKU:89506 Item#: 89506
• Extruded tubular copper for extremely high electrical conductivity
• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Frequently Bought Together
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Standard Barrel 2-Way Connector 8 AWG
$0.00
Couldn't load pickup availability
Standard One-Hole Lug 2 AWG Brown
$0.00
Couldn't load pickup availability
Long Barrel Compression 2-Way Connector 6 AWG
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Step-Down Butt Connector 16 to 14/22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Male Disconnect Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Female Disconnect Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Product Description
• Extruded tubular copper for extremely high electrical conductivity• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Technical Specifications
| Item#: | 89506 |
|---|---|
| Type | One-Hole Lug |
| Wire Gauge | 2/0 AWG |
| Size Navy | 125 |
| Size Weld | 1/0 |
| Stud Bolt Size NEMA Drilling | 3/8 " |
| Color | Black |
| Installation Tool 86473 (No. of Crimps Required) | 2 |
| Installation Tool 89555 (No. of Crimps Required) | 2 |
| Style | Color-Coded |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.37 lb |
