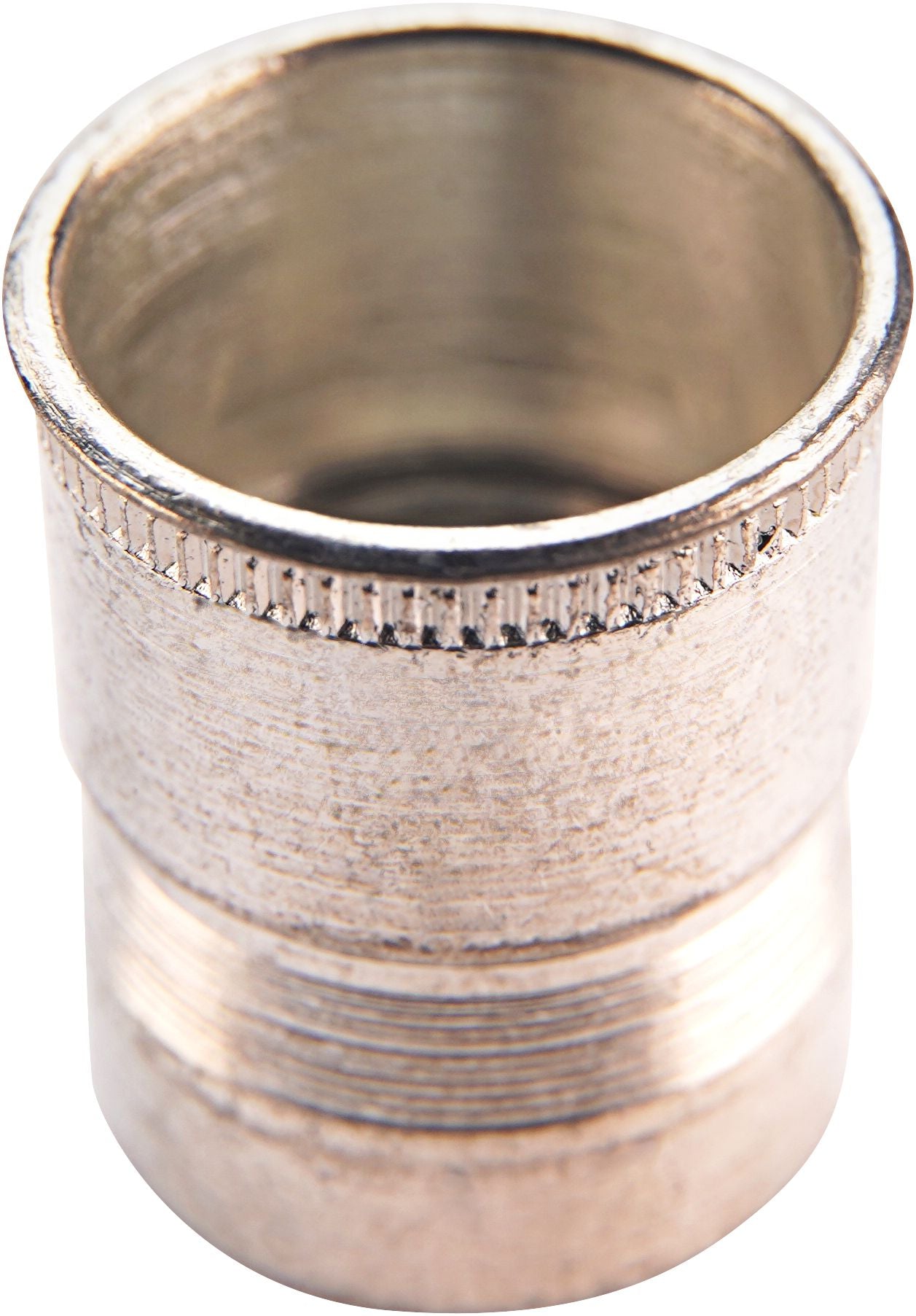

Standard Threaded Insert, Steel, Cadmium Finish, Knurled, Small Flange, Coarse Thread, 3/8-16, 0.745" Length, 0.5625" Hole
(Pack of
25)
SKU:81207 Item#: 81207
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• Tin-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-94
Frequently Bought Together
Open End Rivet Dome Head Aluminum 5/32"
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
3/8-16x3/4 Blind Cert
$0.00
Couldn't load pickup availability
Threaded Insert for Soft Material #6-32
$0.00
Couldn't load pickup availability
Threaded Insert for Soft Material 1/4-20
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert M5-0.8
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert M4-0.7
$0.00
Couldn't load pickup availability
Standard Threaded Insert 1/4-20
$0.00
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• Tin-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 81207 |
|---|---|
| Diameter | 3/8 " |
| Thread Pitch | 16 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 0.5625 " |
| Pilot Drill Size | 9/16 " |
| Pilot Drill Number | 9740 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.588 " |
| Body Diameter | 0.5615 " |
| Length | 0.745 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.47 lb |
