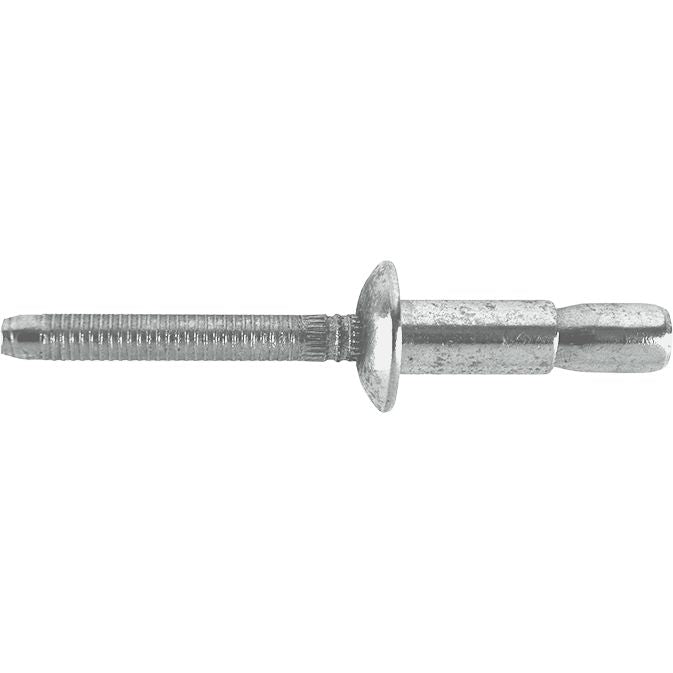

Structural Rivet, Internal Lock, Dome Head, Stainless Steel, 1/4" Diameter, 0.08 to 0.625" Grip Range, 0.81" Body Length
(Pack of
500)
SKU:1557950 Item#: 1557950
Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-120
Frequently Bought Together
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
$0.00
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 35mm
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
$0.00
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 3/16"
$0.00
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 1/4"
$0.00
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 1557950 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body / Mandrel | Stainless Steel/Stainless Steel |
| Diameter | 1/4 " |
| Grip Range | 0.080 – 0.625 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.525 " |
| Head Height | 0.117 " |
| Body Length | 0.810 " |
| Shear Strength | 2,400 lb |
| Tensile Strength | 1,850 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 11.0 lb |
