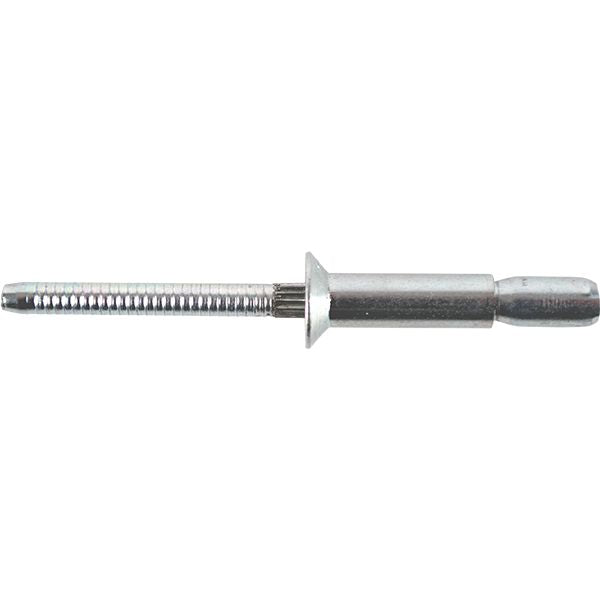

Structural Rivet, Internal Lock, 100° Countersunk Head, Steel, 1/4" Diameter, 0.16 to 0.475" Grip Range, 0.66" Body Length
(Pack of
50)
100° Countersunk Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Ideal for applications where a flush appearance is required
• Standard nosepieces can be used to install Internal Locking Structural Rivets
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-119
Frequently Bought Together
Hex Nut Grade 8 Steel M6-1
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
Couldn't load pickup availability
Replacement Jaw Set for 51898 Rivet Tool
Couldn't load pickup availability
Pull Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 1/8"
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
Front License Plate to Bumper Cover Split Rivet
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 3/16"
Couldn't load pickup availability
StemLock® Rear-Flange Structural Rivet Steel 1/4"
Couldn't load pickup availability
Product Description
100° Countersunk Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Ideal for applications where a flush appearance is required
• Standard nosepieces can be used to install Internal Locking Structural Rivets
Technical Specifications
| Item#: | 1543656 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | 100° Countersunk Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.160 – 0.475 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.405 " |
| Head Height | 0.070 " |
| Body Length | 0.660 " |
| Shear Strength | 2,400 lb |
| Tensile Strength | 1,850 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.875 lb |
