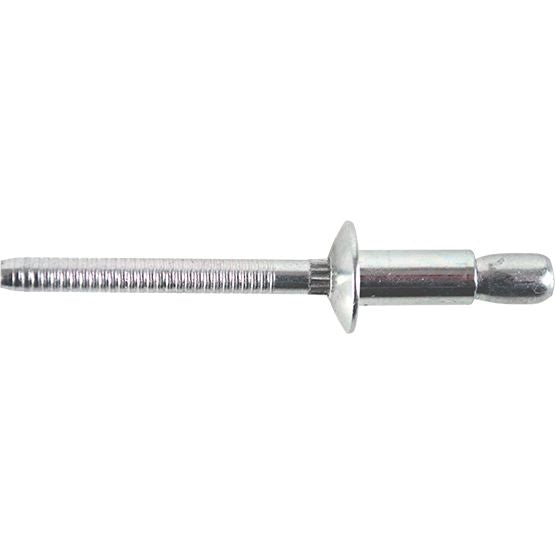

Structural Rivet, Internal Lock, Dome Head, Steel, 3/16" Diameter, 0.062 to 0.437" Grip Range, 0.572" Body Length
(Pack of
500)
Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-119
Frequently Bought Together
Serrated Hex Flange Nut Alloy Steel M6-1
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 25mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Acrysol Paint Preparation and Auto Body Solvent
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock SS 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 1543647 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.437 " |
| Hole Size | 0.194 – 0.204 " |
| Drill Size | #10 |
| Head Diameter | 0.375 " |
| Head Height | 0.085 " |
| Body Length | 0.572 " |
| Shear Strength | 1,300 lb |
| Tensile Strength | 1,000 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 5.0 lb |
