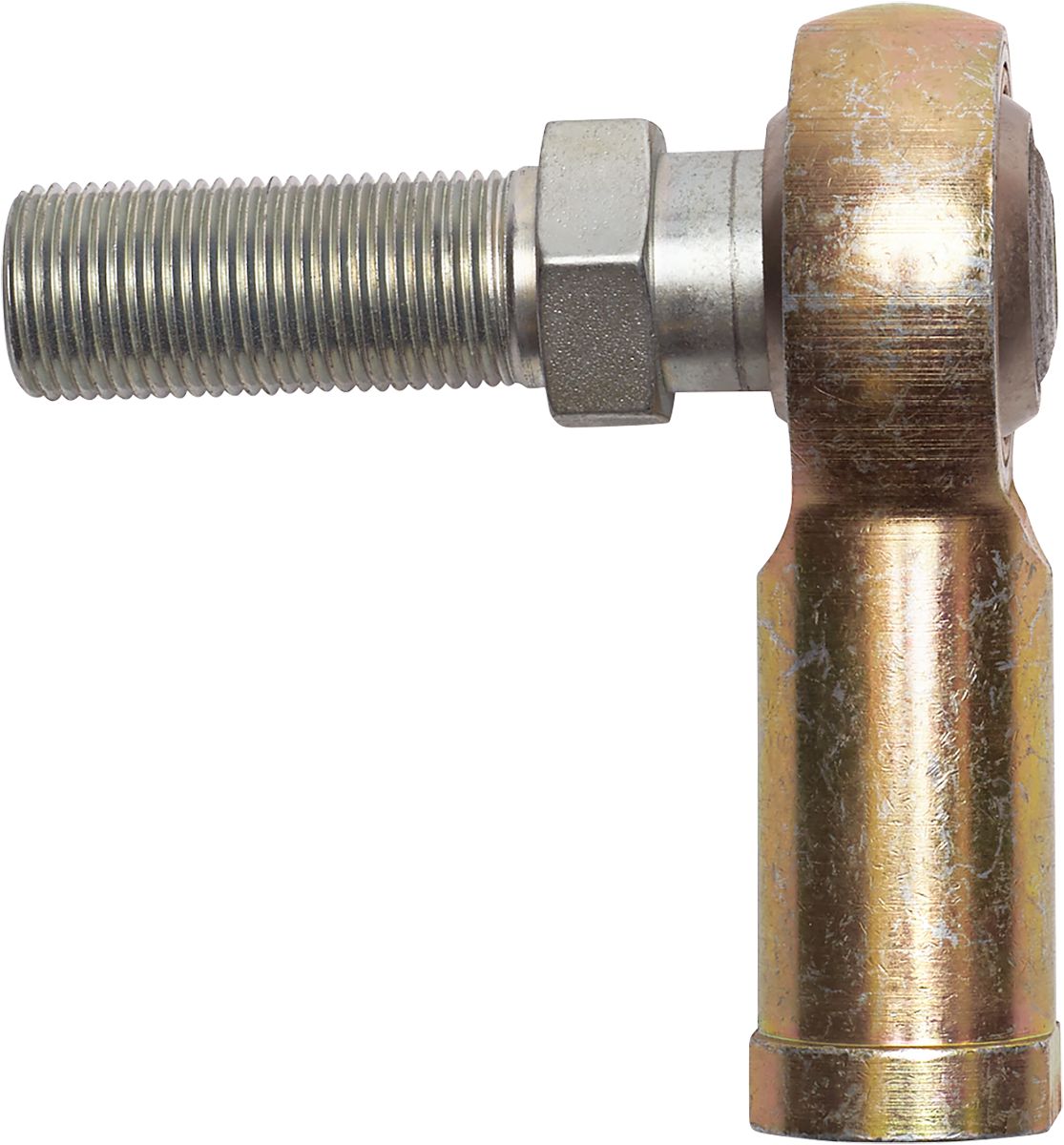

Throttle Ball Joint with Spherical Bearing - Female Rod End with Stud, 7/16-20 Female and Stud Threads, Left Hand Threads
(Pack of
1)
SKU:60013 Item#: 60013
• Available in both right and left hand threads (studs are right hand threads)
• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• Allows a 50° misalignment in any direction
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Frequently Bought Together
Fender Splash Shield Retainer Nylon 20mm
Item#: P53958
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
Item#: KT12847
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Item#: P22266
$0.00
Couldn't load pickup availability
Product Description
• Available in both right and left hand threads (studs are right hand threads)• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• Allows a 50° misalignment in any direction
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Technical Specifications
| Item#: | 60013 |
|---|---|
| Length of Rod End to Center of Stud | 1.812 " |
| Stud Length | .938 " |
| Stud Length to Center of Rod End | 1.968 " |
| Female Thread | 7/16-20 |
| Static Load Rating | 1,800 lb |
| Female and Stud Threads | 7/16-20 |
| Stud Thread | 7/16-20 " |
| Thread | Left Hand Threads |
| Plating | Yes |
| A | .938 " |
| B | 1.968 " |
| C | 1.812 " |
| UNSPSC #: | 25172405 |
| TAA Compliant: | Yes |
| Weight: | 0.32 lb |
