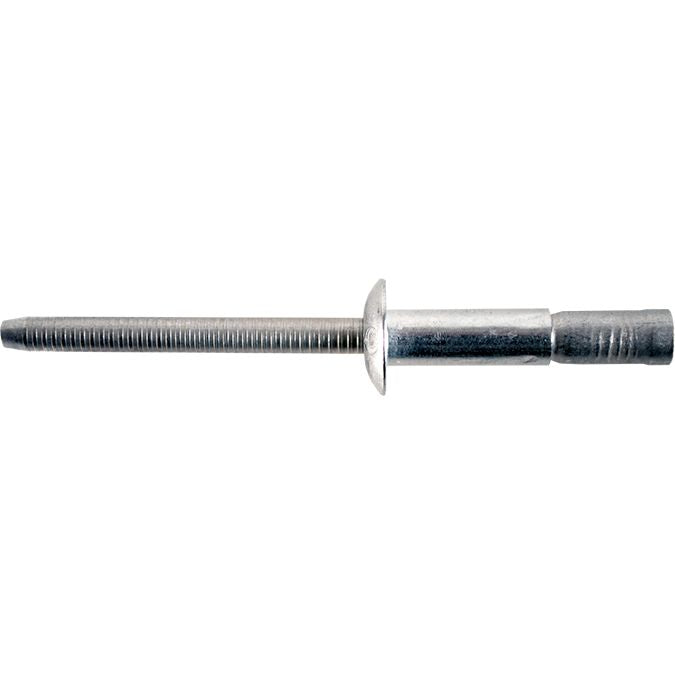

Tigerbolt® Structural Rivet, External Lock, Dome Head, Aluminum, 3/16" Diameter, 0.062 to 0.437" Grip Range, 0.577" Body Length
(Pack of
500)
Dome Head
• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-120
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 50mm
Couldn't load pickup availability
Acorn Nut A2 Stainless Steel M6-1
Couldn't load pickup availability
Hex Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 1/4"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Product Description
Dome Head• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Technical Specifications
| Item#: | 1557937 |
|---|---|
| Type | Structural – External Lock |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.437 " |
| Hole Size | 0.194 – 0.204 " |
| Drill Size | #10 |
| Head Diameter | 0.400 " |
| Head Height | 0.090 " |
| Body Length | 0.577 " |
| Shear Strength | 674 lb |
| Tensile Strength | 495 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.8298 lb |
