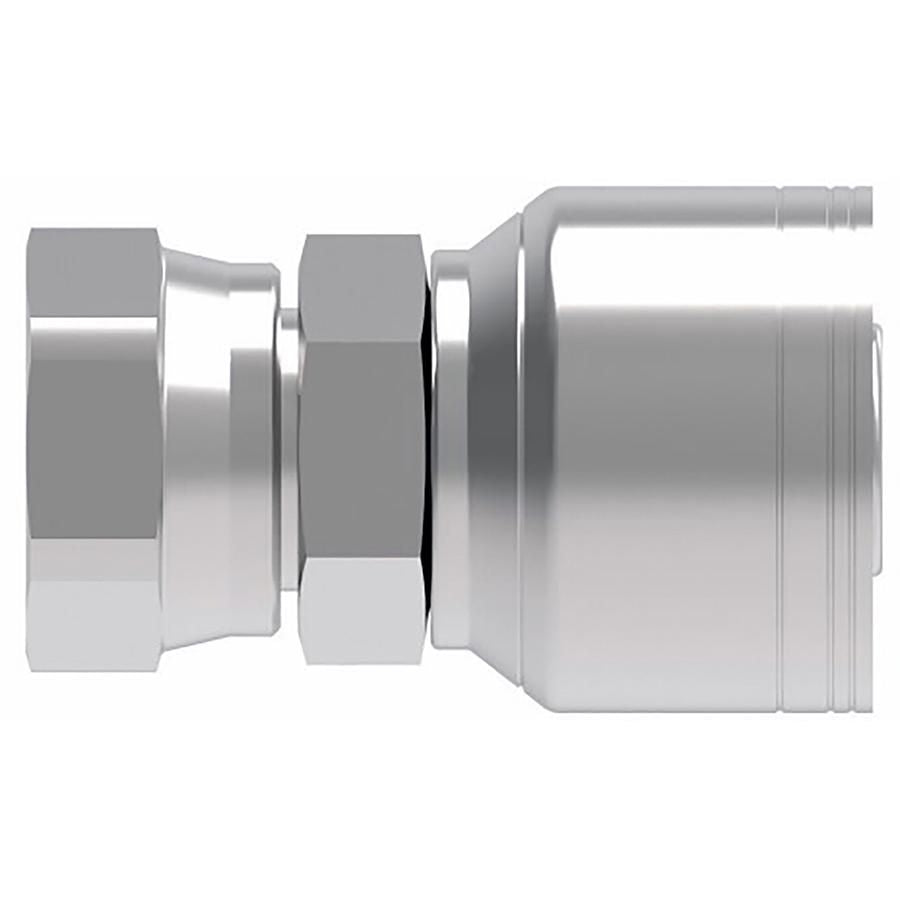

U Series Female BSPP Flat Seat - British Standard Pipe Parallel Flat Seat Straight 1/2 (-8)x G-1/2-14(-8) Crimp-on End Fitting
(Pack of
2)
SKU:22904 Item#: 22904
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
G as part of thread size is ISO designation for parallel thread.
Frequently Bought Together
Fender Splash Shield Retainer Nylon 20mm
Item#: P53958
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
Item#: KT12847
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Item#: P22266
$0.00
Couldn't load pickup availability
Product Description
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.G as part of thread size is ISO designation for parallel thread.
Technical Specifications
| Item#: | 22904 |
|---|---|
| Manufacturer Model #: | 08U-08P |
| Manufacturer Series Number | U Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1/2 (-8) " |
| Dash Size | -8 |
| Gender | Female |
| Fitting End Style | BSPP Flat Seat - British Standard Pipe Parallel Flat Seat |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | G-1/2-14 (-8) |
| Eaton Number | 08U-08P |
| Connection Type A x B | Hose x |
| O.D. Tube Size | 1/2 |
| Size | (-8)X(-8) |
| Hex Size | 1-1/16 " |
| Material | Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
