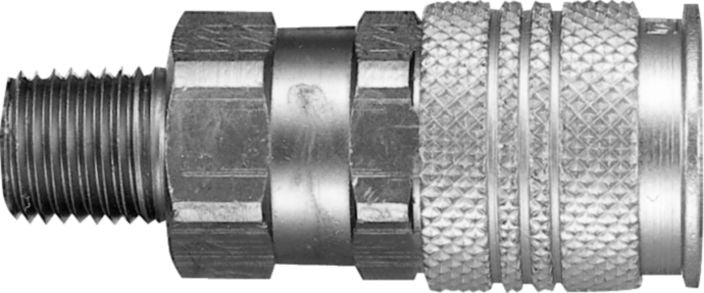

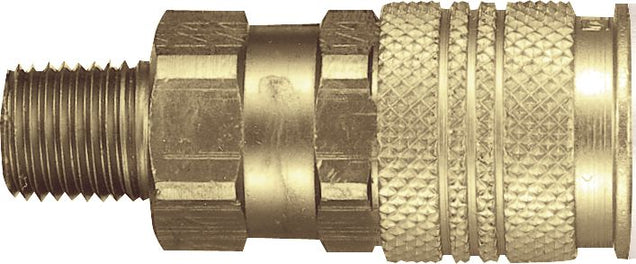

Universal Air Coupler, Brass, 125PSI, Male NPTF, 3/8" Body Size, 3/8-18 Thread Size
(Pack of
1)
Universal Air Couplers accept Tru-Flate, ARO and Industrial Interchange (standard) plugs. Choose them for applications where universality and automatic push-to-connect simplicity are key considerations. A full flow feature allows greater air flow at lower pressure than conventional couplers.
• Brass body, brass knurled sleeve
• Precision seals and valve seats assure airtight operation
• Working pressure: 125 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Couplers will mate with the following plugs:
11915
11916
11942
11943
11950
11951
27172
27173
29026
29031
29032
29033
29034
54544
Will not mate with Lincoln-style plug
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 10-37
Frequently Bought Together
Quick Disconnect Coupler Steel 1/2 x 1/2"
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 3/8-18
Couldn't load pickup availability
Bowes Quick Disconnect Nipple Steel 1/2" x 1/2-14
Couldn't load pickup availability
Air Hose Ferrule Brass 5/8"
Couldn't load pickup availability
Hose Nipple Steel 1/4" x 1/4-18
Couldn't load pickup availability
Iron Interlocking Hose Insert 2" x 2-11-1/2
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Universal Vacuum Hose Connector 3/16"
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
BPN32
Couldn't load pickup availability
BPN252
Couldn't load pickup availability
Barb-Lok Hose End 5/8" (-10) x 7/8-14 (-10)
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Shroud Insulating Button Nylon 11/16"
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
Universal Air Couplers accept Tru-Flate, ARO and Industrial Interchange (standard) plugs. Choose them for applications where universality and automatic push-to-connect simplicity are key considerations. A full flow feature allows greater air flow at lower pressure than conventional couplers.• Brass body, brass knurled sleeve
• Precision seals and valve seats assure airtight operation
• Working pressure: 125 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Couplers will mate with the following plugs:
11915
11916
11942
11943
11950
11951
27172
27173
29026
29031
29032
29033
29034
54544
Will not mate with Lincoln-style plug
Technical Specifications
| Item#: | KT15122 |
|---|---|
| Description | Universal |
| Type | Coupler |
| Style | Universal |
| Body Size | 3/8 " |
| Thread Style | Male NPTF |
| Thread Size | 3/8-18 |
| Working Pressure | 125 PSI |
| Material | Brass |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
| Weight: | 0.31 lb |
