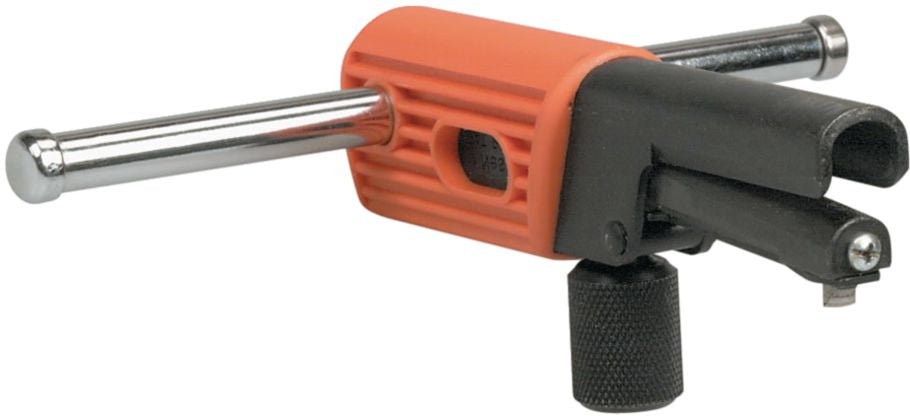

Universal Internal Thread Repair, High Speed Steel, Quickly Adjustable to Any Thread Diameter and Pitch, 1-1/4 to 2-1/8"
(Pack of
1)
SKU:28755 Item#: 28755
• Quickly adjustable to any thread diameter and pitch within the size range indicated on tool
• The blade, made of Rc 62 high-speed steel, is guided by the existing undamaged thread to regroove the damaged section
• All tools come supplied with standard blades
• An advantage over taps is the ability to enter below the first damaged grooves – often at the start of the thread – and work in an outward direction
Applicable to most kinds of thread – inch, metric, right hand, left hand, fine or coarse.
Recommended for large internal threads in:
• Oil and gas production and pipelines
• Mining industry
• Large truck and heavy soil moving equipment
• Large production machinery

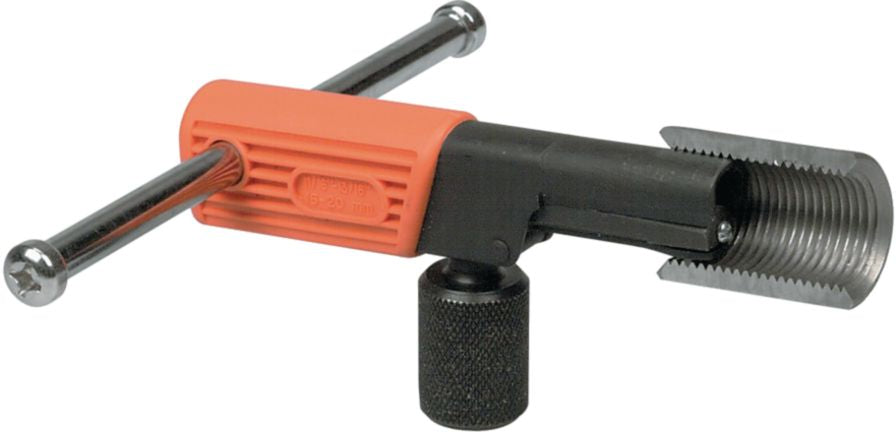

Turn knurled knob to fully retract the blade into the housing. Insert tool into the threaded hole or bore to be repaired. Turn knurled knob to extend blade into a thread groove on an undamaged section and tighten by hand only. Rotate tool by the cross-rod in the desired direction.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Fire and Rescue Reciprocating Blade 6"
$0.00
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
$0.00
Couldn't load pickup availability
Reinforced Mini Cut-Off Wheel 3"
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Broken Bolt Power Extractor Kit 4Pcs
$0.00
Couldn't load pickup availability
Rethreading Die M12 x 1.75
$0.00
Couldn't load pickup availability
Screw and Bolt Extractor kit 10Pcs
$0.00
Couldn't load pickup availability
Rethreading Die 9/16-18
$0.00
Couldn't load pickup availability
Rethreading Tap 9/16-12
$0.00
Couldn't load pickup availability
Rethreading Tap 1/2-13
$0.00
Couldn't load pickup availability
Razor Blade Single Edge w/Notch
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank
$0.00
Couldn't load pickup availability
Product Description
• Quickly adjustable to any thread diameter and pitch within the size range indicated on tool• The blade, made of Rc 62 high-speed steel, is guided by the existing undamaged thread to regroove the damaged section
• All tools come supplied with standard blades
• An advantage over taps is the ability to enter below the first damaged grooves – often at the start of the thread – and work in an outward direction
Applicable to most kinds of thread – inch, metric, right hand, left hand, fine or coarse.
Recommended for large internal threads in:
• Oil and gas production and pipelines
• Mining industry
• Large truck and heavy soil moving equipment
• Large production machinery
Turn knurled knob to fully retract the blade into the housing. Insert tool into the threaded hole or bore to be repaired. Turn knurled knob to extend blade into a thread groove on an undamaged section and tighten by hand only. Rotate tool by the cross-rod in the desired direction.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 28755 |
|---|---|
| Manufacturer Model #: | Nes 25 |
| Style | Restorer |
| Diameter | 1-1/4 - 2-1/8 " |
| Thread | Internal |
| Pipe Size | 7/8 - 1-3/4 " |
| UNSPSC #: | 27112806 |
| TAA Compliant: | Yes |
| Weight: | 2.09 lb |
