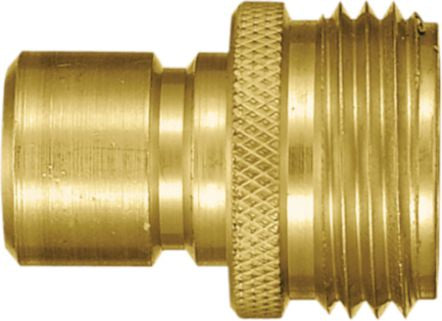

Water Line Coupling Nipple, Brass, 3/4", Male Garden Hose Thread x Quick Disconnect
(Pack of
2)
SKU:98955 Item#: 98955
Connects water lines with one quick snap. No more threading on nozzle, sprayers or other equipment. For low pressure water service only. Non-valved coupler design permits maximum flow and minimum pressure drop. Valved coupler design shuts off flow when nipple is disconnected (no need to shut off water at source). Durable ball-locking mechanism secures connection.
• Not to exceed 200 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Water Line Couplings are easy to use1. Thread coupler to faucet or to a male hose end. Thread nipple to female hose end.2. To connect, pull back sleeve on coupler, insert nipple and release the sleeve.3. To disconnect, retract sleeve on coupler and pull out nipple.
For use with valved or non-valved couplers
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Garden Hose End Brass 5/8" x 3/4-11-1/2
$0.00
Couldn't load pickup availability
Hose Barb Brass 5/16" x 1/4-18
$0.00
Couldn't load pickup availability
Humpback Reel Accessories - Spray Tip Nozzle 15°
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Blow Gun with High Flow Tip
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Humpback Reel Accessories - Foam Cannon
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Product Description
Connects water lines with one quick snap. No more threading on nozzle, sprayers or other equipment. For low pressure water service only. Non-valved coupler design permits maximum flow and minimum pressure drop. Valved coupler design shuts off flow when nipple is disconnected (no need to shut off water at source). Durable ball-locking mechanism secures connection.• Not to exceed 200 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Water Line Couplings are easy to use1. Thread coupler to faucet or to a male hose end. Thread nipple to female hose end.2. To connect, pull back sleeve on coupler, insert nipple and release the sleeve.3. To disconnect, retract sleeve on coupler and pull out nipple.
For use with valved or non-valved couplers
Technical Specifications
| Item#: | 98955 |
|---|---|
| Type | Nipple |
| Material | Brass |
| Fitting Dimension A | 3/4-11-1/2 |
| Fitting Dimension B | Quick Disconnect Nipple |
| Thread Style | Male GHT |
| Thread Size | 3/4" (GHT) " |
| Maximum Pressure | 200 PSI |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
