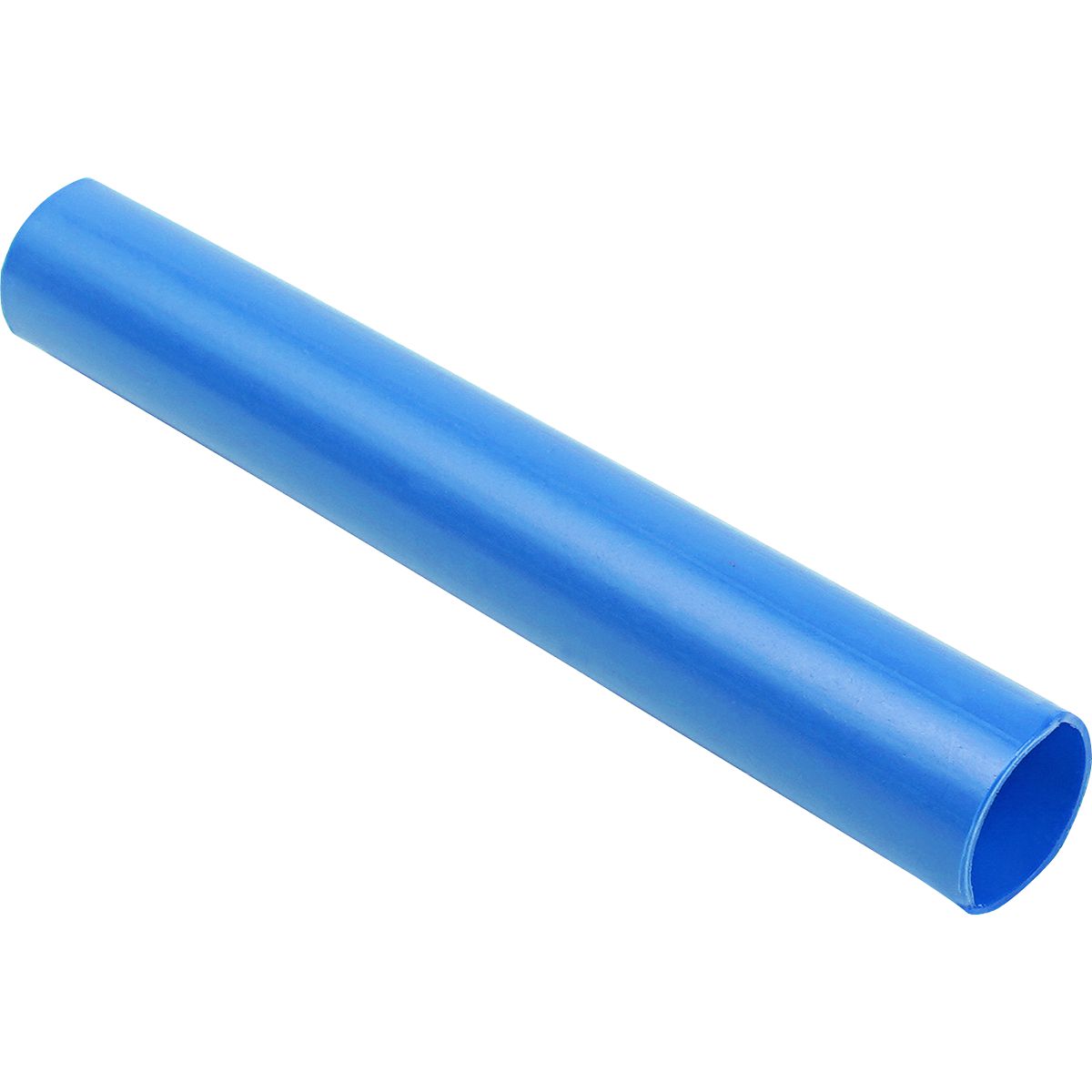

1/2 x 3" Blue Thermapod Sealflex Heat Shrink Tube
(Pack of
10)
SKU:DY21880010 Item#: DY21880010
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Butt Connector 22 to 24 AWG Clear
$0.00
Couldn't load pickup availability
Master Series Handheld Flashlight
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Clear
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 1 to 16/3 SJO AWG Clear
$0.00
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Red
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Rubber Grommet 5/8" ID
$0.00
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.75" ID 25'
$0.00
Couldn't load pickup availability
Split Wire Loom
$0.00
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21880010 |
|---|---|
| Style | Dual Wall |
| Wire Gauge Coverage | 6-4 AWG |
| Diameter | 1/2 " |
| Length | 3 " |
| Color | Blue |
| I.D. Before Shrinkage | 0.5 " |
| I.D. After Shrinkage | 0.195 |
| Dielectric Strength | 500 V/mm |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | AMS-DTL - 23053/4, CL-1, UL E194625 |
| Description | Thermapod Sealflex Heat Shrink Tubing 1/2 x 3 Blue |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.06 lb |
