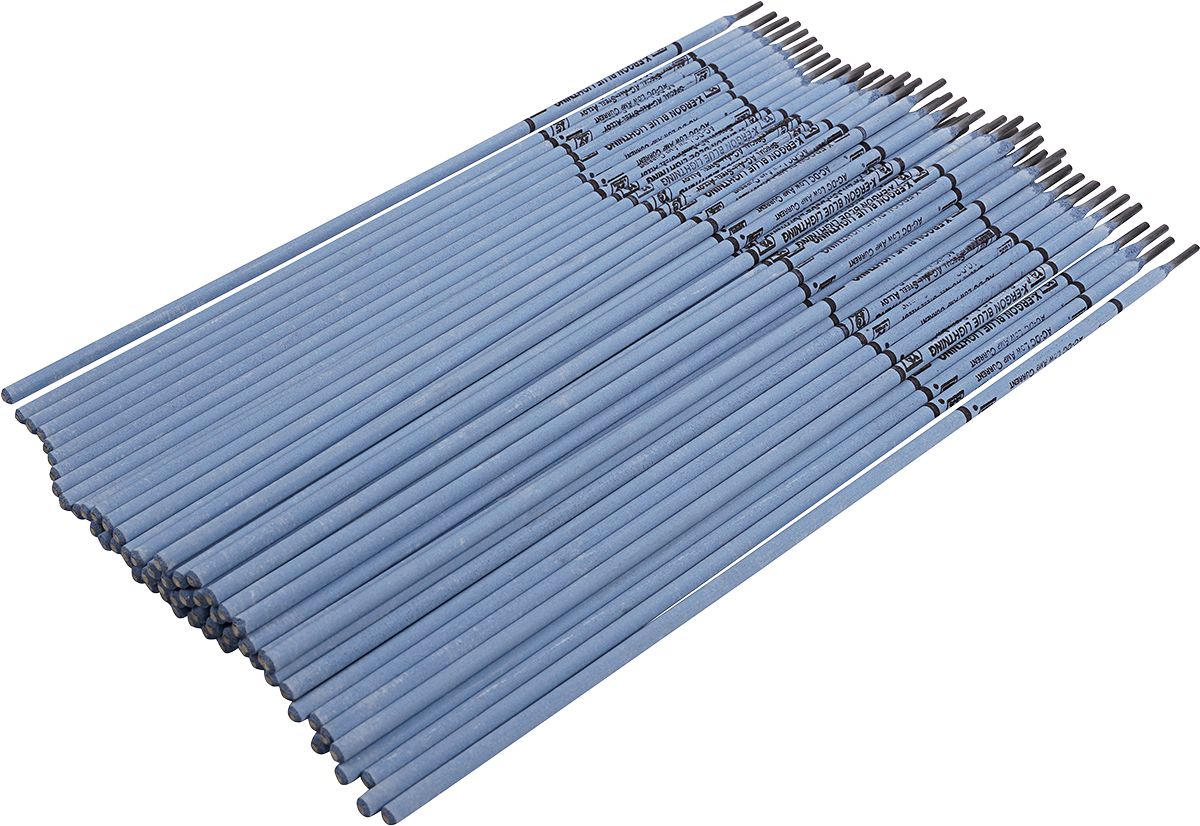

100 Blue Lightning Duplex For Disimilar Metals Tensile 89000 Work Harden To 122000 95Rb To 37Rc 42% Elongation Polarity Dcep/Ac
(Pack of 5)

SKU:EG10030000 Item#: EG10030000

Kent Automotive

A tough duplex alloy designed for dissimilar welding applications of ferrous metals (except cast iron).
• AC Welding – Special flux coating enhances operability on buzz boxes and DC inverter welders
• High Strength – Resistant to heat and corrosion, but still machinable
• High Elongation – Tough welds stand up to impact and shock
• Versatile – Welds steel, stainless steel, manganese steel, HY steels, alloy steels, tool steels and nickel alloys to steel and dissimilar combinations of these alloys
• All-position welding and easy slag removal
• Tensile strength: – As deposited: 95,000 PSI/655 MPa – Work Hardened: Up to 130,000 PSI/896 MPa
• Hardness: – As Deposited: 93 Rb – Work hardened: Up to 35 Rc
• Elongation: 30%
• Machinability: Excellent
• Heat Resistance: Good
• Corrosion Resistance: Good
• Current: DCEP (DC+) or AC

Check Availability

Quantity

Frequently Bought Together

601Xl Fc Multi Steel Flux Core Mig Wire .035X10LB

Item#: EG60140035

X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 5/32

Item#: EG00430000

707 Dissimilar Steel Stick Rod Electrode 5/32"

Fender Lining Screw Grommet Nylon #12

Push-Type Retainer Nylon 20mm

Front Rear Bumper Specialty Rivet 3.2mm

Wear Plates Used By Maintenance Welder

Item#: EG09903438

Light Weight Composite Wear Plates 24X4X13/64

Item#: EG09910424

Flat Soapstone 1/2"

1100 Gouging and Cutting Stick Rod Electrode 1/4"

889 Cast Iron Stick Rod Electrode 3/32"

889 Cast Iron Stick Rod Electrode 3/16"

Product Description

A tough duplex alloy designed for dissimilar welding applications of ferrous metals (except cast iron).
• AC Welding – Special flux coating enhances operability on buzz boxes and DC inverter welders
• High Strength – Resistant to heat and corrosion, but still machinable
• High Elongation – Tough welds stand up to impact and shock
• Versatile – Welds steel, stainless steel, manganese steel, HY steels, alloy steels, tool steels and nickel alloys to steel and dissimilar combinations of these alloys
• All-position welding and easy slag removal
• Tensile strength: – As deposited: 95,000 PSI/655 MPa – Work Hardened: Up to 130,000 PSI/896 MPa
• Hardness: – As Deposited: 93 Rb – Work hardened: Up to 35 Rc
• Elongation: 30%
• Machinability: Excellent
• Heat Resistance: Good
• Corrosion Resistance: Good
• Current: DCEP (DC+) or AC

Technical Specifications

Item#:	EG10030000
Welding Process	Stick
Type	Electrode
Diameter	5/32 "
Tensile Strength	130,000 PSI
Elongation	30 %
Hardness	35 HRC
Polarity	DCEP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.9 lb
