24' Fiberglass Extension Ladder with PROTOP™, 300lbs, Type IA
(Pack of
1)
SKU:1329412 Item#: 1329412
The ladders featuring PRO TOP are Louisville’s Type IA 300lbs Duty Rating Extension Ladders. They are equipped with the exclusive Rung Lock QUICKLATCH™, a quick and easy locking method for securing sections when the ladder is extended.
• PROTOP
• QuickLatch
• Steel Swivel Safety shoe with metal shield
• Outside Slide Guides
• D-Shaped Rungs

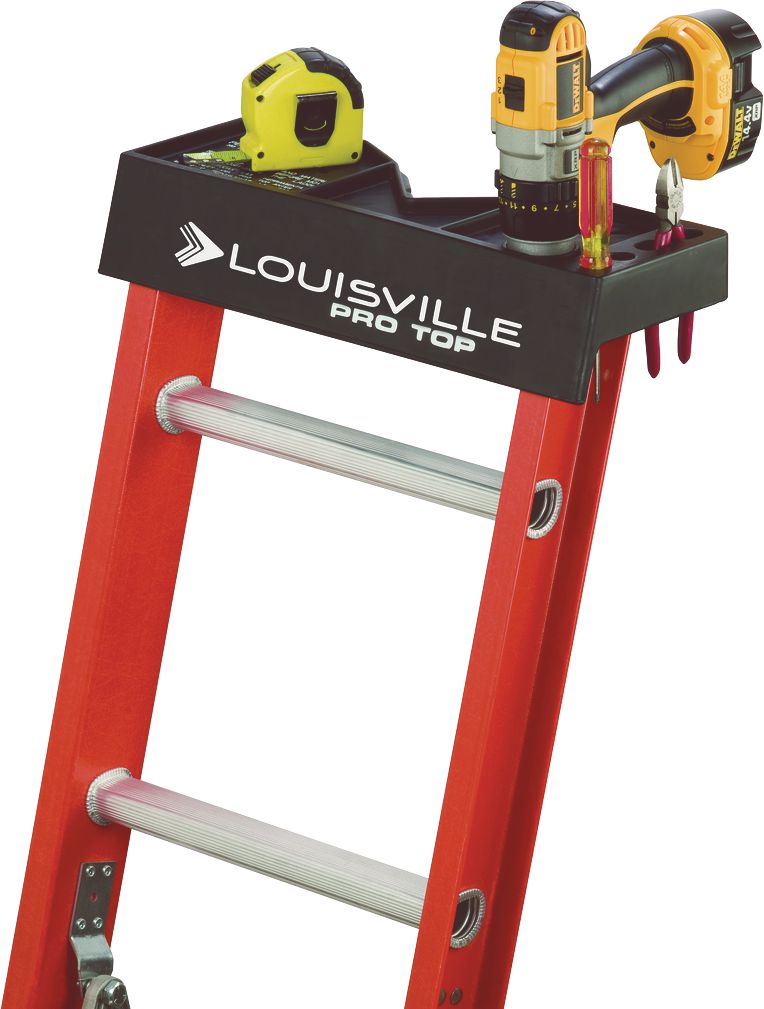

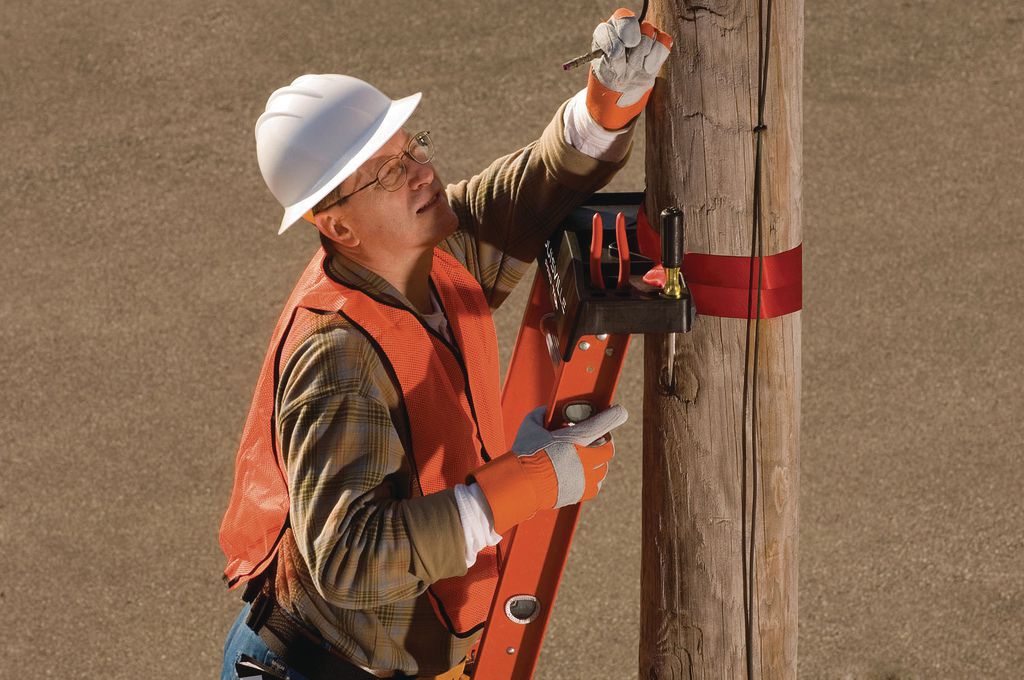

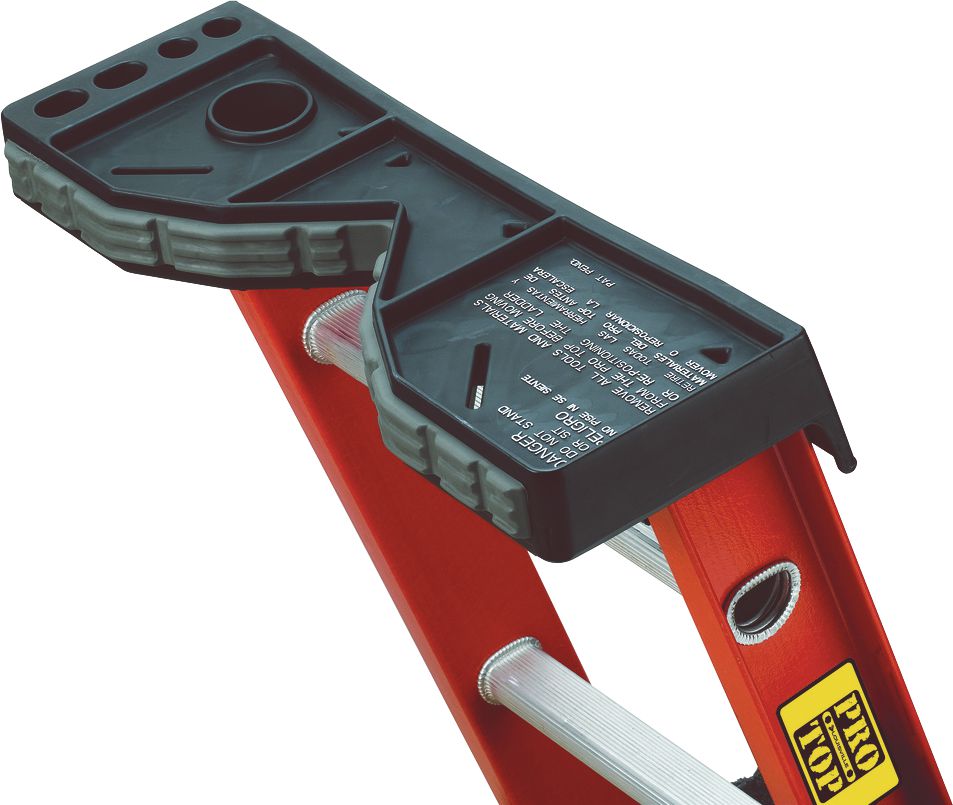

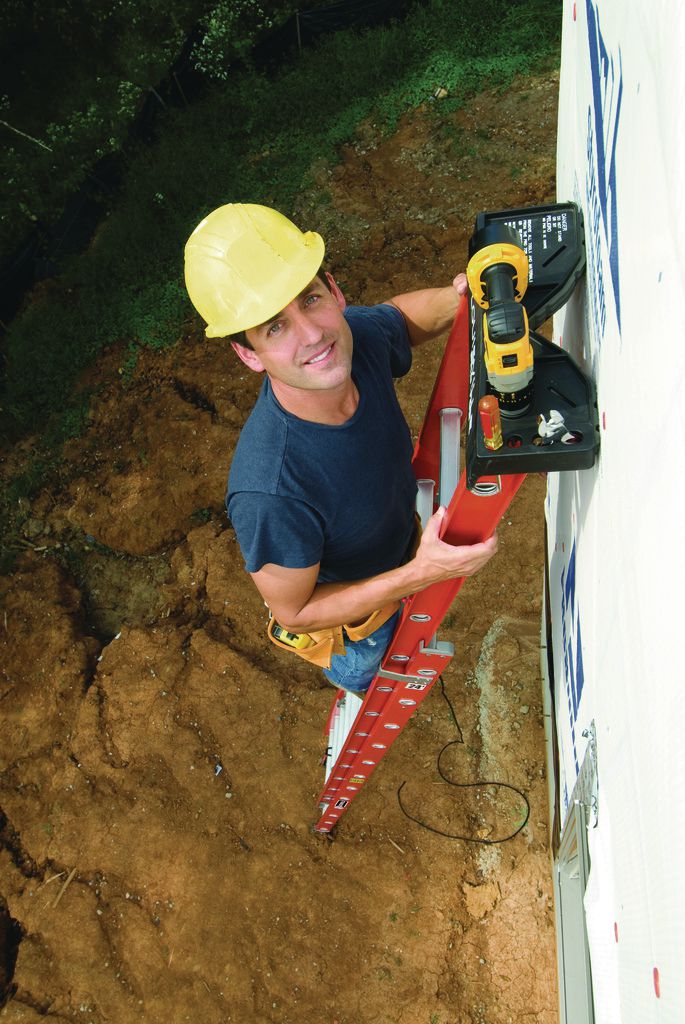

• Mar-Resistant rail end caps PROTOP Features Corner Grip: The V-shape design provides greater stability on corners Pole Grip: The V-shape design with rubber tread makes it ideal for working against poles or trees. The tool slots provide the option for lashing the ladder to the pole or tree. Integrated Bumper: Soft non-marring/non-marking rubber tread protects the work surface Work Tray: non-conductive molded work-tray with convenient handyman's tool slots.
• ANSI A 14.5
• OSHA
• CSA
Frequently Bought Together
20' Aluminum Extension Ladder, 300 lbs., Type IA
Couldn't load pickup availability
16' Aluminum Extension Ladder, 300 lbs., Type IA
Couldn't load pickup availability
28' Fiberglass Extension Ladder, 300 lbs., Type IA
Couldn't load pickup availability
20' Fiberglass Extension Ladder, 300 lbs., Type IA
Couldn't load pickup availability
20' Fiberglass Extension Ladder, 300 lbs., Type IA
Couldn't load pickup availability
32' Aluminum Extension Ladder, 300 lbs., Type IA
Couldn't load pickup availability

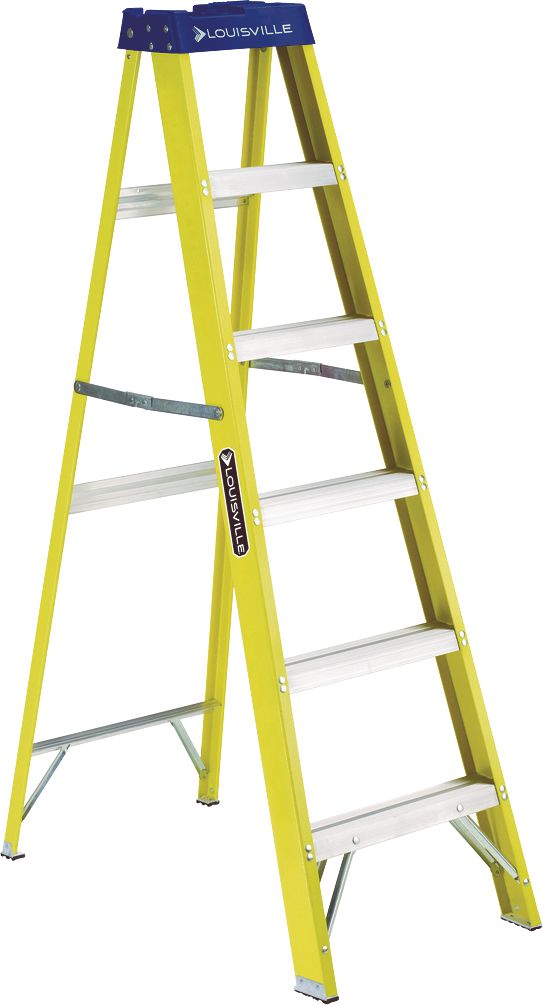

8' Fiberglass Stepladder, 300 lbs., Type IA
Couldn't load pickup availability
20' Fiberglass Extension Ladder, 300 lbs., Type IA
Couldn't load pickup availability
20' Fiberglass Extension Ladder, 300 lbs., Type IA
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 3/16", 4,200 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 3/32", 920 lbs Breaking Strength
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Product Description
The ladders featuring PRO TOP are Louisville’s Type IA 300lbs Duty Rating Extension Ladders. They are equipped with the exclusive Rung Lock QUICKLATCH™, a quick and easy locking method for securing sections when the ladder is extended.• PROTOP
• QuickLatch
• Steel Swivel Safety shoe with metal shield
• Outside Slide Guides
• D-Shaped Rungs
• Mar-Resistant rail end caps PROTOP Features Corner Grip: The V-shape design provides greater stability on corners Pole Grip: The V-shape design with rubber tread makes it ideal for working against poles or trees. The tool slots provide the option for lashing the ladder to the pole or tree. Integrated Bumper: Soft non-marring/non-marking rubber tread protects the work surface Work Tray: non-conductive molded work-tray with convenient handyman's tool slots.
• ANSI A 14.5
• OSHA
• CSA
Technical Specifications
| Item#: | 1329412 |
|---|---|
| Manufacturer Model #: | L-3022-24PT |
| Material | Fiberglass |
| Load Capacity | 300 lb |
| Duty Rating | IA |
| Ladder Size | 24 ft |
| Rung Style | D-Rung |
| Series | L-3022-PT |
| Length Each Section | 12 ft |
| Maximum Extension Length | 21 ft |
| Inside Width Base | 14.6875 " |
| Outside Width Base | 17.0625 " |
| Inside Width Fly | 13.6875 " |
| Outside Width Fly | 16.0625 " |
| Rail Depth | 3.25 " |
| Stack Height | 6.25 " |
| UPC | 728865101754 |
| UNSPSC #: | 30191501 |
| TAA Compliant: | Yes |
