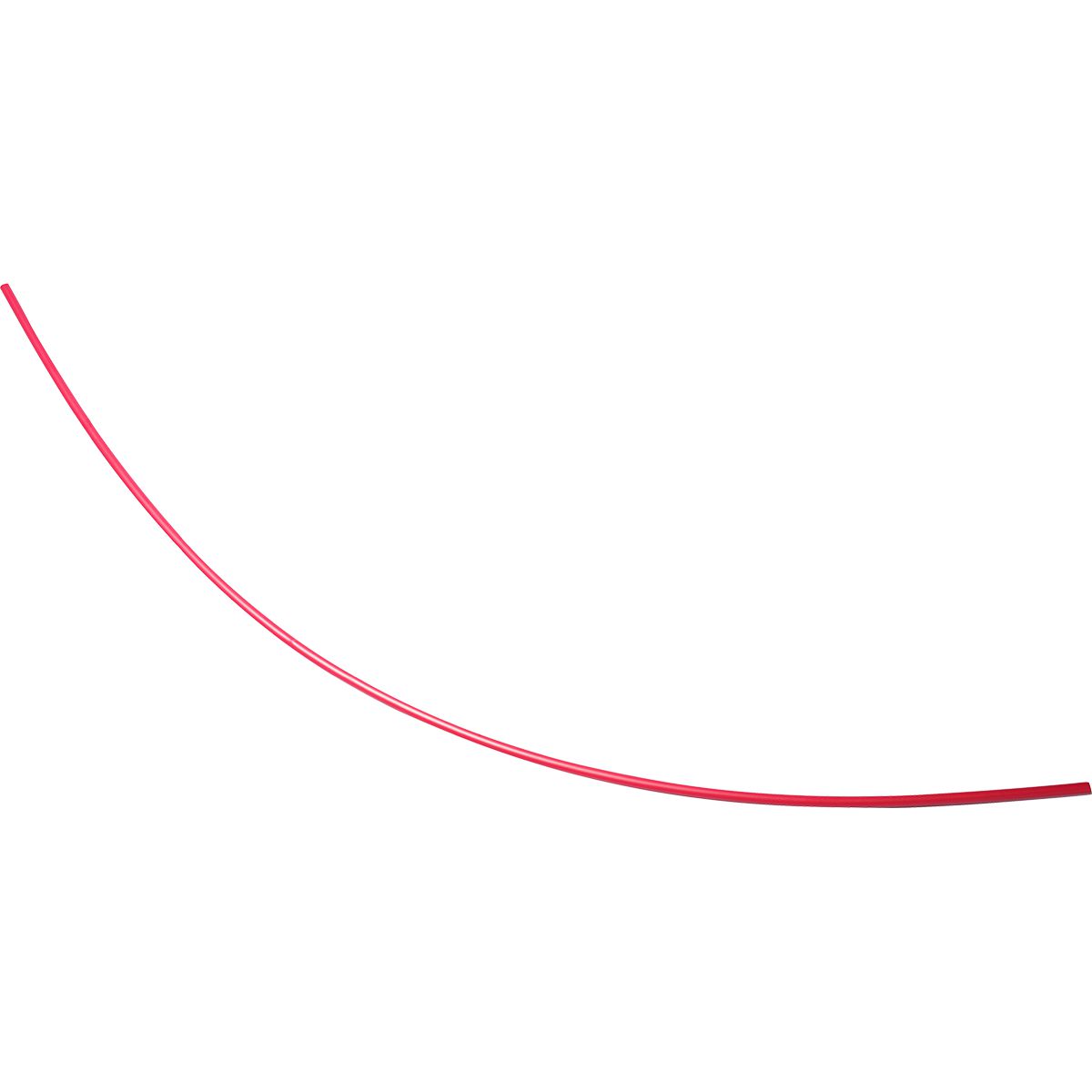

3/8 x 4" Red Thermapod Heat Shrink Tube
(Pack of
1)
SKU:DY21862153 Item#: DY21862153
Thermal Shrinkable Wire Protection
Double Layer . . . Double Protection
• Thermapod™ is an easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire. Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsuliation and strain damage from flexing
• Temperature Rating: -67°F to +230°F/ -55°C to +110°C
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
H7 Halogen Miniature Bulb 55W 12V
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Clear
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 4 to 2/0 AWG Black
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 8 to 2 AWG Black
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Black
$0.00
Couldn't load pickup availability
Electrical Tape Assortment with Dispenser 15Pcs
$0.00
Couldn't load pickup availability
Electrical Tape Assortment with Dispenser 15Pcs
$0.00
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire ProtectionDouble Layer . . . Double Protection
• Thermapod™ is an easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire. Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsuliation and strain damage from flexing
• Temperature Rating: -67°F to +230°F/ -55°C to +110°C
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21862153 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 12-8 AWG |
| Diameter | 3/8 " |
| Length | 4 ft |
| Color | Red |
| I.D. Before Shrinkage | 0.375 " |
| I.D. After Shrinkage | 0.135 " |
| Shrink Ratio | 3:1 |
| Dielectric Strength | 500 V/mil |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | SAE-AMS-DTL - 23053/4, CL-1 |
| Description | Thermapod Heat Shrink Tubing Red 3/8 x 4' |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.65 lb |
