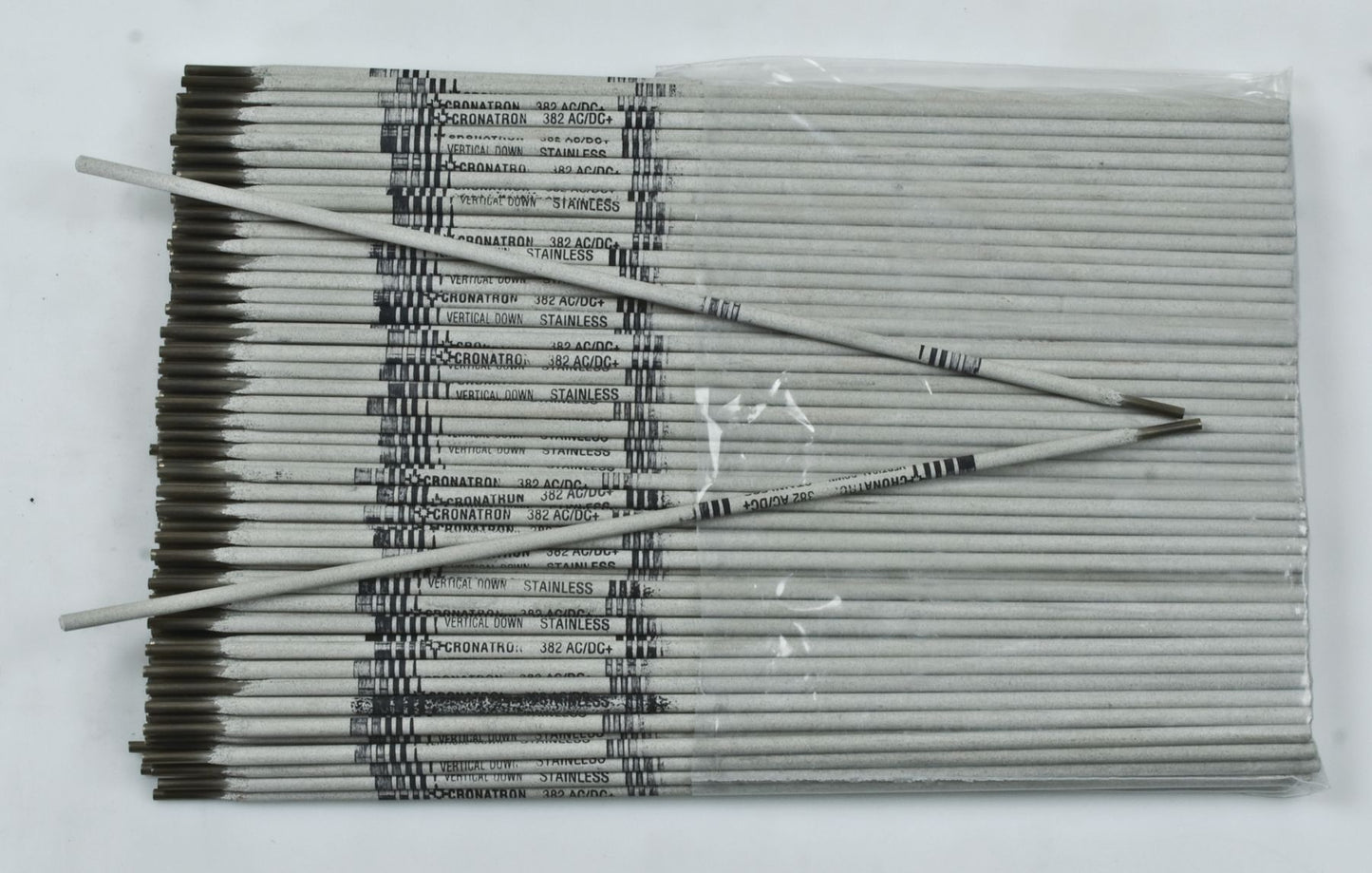

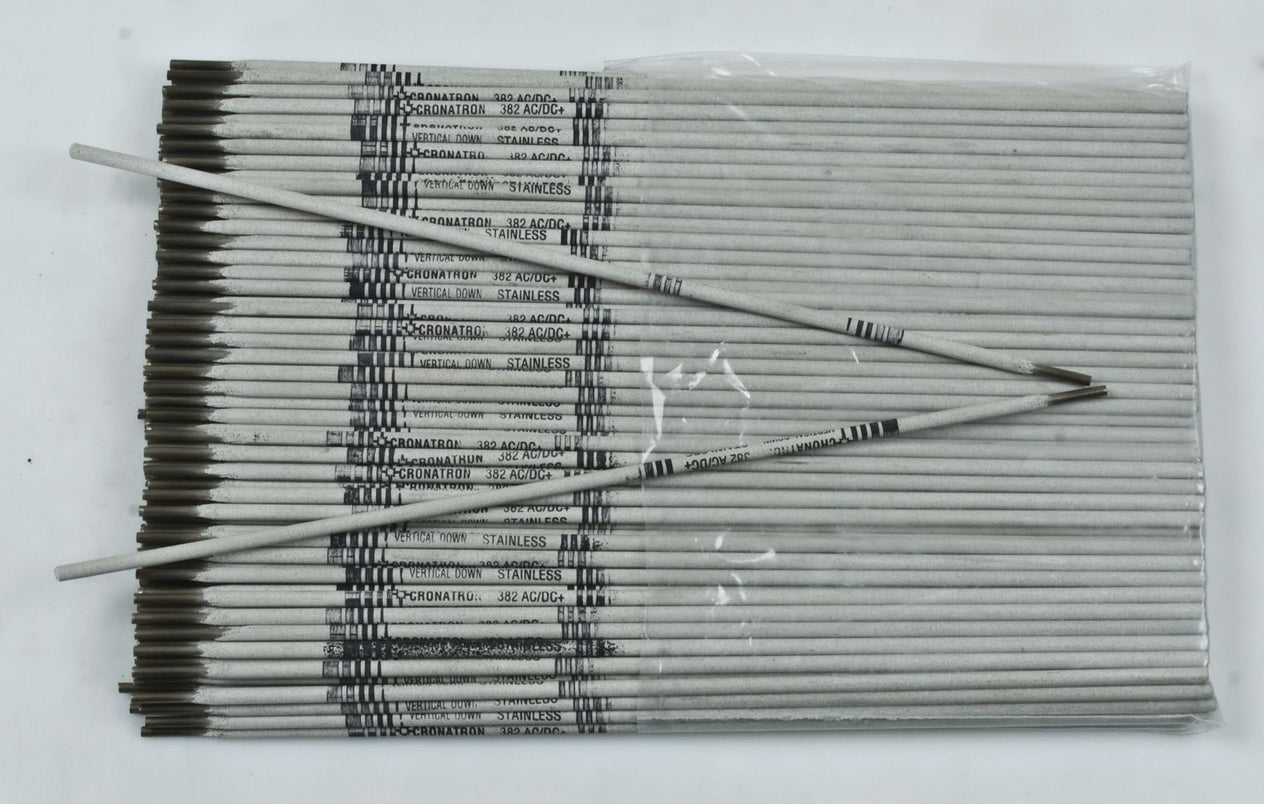

382 Stainless Steel Stick Rod Electrode, Flux Coated, 70 to 90 Amps, 35% Elongation, DCRP/AC Polarity, 1/8"
(Pack of
10)
SKU:CW1519 Item#: CW1519
Premium Austenitic Stainless Steel Electrodes and Wires
X-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.
All-position stainless steel for buildup and joining
Tensile Strength: 80,000 PSIElongation: 35%Polarity: AC or DC Reverse
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Usage ProcedureUse AC or DC reverse polarity for vertical down welding. Hold a short arc and tilt electrode 10° in the direction of travel using a stringer bead technique.
Frequently Bought Together
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
E309L-16 Stainless Steel Stick Rod Electrode 3/32"
$0.00
Couldn't load pickup availability
ER316L Stainless Steel TIG Wire 3/32"
$0.00
Couldn't load pickup availability
ER309L Stainless Steel MIG Welding Wire 0.045"
$0.00
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
$0.00
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
Oxy-Therm Collet 1/4"
$0.00
Couldn't load pickup availability
Oxy-Therm Collet Nut
$0.00
Couldn't load pickup availability
311 Mild and Carbon Steel MIG Welding Wire 0.035"
$0.00
Couldn't load pickup availability
Product Description
Premium Austenitic Stainless Steel Electrodes and WiresX-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.
All-position stainless steel for buildup and joining
Tensile Strength: 80,000 PSIElongation: 35%Polarity: AC or DC Reverse
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Usage ProcedureUse AC or DC reverse polarity for vertical down welding. Hold a short arc and tilt electrode 10° in the direction of travel using a stringer bead technique.
Technical Specifications
| Item#: | CW1519 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Tensile Strength | 80,000 PSI |
| Elongation | 35 % |
| Base Metal | Stainless Steel |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.5 lb |
