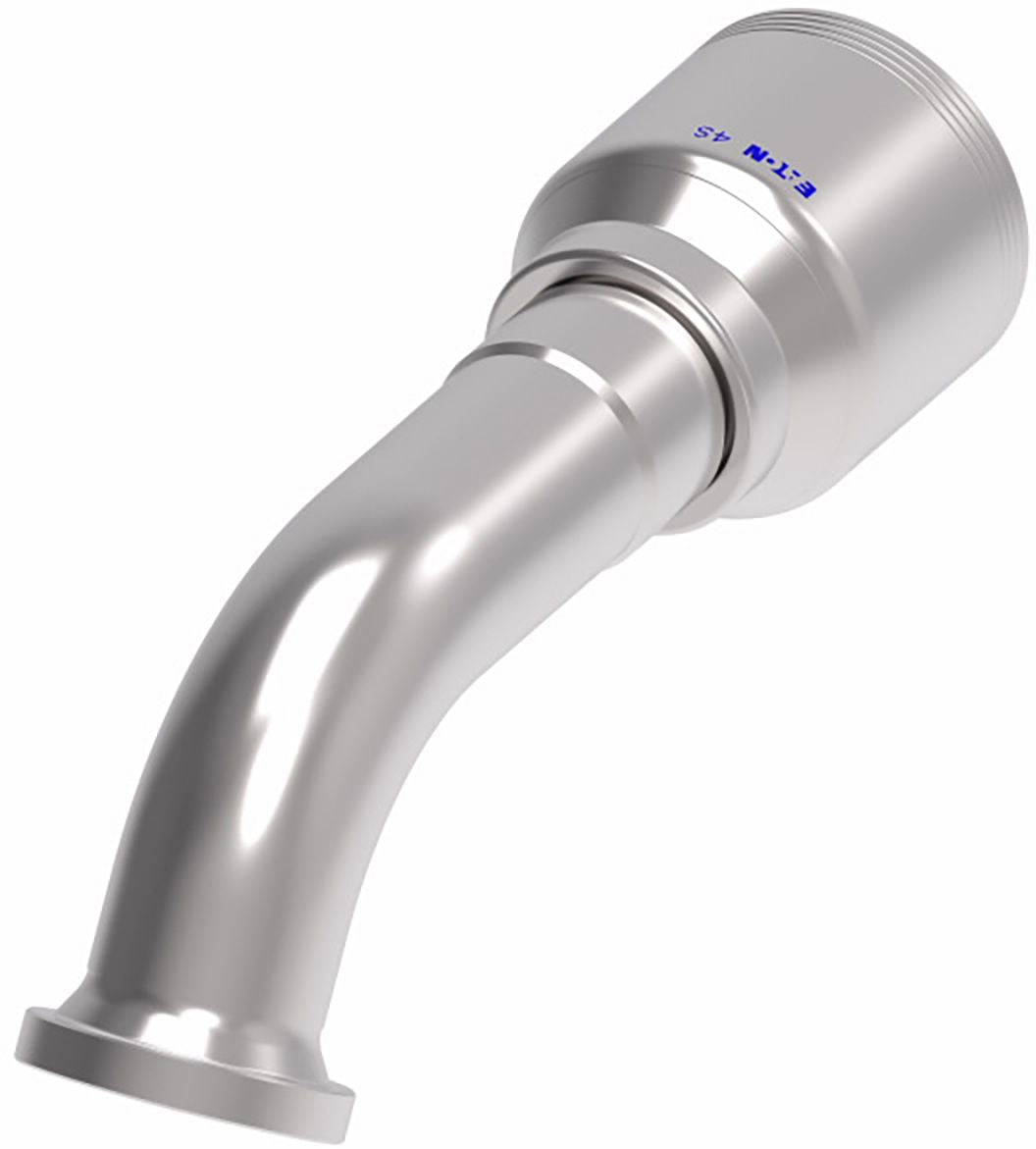

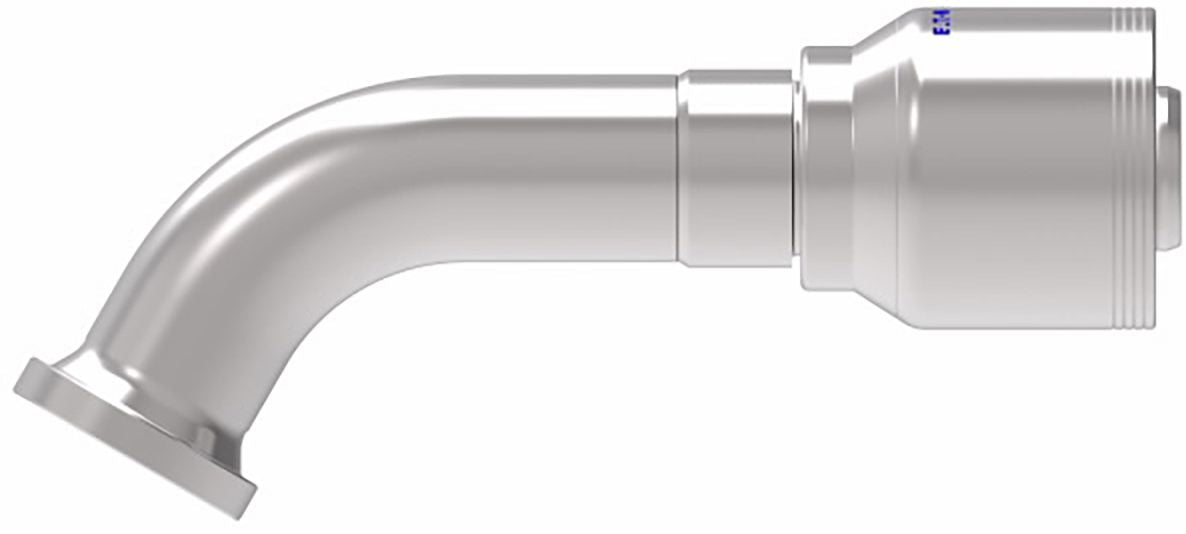

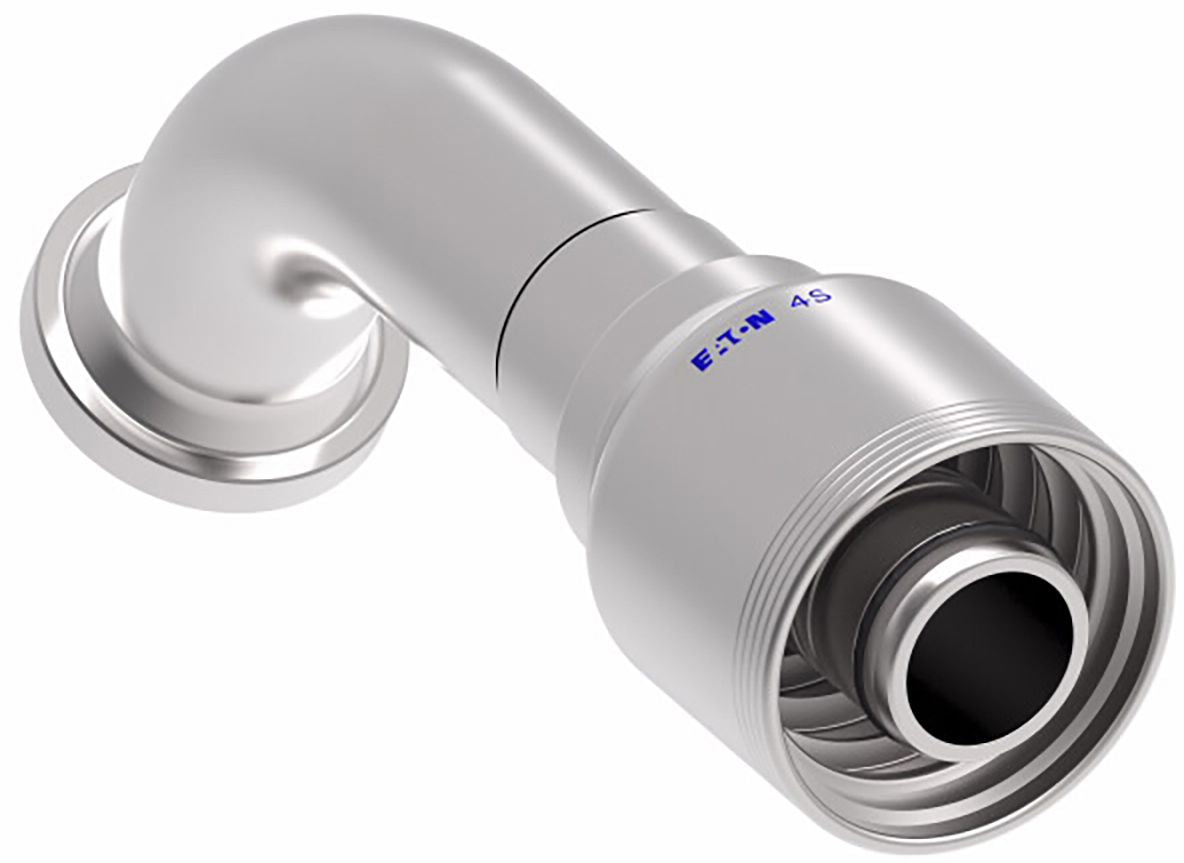

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 60°, SAE 61, 1-1/4 (-20) x 2" (-20)
(Pack of
1)
SKU:1542991 Item#: 1542991
Compatible Hoses:
• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734745245
Item#: 1644502
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734724245
Item#: 1644491
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734742245
Item#: 1644500
$0.00
Couldn't load pickup availability
Z Series/1A Series Crimp-On Elbow Flare 90° 1/4" x 9/16-18
Item#: 16645
$0.00
Couldn't load pickup availability
Spacer Ring Pink/White
Item#: 1555772
$0.00
Couldn't load pickup availability
Z Series/1A Series Crimp-On Hose End 1/2" x 1/2-14
Item#: 16584
$0.00
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
Item#: KT14463
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Item#: 54558
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Item#: KT14094
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Item#: KT11580
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Item#: KT13984
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Item#: KT13687
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses:• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1542991 |
|---|---|
| Manufacturer Model #: | 4S20FLG20 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Fitting End Type | Flanged |
| Fitting Angle | 60 ° |
| Fitting Dimension B (Working End) | 2.00 (-20) |
| Weatherhead No. | 4S20FLG20 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 5.7 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.75 lb |
