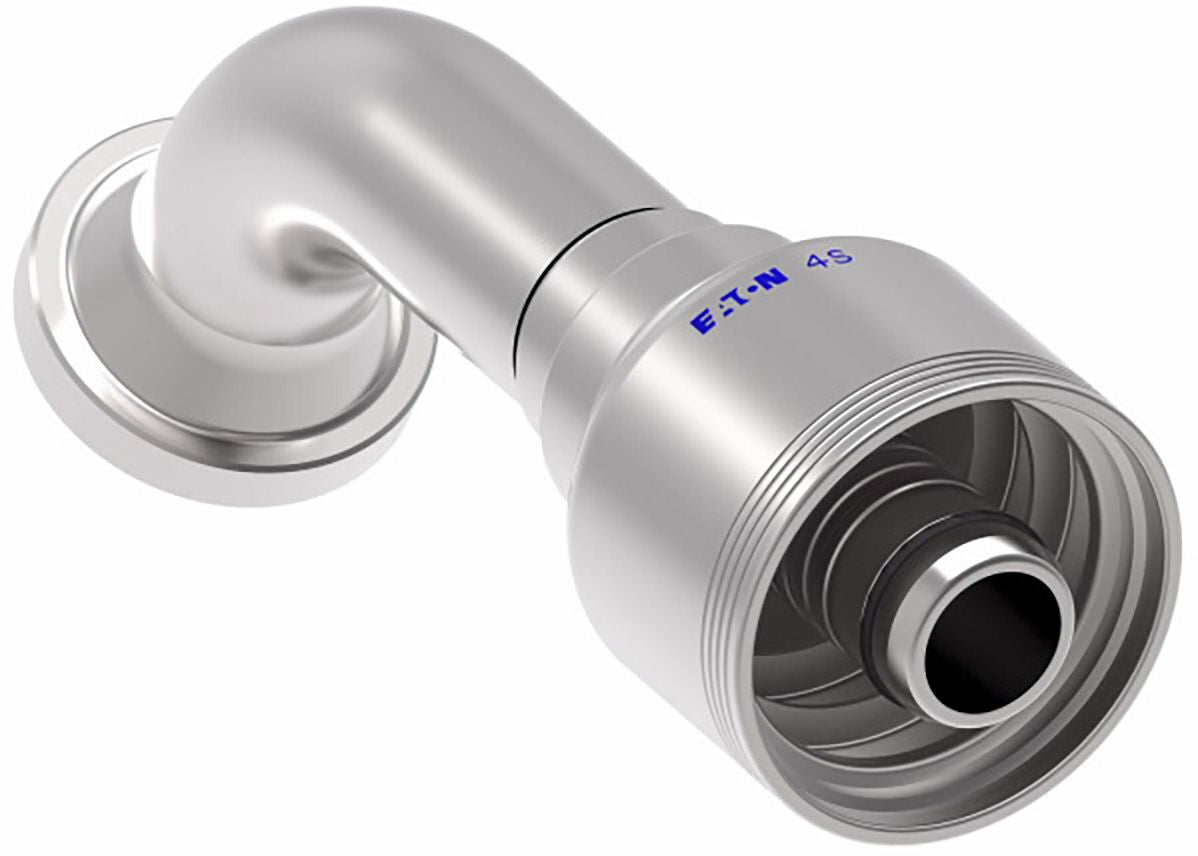

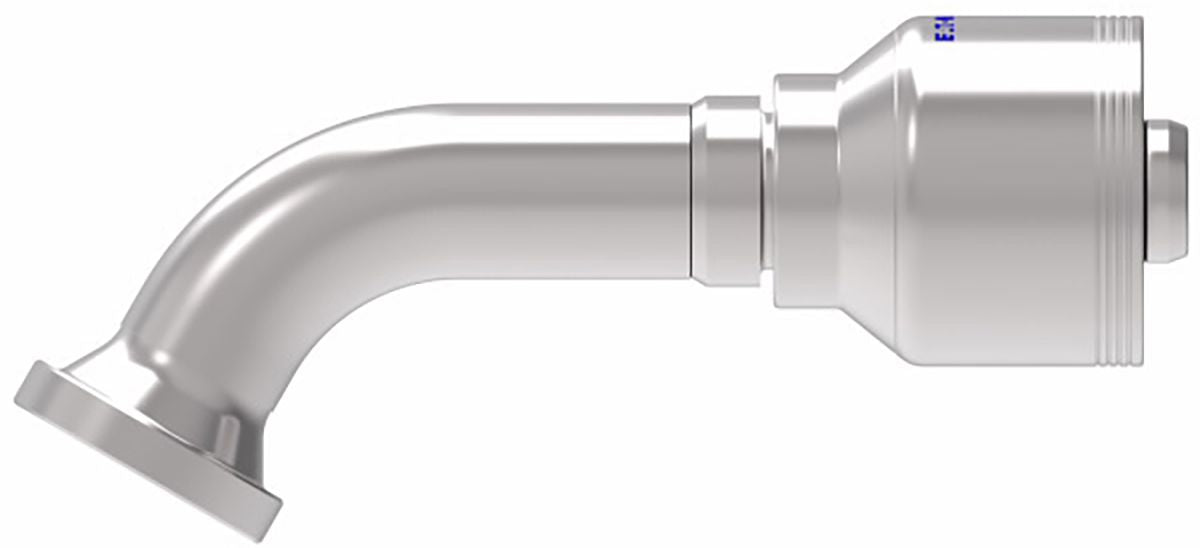

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 60°, SAE 61, 3/4 (-12) x 1.5" (-12)
(Pack of
2)
SKU:1543116 Item#: 1543116
Compatible Hoses:
• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Crimp-On Hose Coupling 1/2" x 1/2-14
Item#: 88314KH
$0.00
Couldn't load pickup availability
FF12139
Item#: 1182613
$0.00
Couldn't load pickup availability
08Z-BC48- Hose End (perm) 1S/1R 45 D Male STC
Item#: 1184318
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
Item#: 1690522
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733201025
Item#: 1643557
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733200335
Item#: 1641246
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Item#: 11914
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Item#: KT15127
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Item#: KT15123
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: KT11397
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses:• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543116 |
|---|---|
| Manufacturer Model #: | 4S12FLG12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Fitting End Type | Flanged |
| Fitting Angle | 60 ° |
| Fitting Dimension B (Working End) | 1.50 (-12) |
| Weatherhead No. | 4S12FLG12 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 3.85 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.99 lb |
