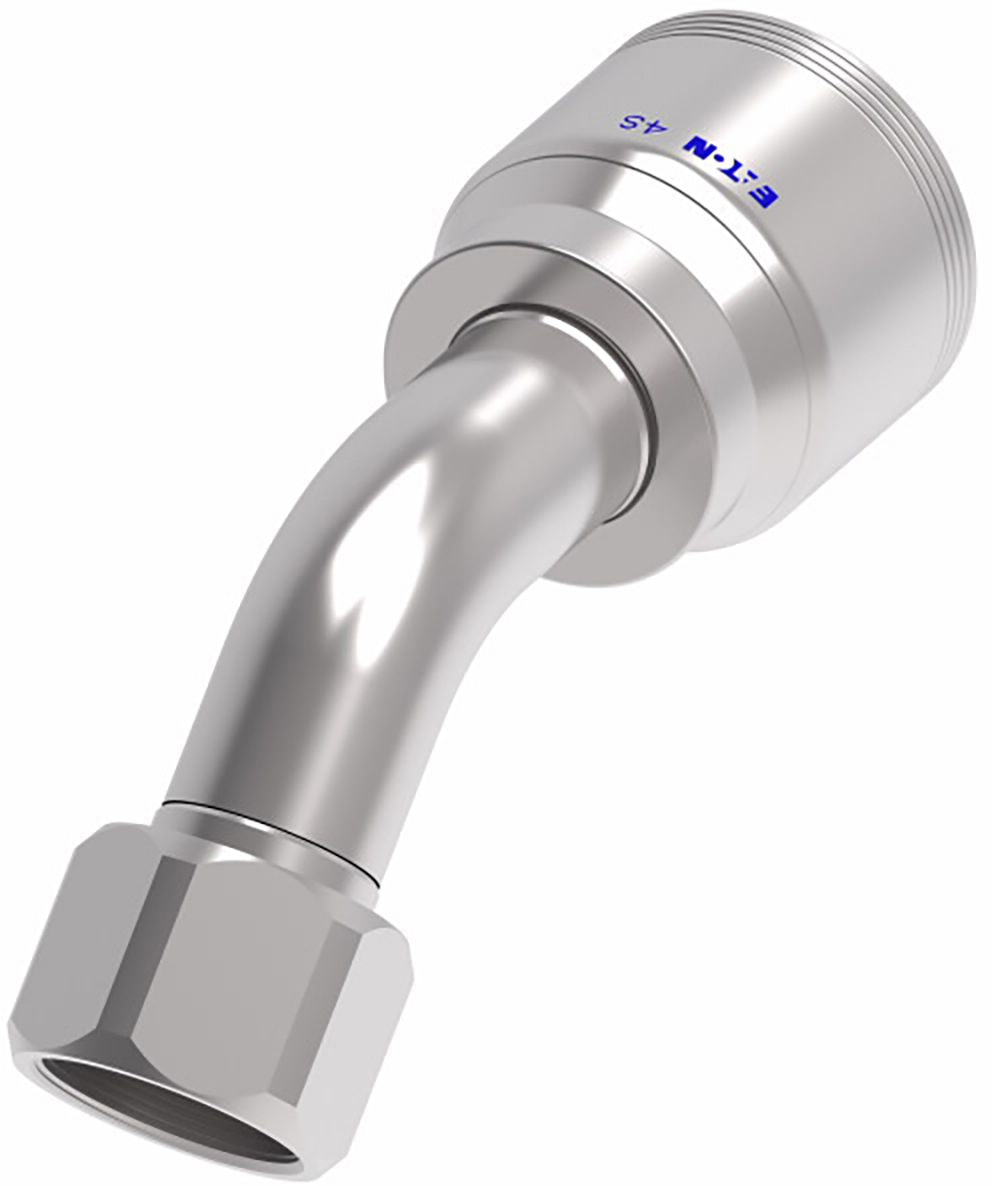

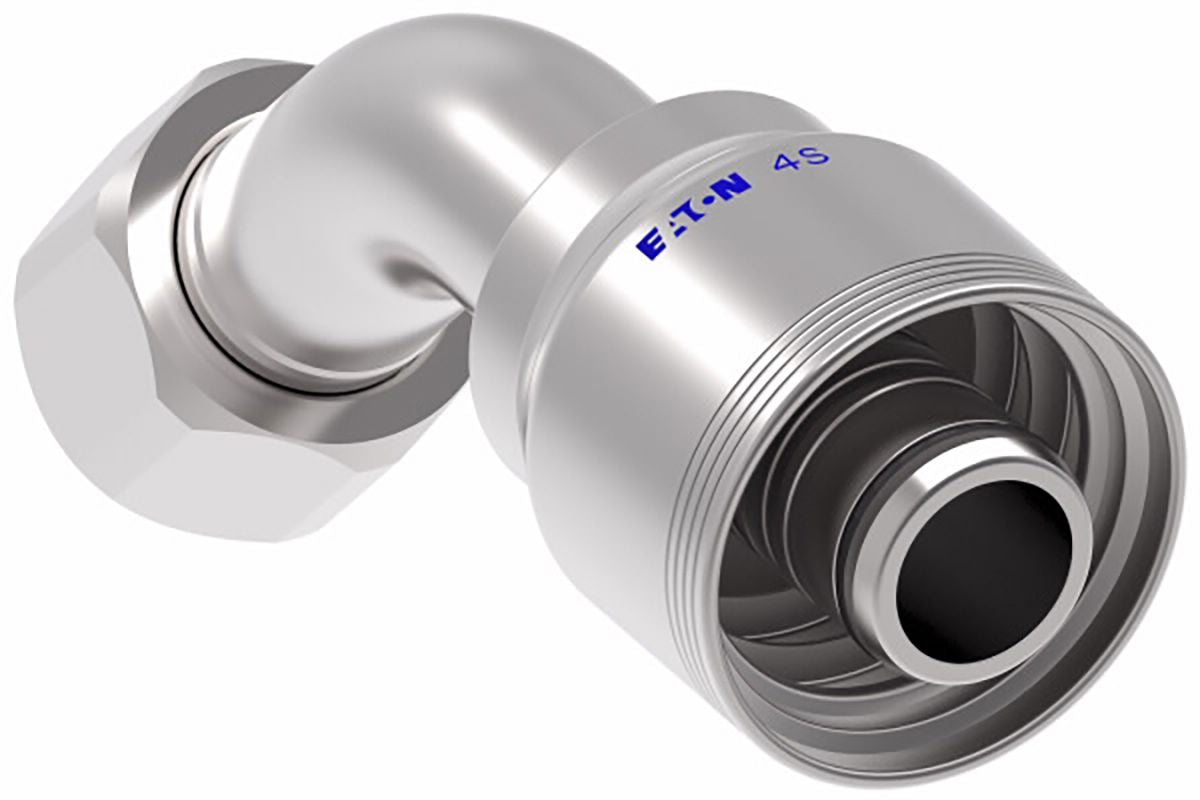

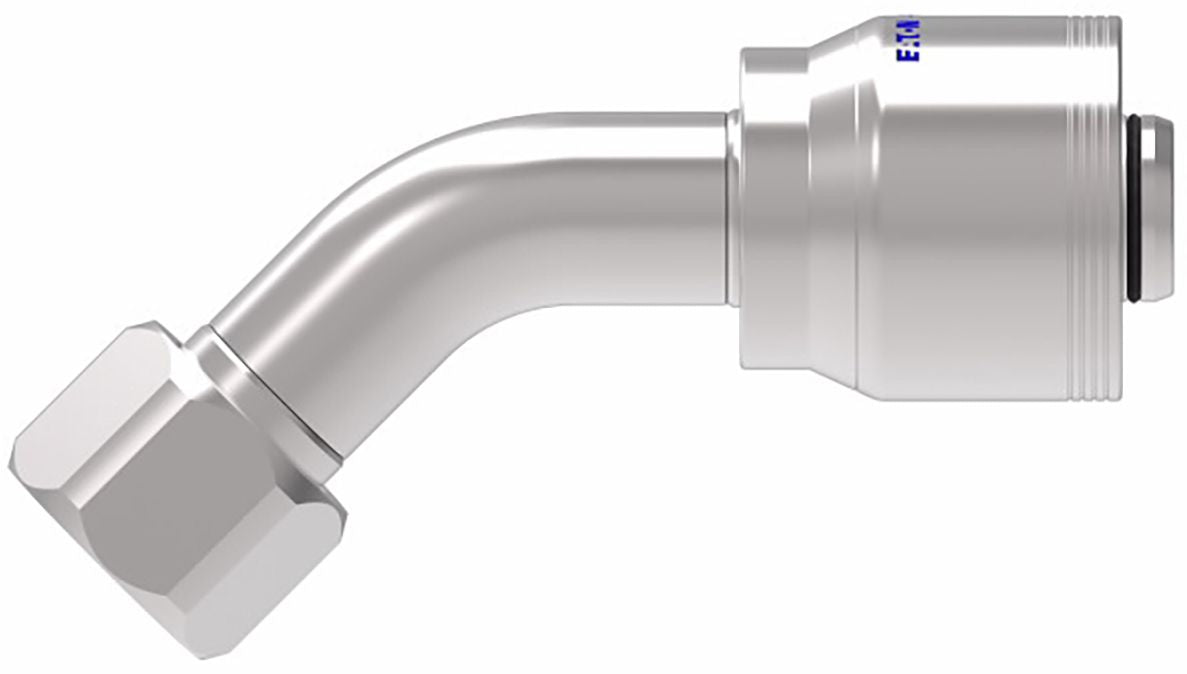

4S Series Crimp-On Elbow, Carbon Steel, Female JIC 37°, Swivel 45°, 1" (-16) x 1-5/8-12 (-20)
(Pack of
1)
SKU:1543077 Item#: 1543077
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
