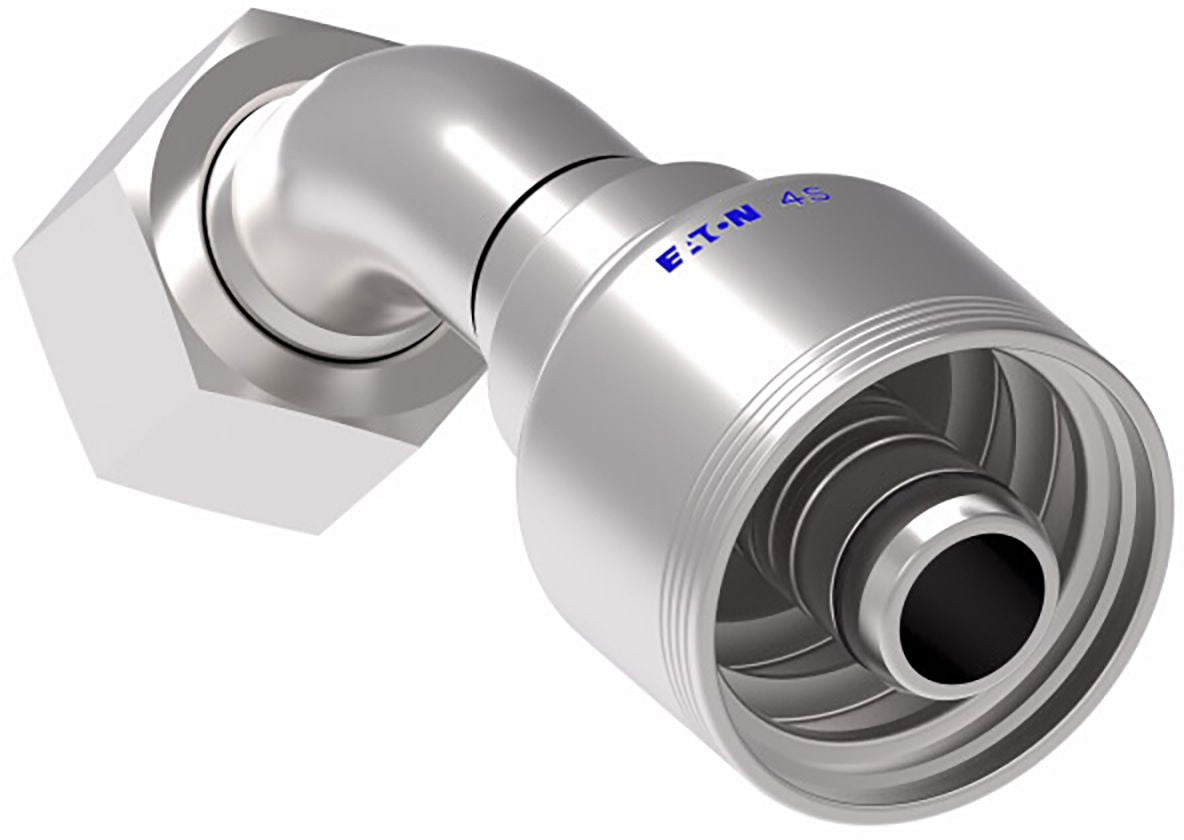

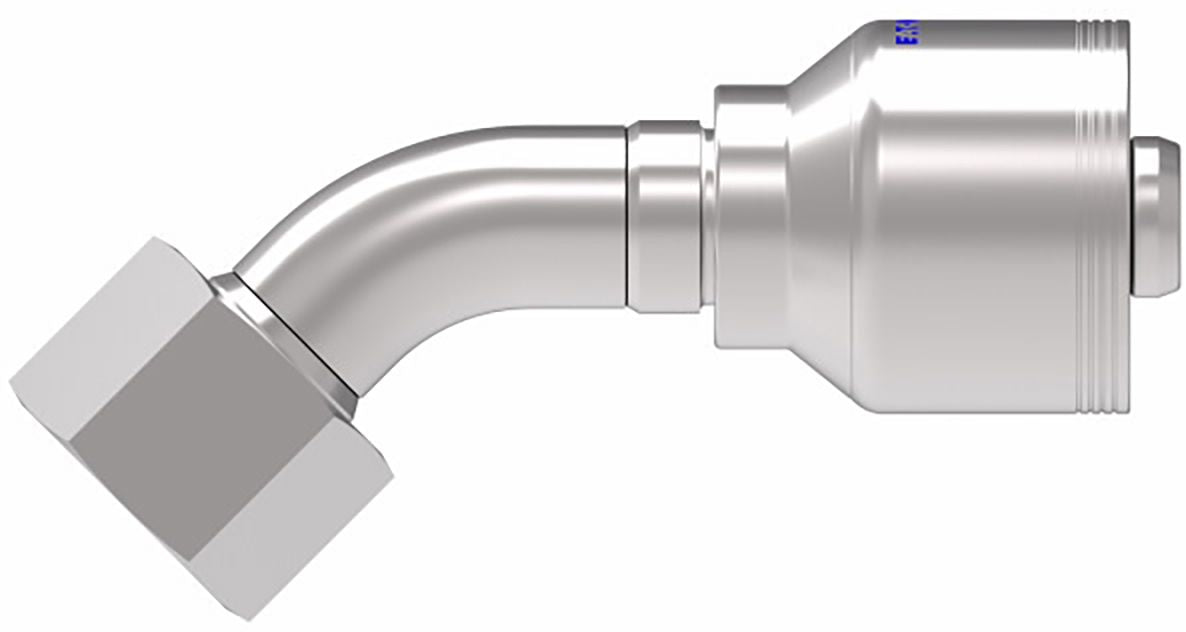

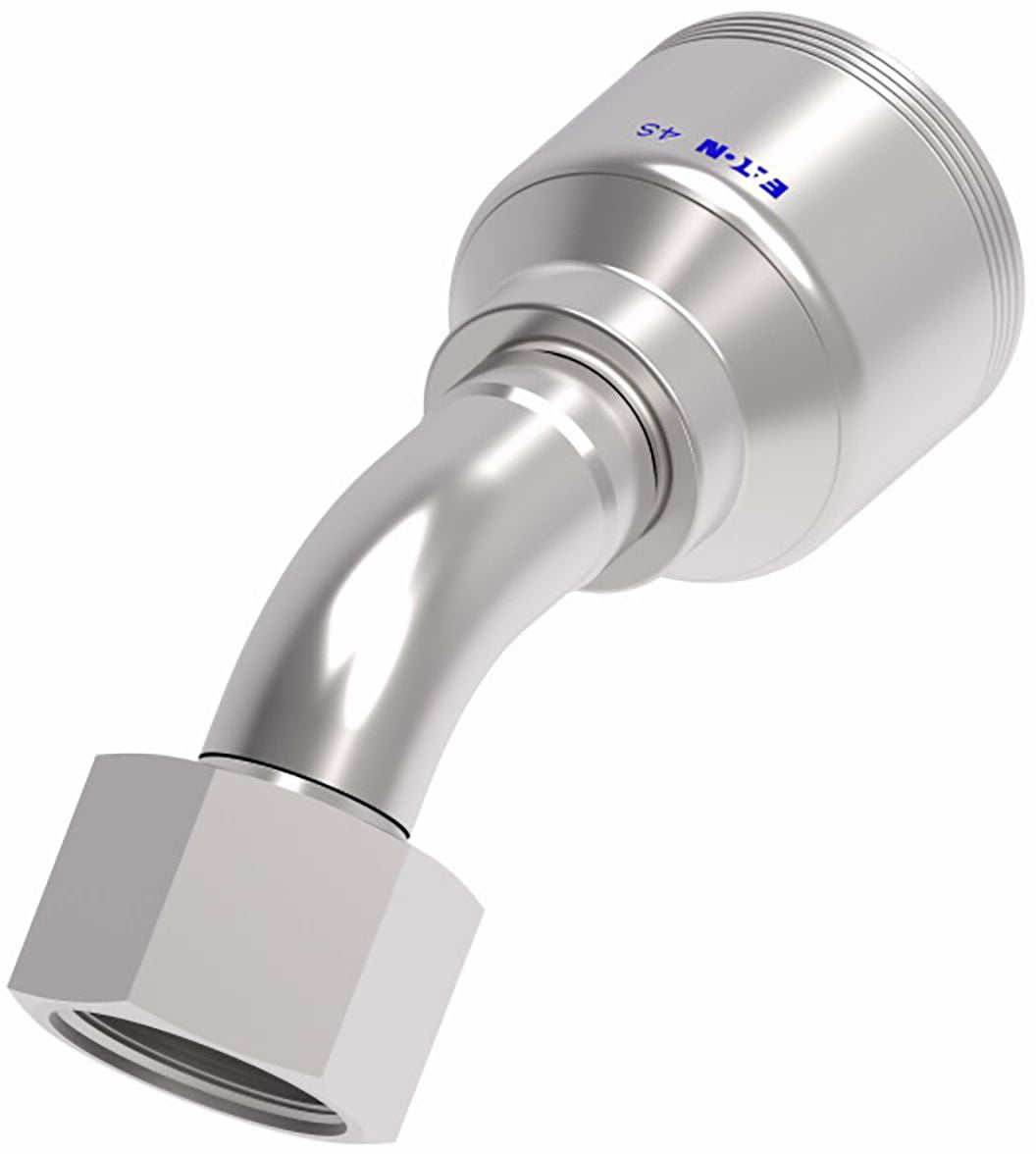

4S Series Crimp-On Elbow, Carbon Steel, Female O-Ring Seal Swivel 45°, 3/4" (-12) x 1-3/16-12 (-12)
(Pack of
1)
SKU:1543024 Item#: 1543024
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734742245
Item#: 1644500
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734773065
Item#: 1644498
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734733245
Item#: 1644489
$0.00
Couldn't load pickup availability
Spacer Ring Pink/White
Item#: 1555772
$0.00
Couldn't load pickup availability
Spacer Ring Green/White
Item#: 1555805
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN Green
Item#: P27171
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
Item#: P64047M01
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
Item#: KT15124
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Item#: 54558
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Item#: P15599
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Item#: KT13537
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Item#: KT11580
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543024 |
|---|---|
| Manufacturer Model #: | 4SA12FRA12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Type | Rigid |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 1-3/16-12 (-12) |
| Weatherhead No. | 4SA12FRA12 |
| SAE Code | J1176 |
| Hex Size | 1.375 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.85 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 0.92 lb |
