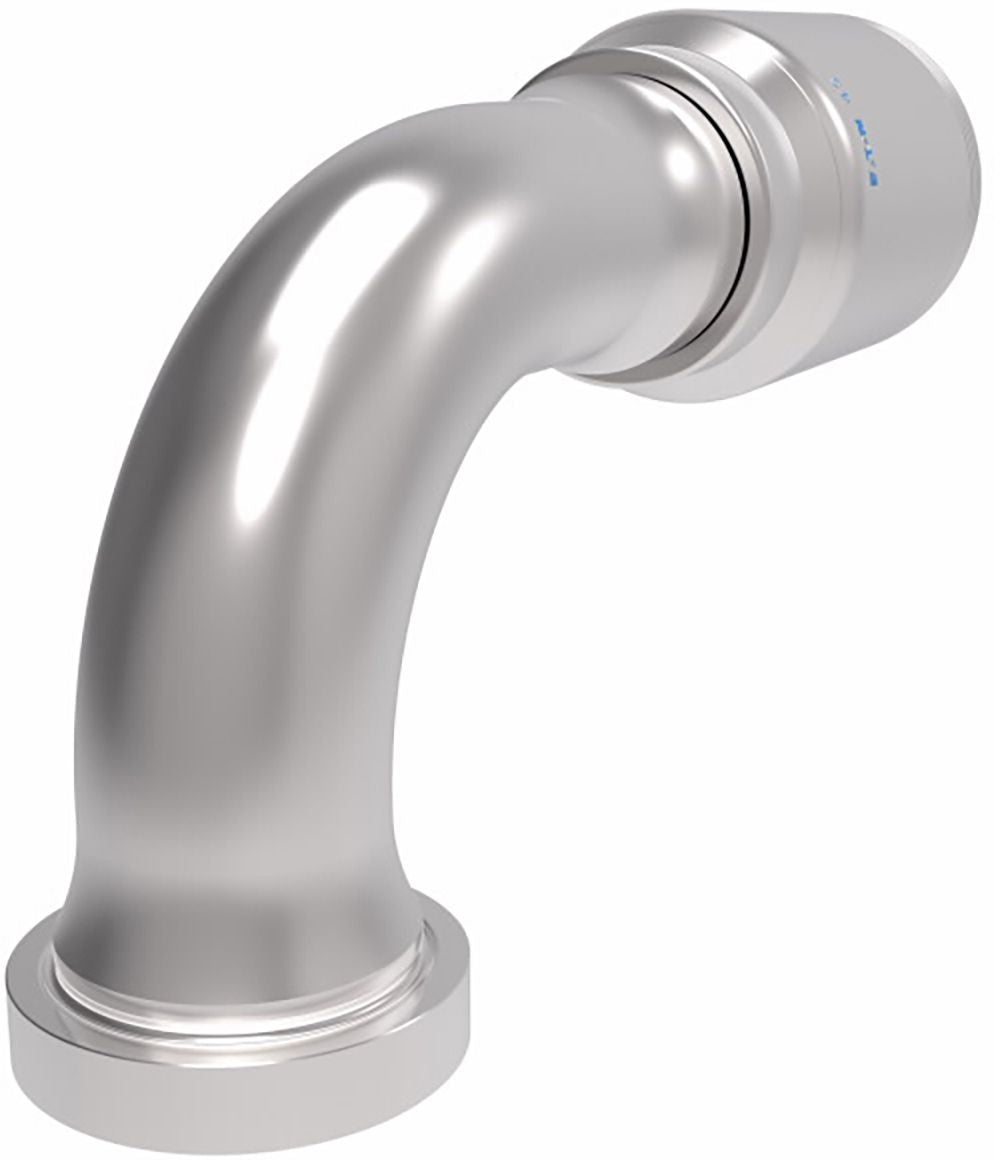

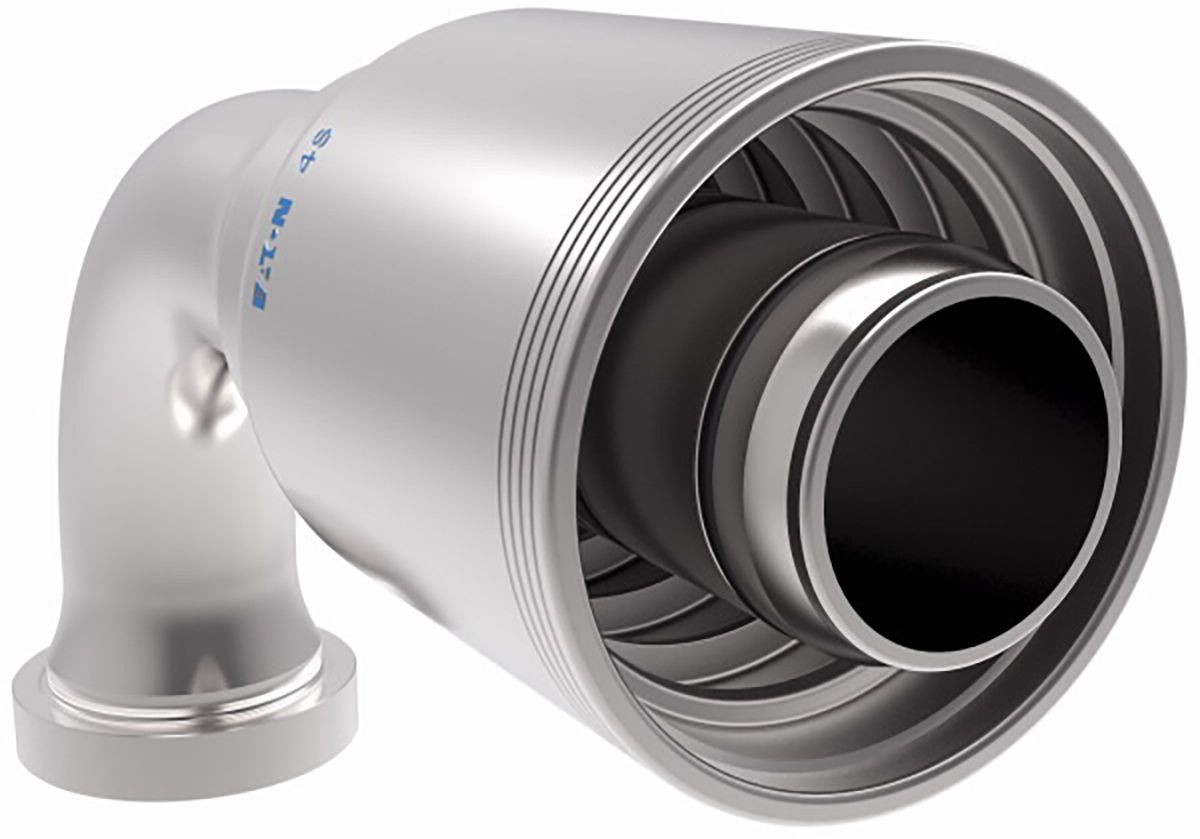

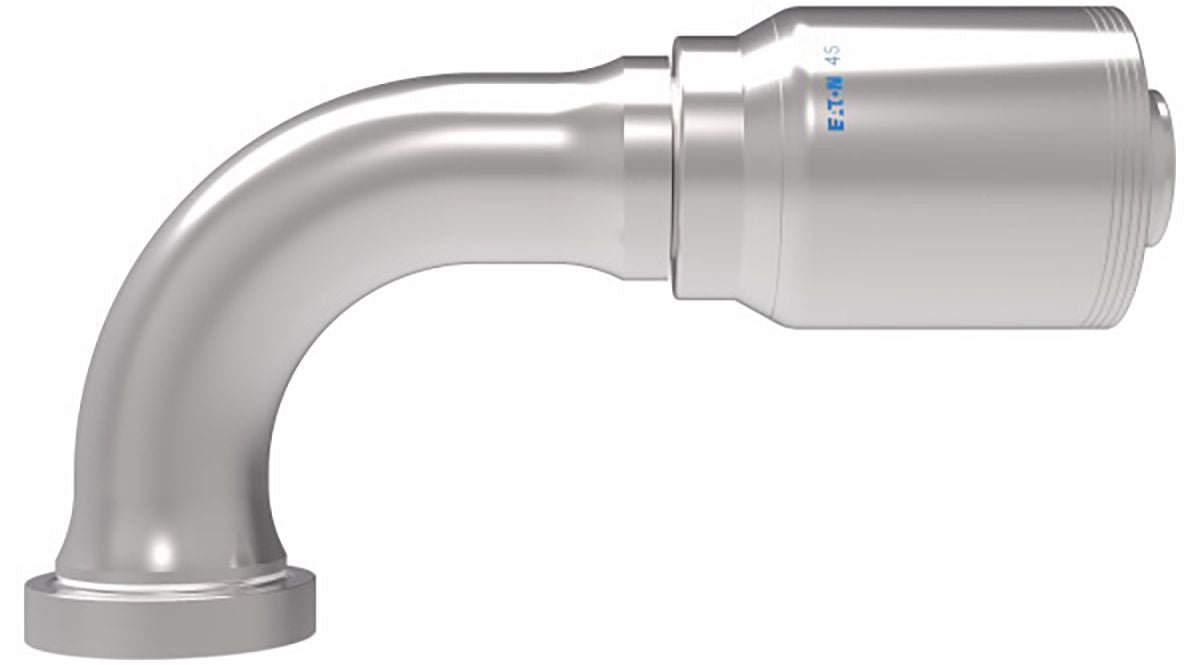

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 90°, SAE 62, 1-1/2 (-24) x 2.5" (-24)
(Pack of
1)
SKU:1543096 Item#: 1543096
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
4T Series Crimp-On Hose End 1/4" x 7/16-20
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734745245
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734724245
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 14.8 x 19.6mm
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 6 x 3" Yellow
$0.00
Couldn't load pickup availability
Spacer Ring Brown
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"
$0.00
Couldn't load pickup availability
Self Igniting Butane Torch
$0.00
Couldn't load pickup availability
DTM High Build Seam Sealer White 10fl.oz
$0.00
Couldn't load pickup availability
SAE Interchangeable Nut Driver Set 11Pc
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543096 |
|---|---|
| Manufacturer Model #: | 4S24FHB24 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/2 (-24) " |
| Dash Size | -24 |
| Fitting End Type | Flanged |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 2.50 (-24) |
| Weatherhead No. | 4S24FHB24 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 5.15 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 4.98 lb |
