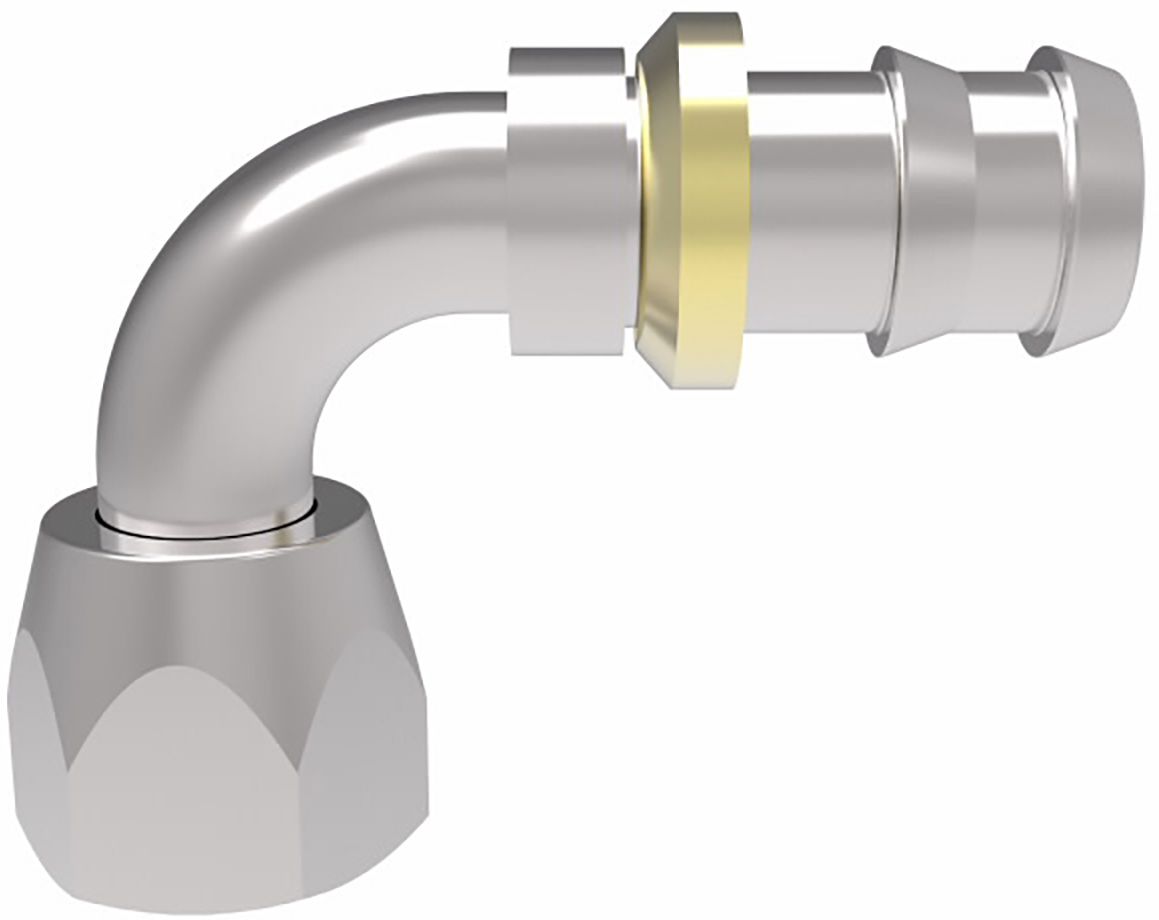

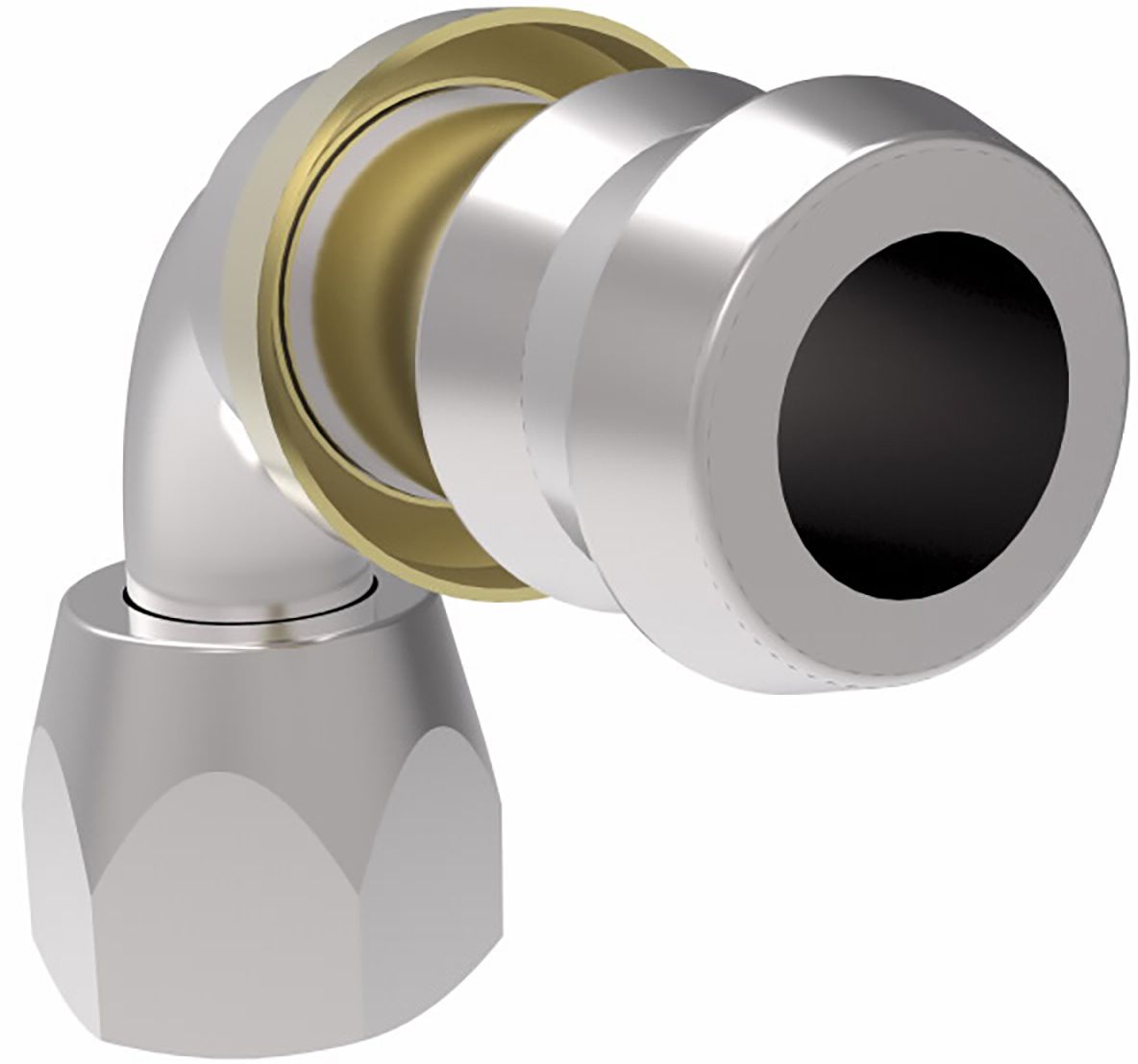

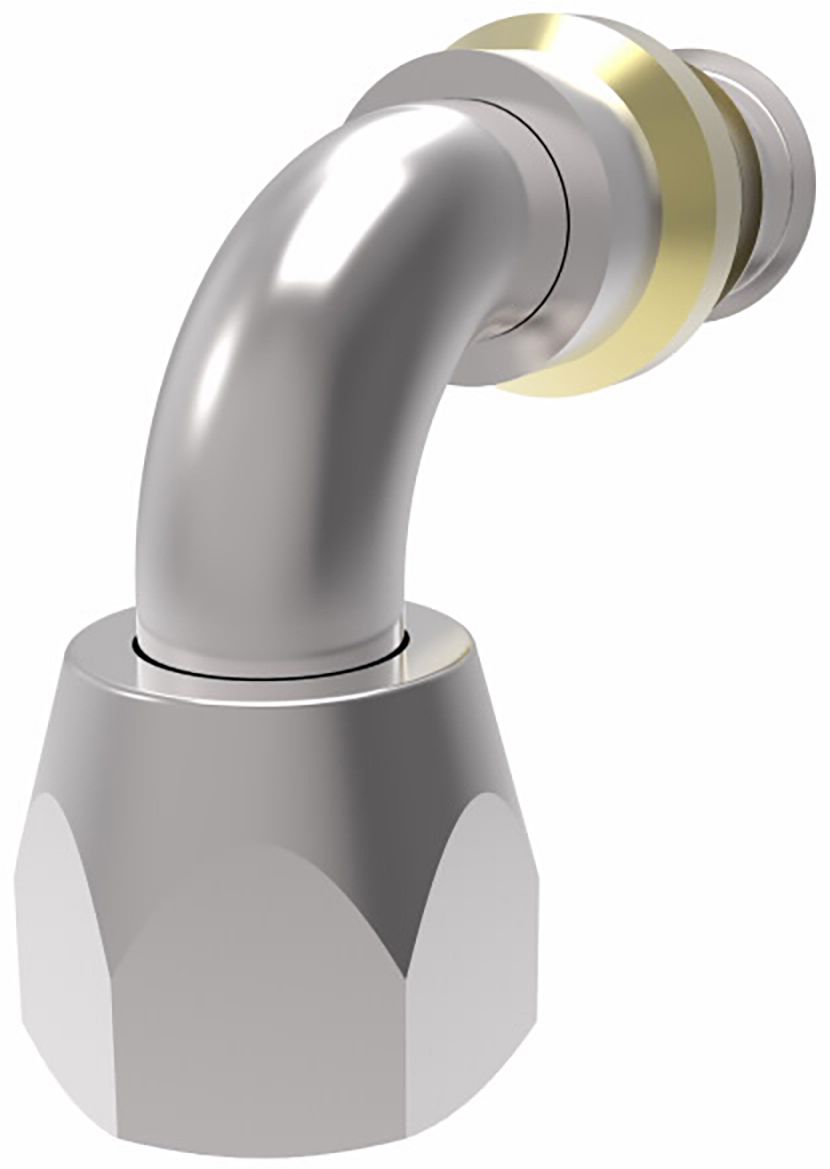

4S Series Crimp-On Elbow, Carbon Steel, Female O-Ring Seal, Swivel 90°, 1-1/4" (-20) x 2-12 (-24)
(Pack of
1)
SKU:1543128 Item#: 1543128
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
Item#: 1644600
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, Ferrule 736251345
Item#: 1644599
$0.00
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.82" x 50'
Item#: 27877 08
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
Item#: 1562975
$0.00
Couldn't load pickup availability
Hydraulic Union 3/8-18 x 3/8-18
Item#: 86255
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
Item#: 27202
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Item#: 86728
$0.00
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
Item#: KT14463
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
Item#: P18348
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
Item#: P13787
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Item#: 1457520
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543128 |
|---|---|
| Manufacturer Model #: | 4SA24FRB20 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Gender | Female |
| Fitting End Type | ORS |
| Fitting Angle | 90 ° |
| Fitting Drop Length | 3.39 " |
| Fitting Dimension B (Working End) | 2-12 (-24) |
| Weatherhead No. | 4SA24FRB20 |
| SAE Code | J1176 |
| Hex Size | 2.25 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 3.85 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.85 lb |
