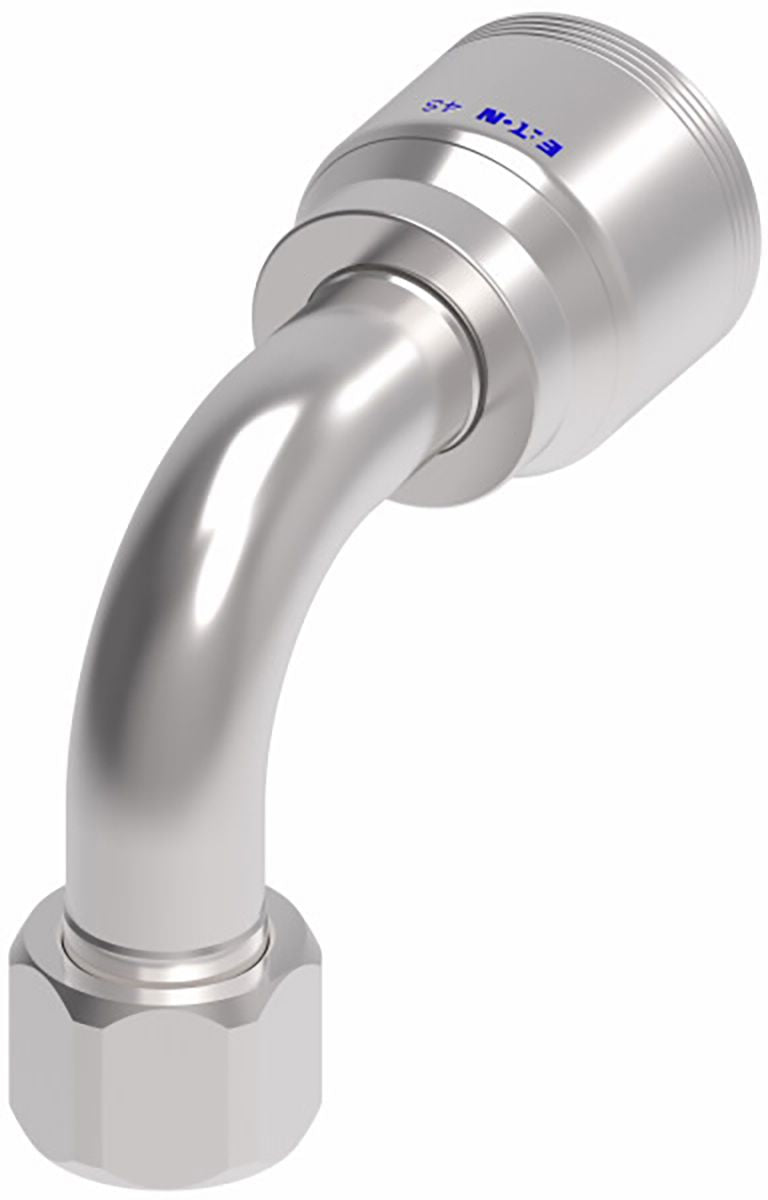

4S Series Crimp-On Elbow 90° 1" x 1-5/8-12
(Pack of
1.0)
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
R12 Ferrules, Ferrule
Item#: 1644598
Couldn't load pickup availability
MegaCrimp Coupler, O-Ring Boss
Item#: 1644535
Couldn't load pickup availability
MegaCrimp Coupler, Flareless Tube
Item#: 1644414
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 1" x 6'
Item#: 1690529
Couldn't load pickup availability
Avagard Rubber Water Hose Assembly 5/8" x 100'
Item#: 1690557
Couldn't load pickup availability
Avagard Rubber Water Hose Assembly 3/4" x 50'
Item#: 1690556
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 25'
Item#: 1690570
Couldn't load pickup availability
OilShield Rubber Air Hose Reel Heavy Duty Single Arm Assembly 3/8" x 50'
Item#: 1690617
Couldn't load pickup availability
OilShield Rubber Air Hose Reel Heavy Duty Single Arm Assembly 1/2" x 50'
Item#: 1690616
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Item#: KT14285
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Item#: 1457520
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Item#: 1468633
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543110 |
|---|---|
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Female |
| Fitting End Type | JIC 37 |
| Fitting Angle | 90 ° |
| Fitting Drop Length | 3.07 " |
| Fitting Dimension B (Working End) | 1-5/8-12 (-20) |
| Weatherhead No. | 4SA20FJB16 |
| SAE Code | J1176 |
| Hex Size | 2 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 3.05 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.04 lb |
