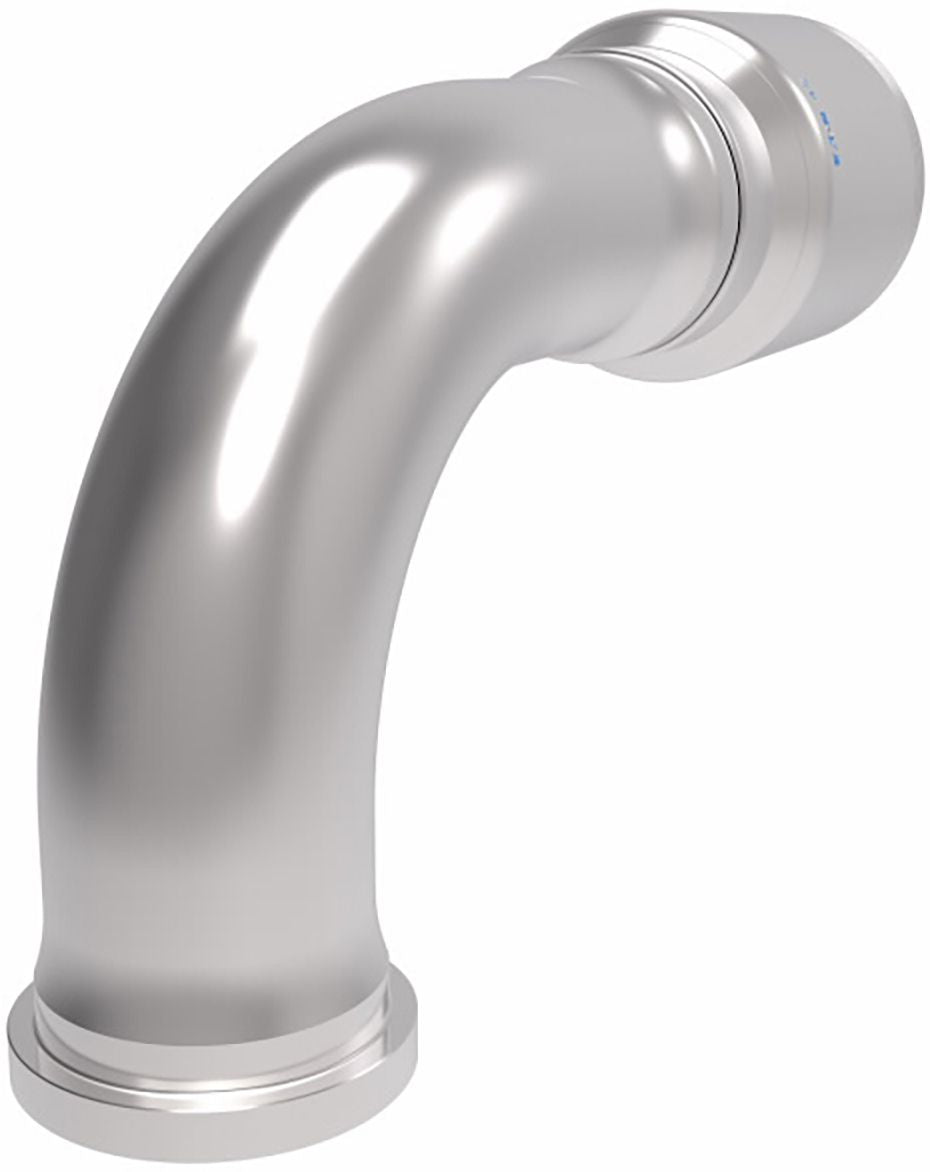

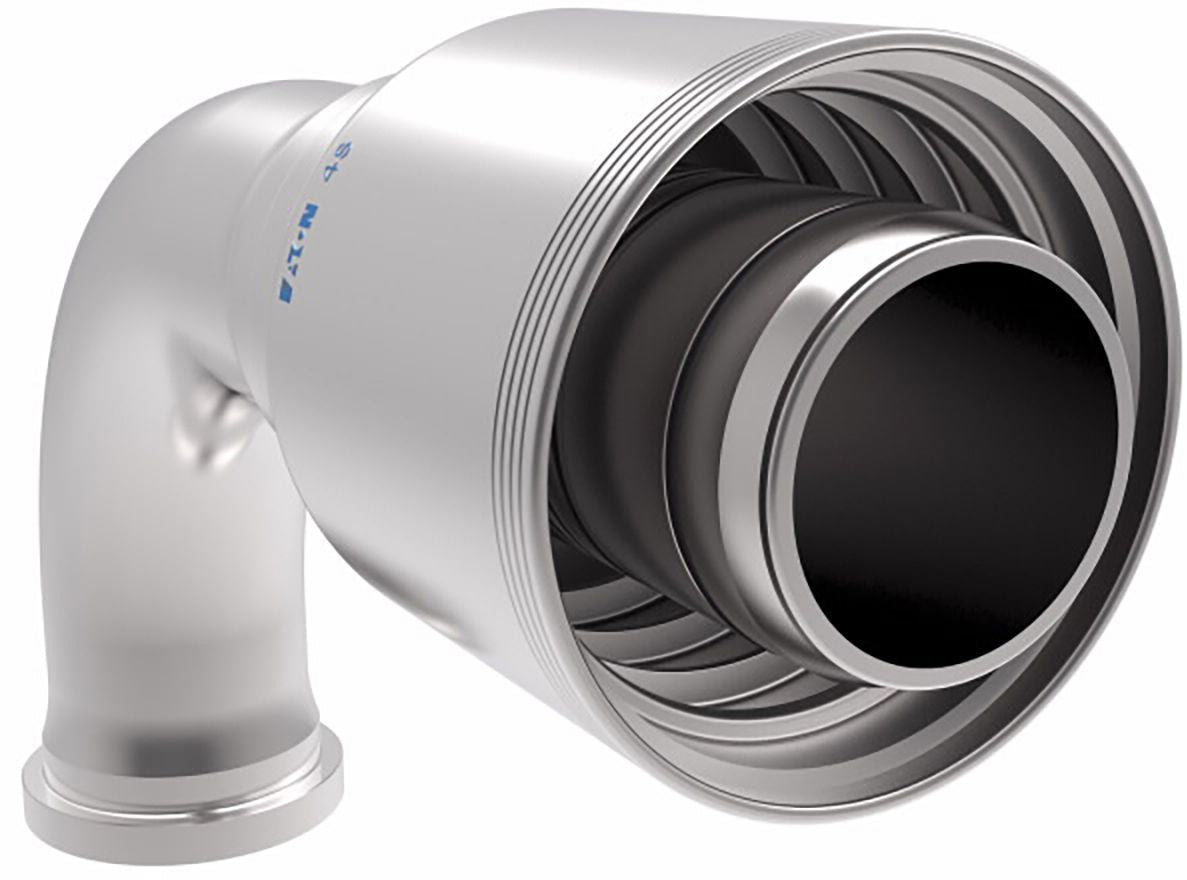

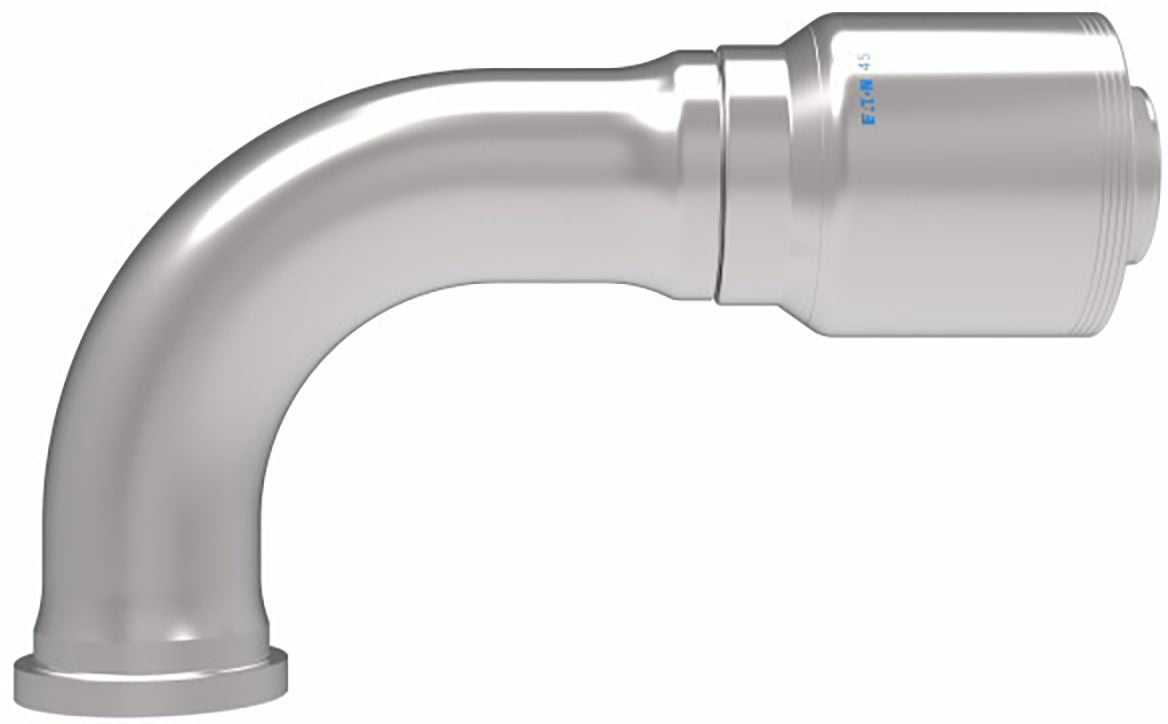

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 90°, SAE 61, 2 (-32) x 2.81" (-32)
(Pack of
1)
SKU:1543005 Item#: 1543005
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Power Crimp Coupler, Ferrule 726607825
Item#: 1644518
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
Item#: 1644600
$0.00
Couldn't load pickup availability
RYCO RY16 Mini Crimper Crimp Die Set, Crimp Range 0.551-0.630 Inch
Item#: DY54501614
$0.00
Couldn't load pickup availability
Spacer Ring Black/White
Item#: 1555837
$0.00
Couldn't load pickup availability
Industrial O-Ring Buna-N 7/32 x 11/32 x 1/16"
Item#: 11186 04
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
Item#: 64353
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11952
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11961
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Item#: 1457520
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
Item#: KT12847
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
Item#: P13787
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543005 |
|---|---|
| Manufacturer Model #: | 4S32FLB32 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 2 (-32) " |
| Dash Size | -32 |
| Fitting End Type | Flanged |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 2.81 (-32) |
| Weatherhead No. | 4S32FLB32 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 6.78 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 9.2 lb |
