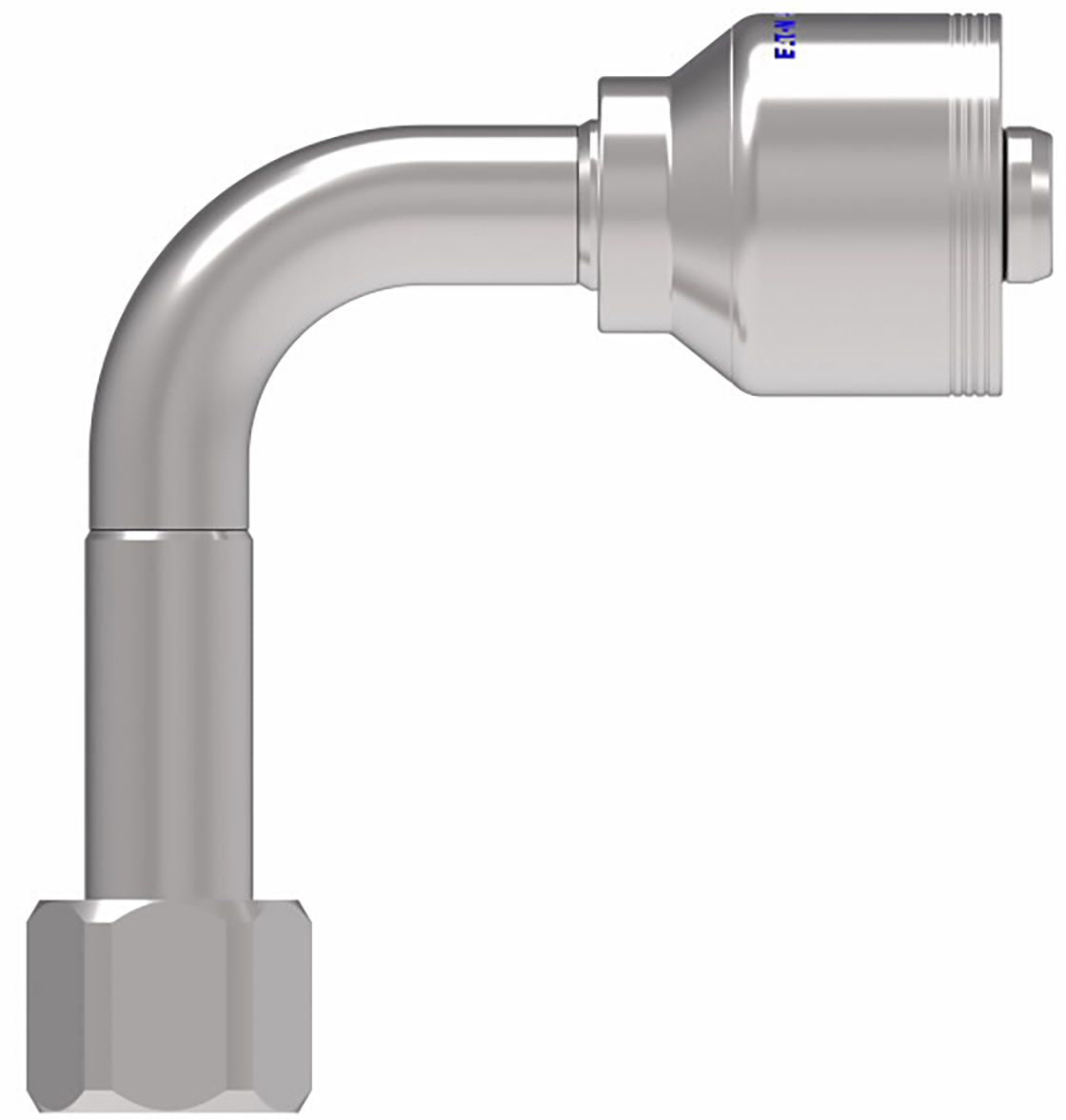

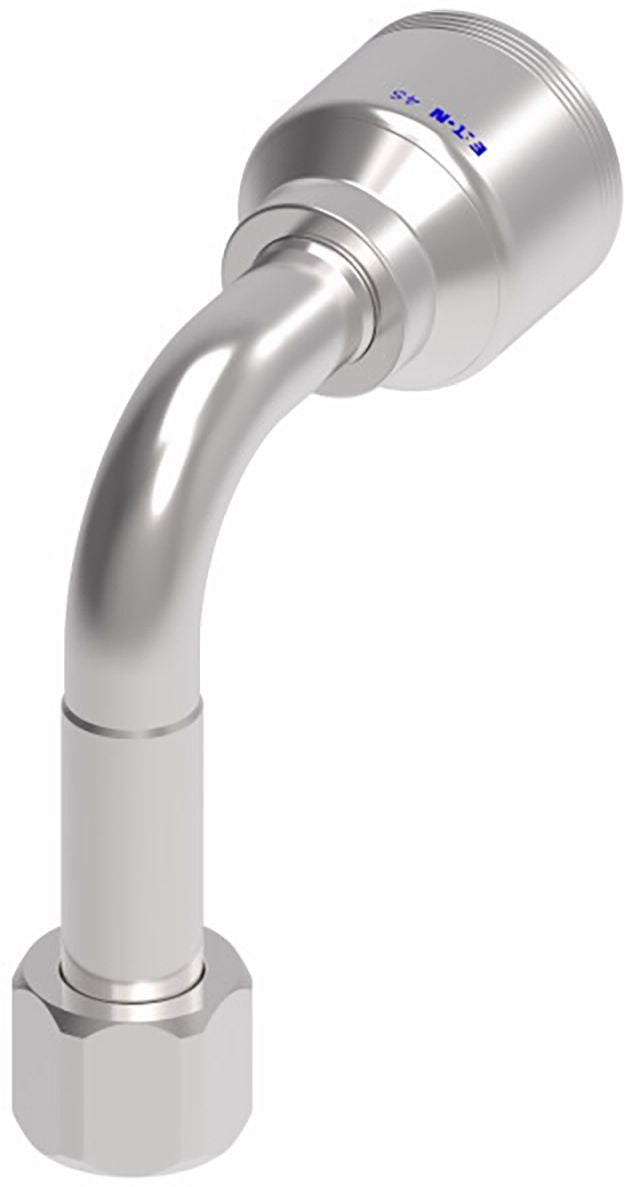

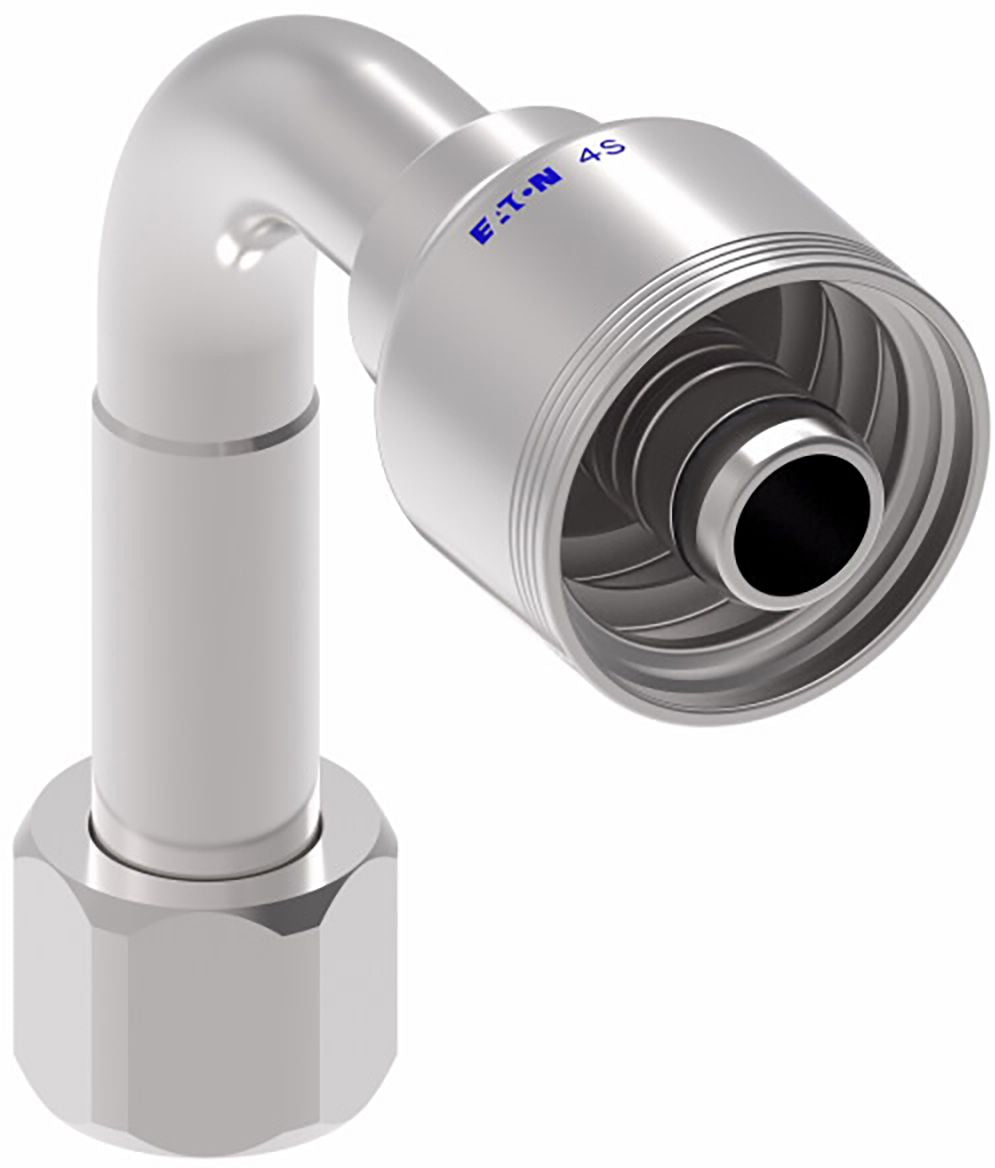

4S Series Crimp-On Elbow, Carbon Steel, Long Drop Female JIC 37° Swivel 90°, 3/4" (-12) x 1-1/16-12 (-12)
(Pack of
1)
SKU:1543043 Item#: 1543043
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, O-Ring Face Seal 734773845
Item#: 1644488
$0.00
Couldn't load pickup availability
Power Crimp Coupler, Ferrule 726607825
Item#: 1644518
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Spacer Ring Red
Item#: 1555828
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HNBR Green
Item#: KT14447
$0.00
Couldn't load pickup availability
Spacer Ring Yellow/White
Item#: 1555835
$0.00
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
Item#: KL115
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 5/8 x 1/2-14
Item#: 27185
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
Item#: 64353
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Item#: KT13687
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
Item#: P86117
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Item#: P58130
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543043 |
|---|---|
| Manufacturer Model #: | 4SA12FJC12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Type | JIC 37 |
| Fitting Angle | 90 ° |
| Fitting Drop Length | 3.78 " |
| Fitting Dimension B (Working End) | 1-1/16-12 (-12) |
| Weatherhead No. | 4SA12FJC12 |
| SAE Code | J1176 |
| Hex Size | 1.25 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.57 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 0.97 lb |
