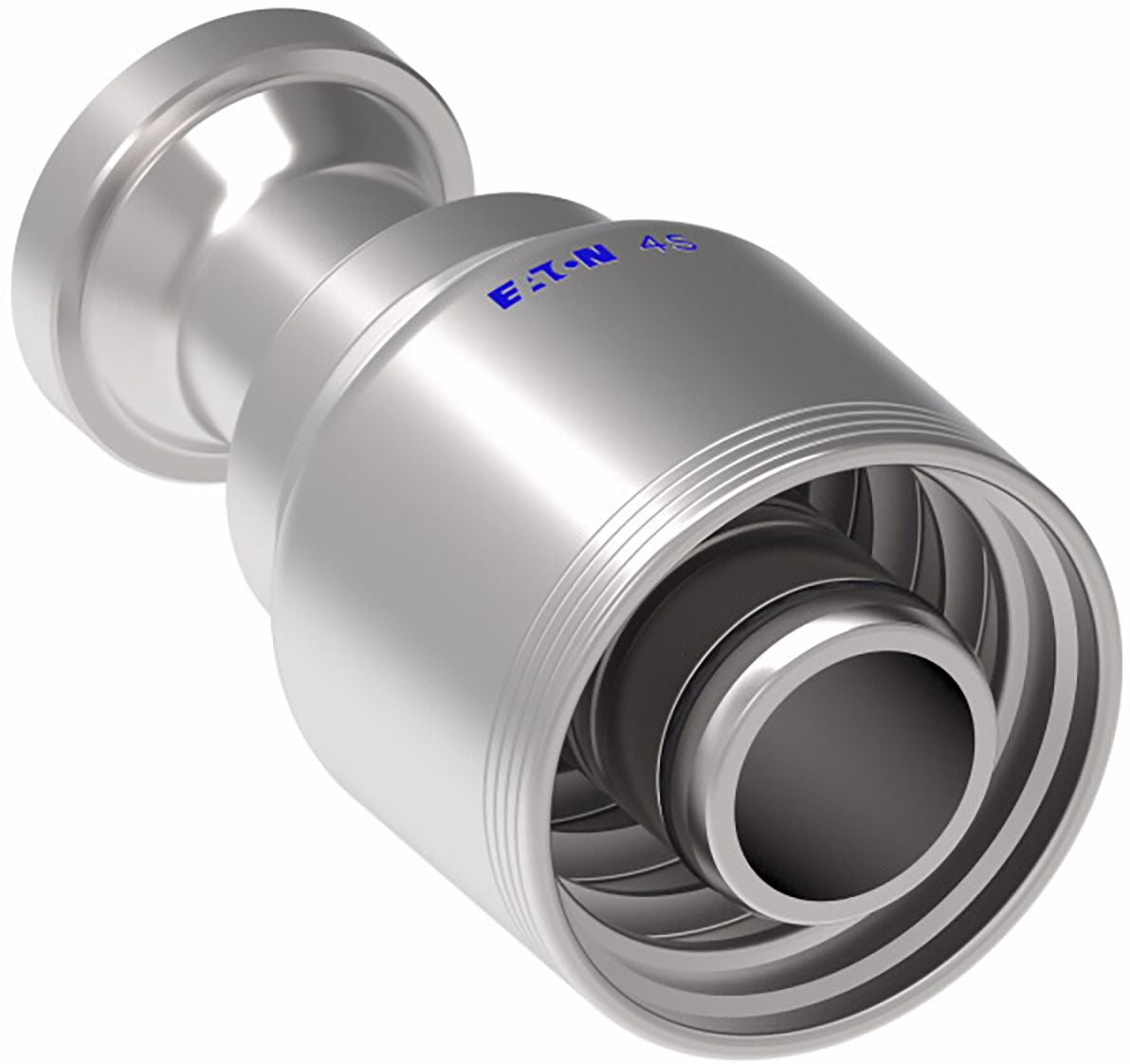

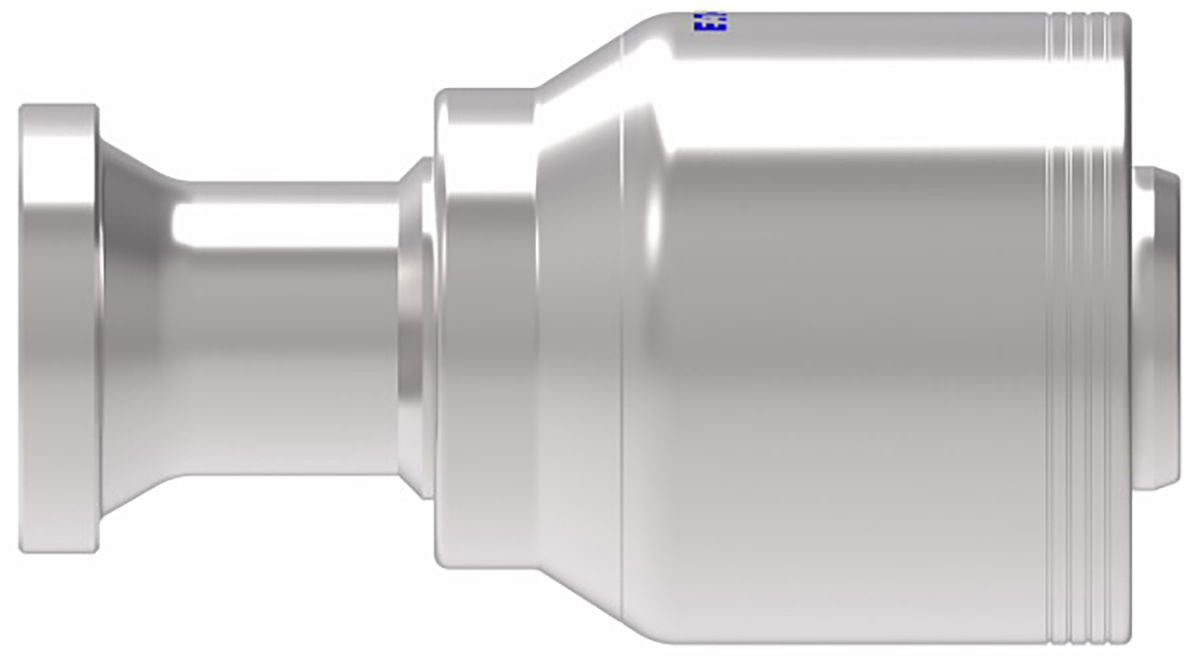

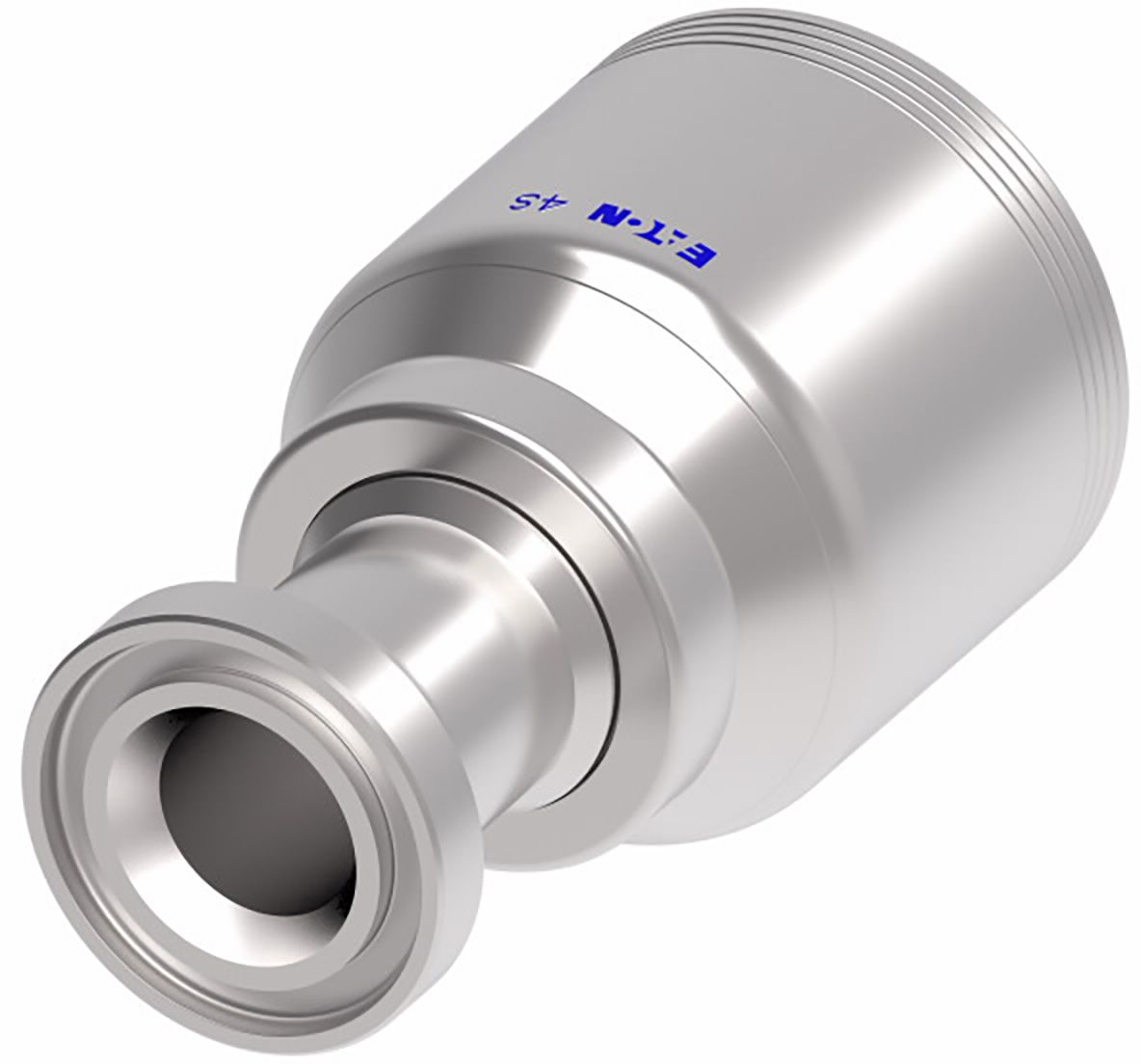

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Flanged SAE Code 61, 1-1/4 (-20) x 2.81 (-32)
(Pack of
1)
SKU:1543081 Item#: 1543081
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, JIC 37 Deg Flare 734773065
Item#: 1644498
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734733245
Item#: 1644489
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734773845
Item#: 1644488
$0.00
Couldn't load pickup availability
Z Series/1A Series Crimp-On Hose End 1/4" x 9/16-18
Item#: 16610
$0.00
Couldn't load pickup availability
Spacer Ring Green/White
Item#: 1555805
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN Green
Item#: P27171
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11952
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Item#: KT14094
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
Item#: P64047M01
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Item#: P58130
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
Item#: P85218
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
Item#: 1457513
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543081 |
|---|---|
| Manufacturer Model #: | 4S32FL20 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Fitting End Type | Flanged |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 2.81 (-32) |
| Weatherhead No. | 4S32FL20 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.96 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.09 lb |
