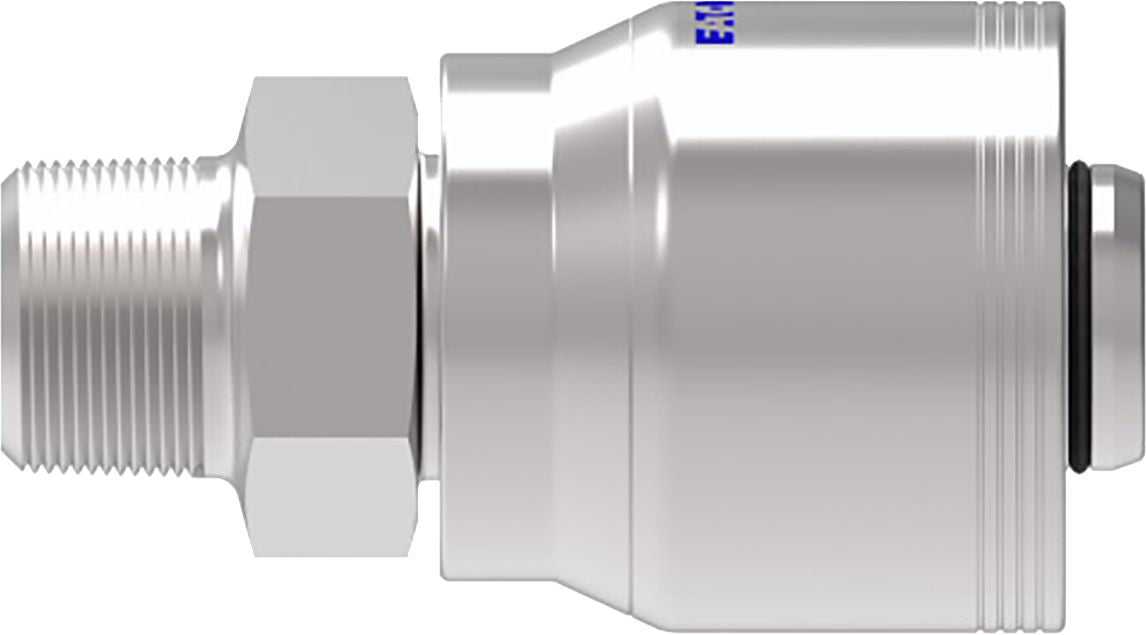

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Male Rigid Pipe NPTF, 1/2 (-8) x 1/2-14 (-8)
(Pack of
2)
SKU:1554252 Item#: 1554252
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, O-Ring Face Seal 734773845
Item#: 1644488
$0.00
Couldn't load pickup availability
Power Crimp Coupler, Ferrule 726607825
Item#: 1644518
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Spacer Ring Red
Item#: 1555828
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HNBR Green
Item#: KT14447
$0.00
Couldn't load pickup availability
Spacer Ring Yellow/White
Item#: 1555835
$0.00
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
Item#: KL115
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 5/8 x 1/2-14
Item#: 27185
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
Item#: 64353
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Item#: KT13687
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
Item#: P86117
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Item#: P58130
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1554252 |
|---|---|
| Manufacturer Model #: | 4SA8MP8 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/2 (-8) " |
| Dash Size | -8 |
| Gender | Male |
| Fitting End Type | NPTF |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1/2-14 (-8) |
| Weatherhead No. | 4SA8MP8 |
| SAE Code | J1176 |
| Hex Size | 0.875 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.56 " |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.7055 lb |
