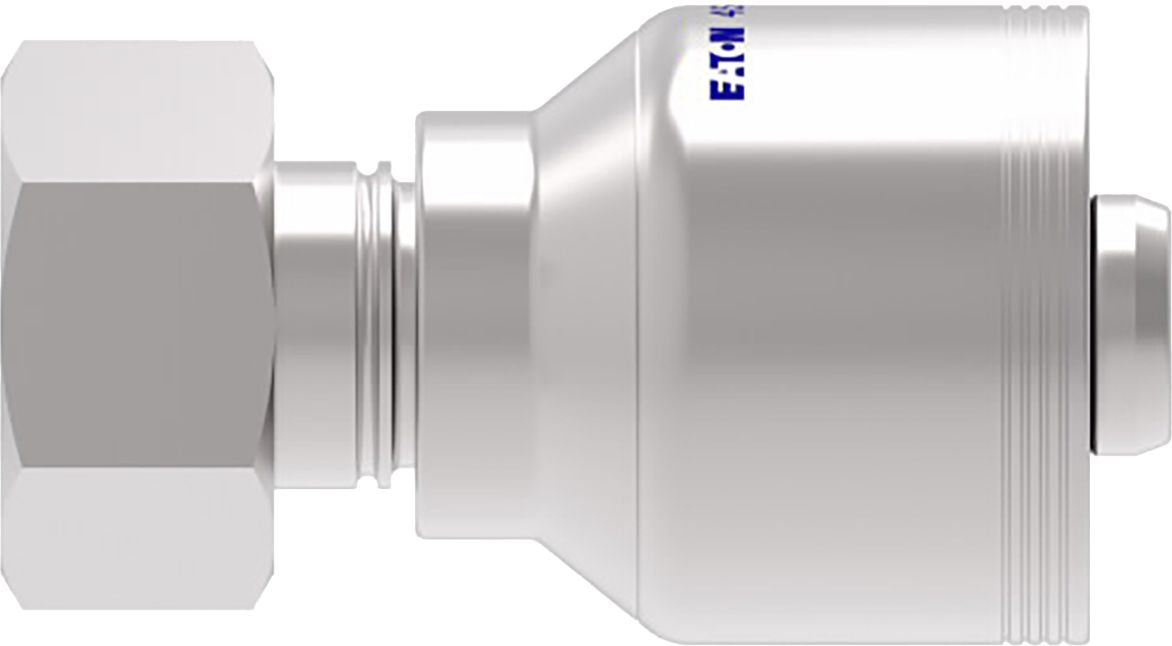

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel DIN 24° Seat, Light Pattern, 1/2" x M30-2
(Pack of
2)
SKU:1554227 Item#: 1554227
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
06Z-BC08- Hose End (perm) 1S/1R Str Male STC
Item#: 1179575
$0.00
Couldn't load pickup availability
06Z-BC68- Hose End (perm) 1S/1R 90 D Male STC
Item#: 1178409
$0.00
Couldn't load pickup availability
08Z-BC68- Hose End (perm) 1S/1R 90 D Male STC
Item#: 1174471
$0.00
Couldn't load pickup availability
Metric Female Flareless Sleeve 733204215
Item#: 1647577
$0.00
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
Item#: 57338
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 1/2 x 1/16"
Item#: P27050
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Item#: P63942M01
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
Item#: P64107M01
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11948
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
Item#: 1500739
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Item#: P15600
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Item#: P85262
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1554227 |
|---|---|
| Manufacturer Model #: | 4S20DL8 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/2 (-8) " |
| Dash Size | -8 |
| Gender | Female |
| Fitting End Type | Metric |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | M30 x 2.0 |
| Weatherhead No. | 4S20DL8 |
| SAE Code | J1176 |
| Hex Size | 0.875 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.81 " |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 1.015 lb |
