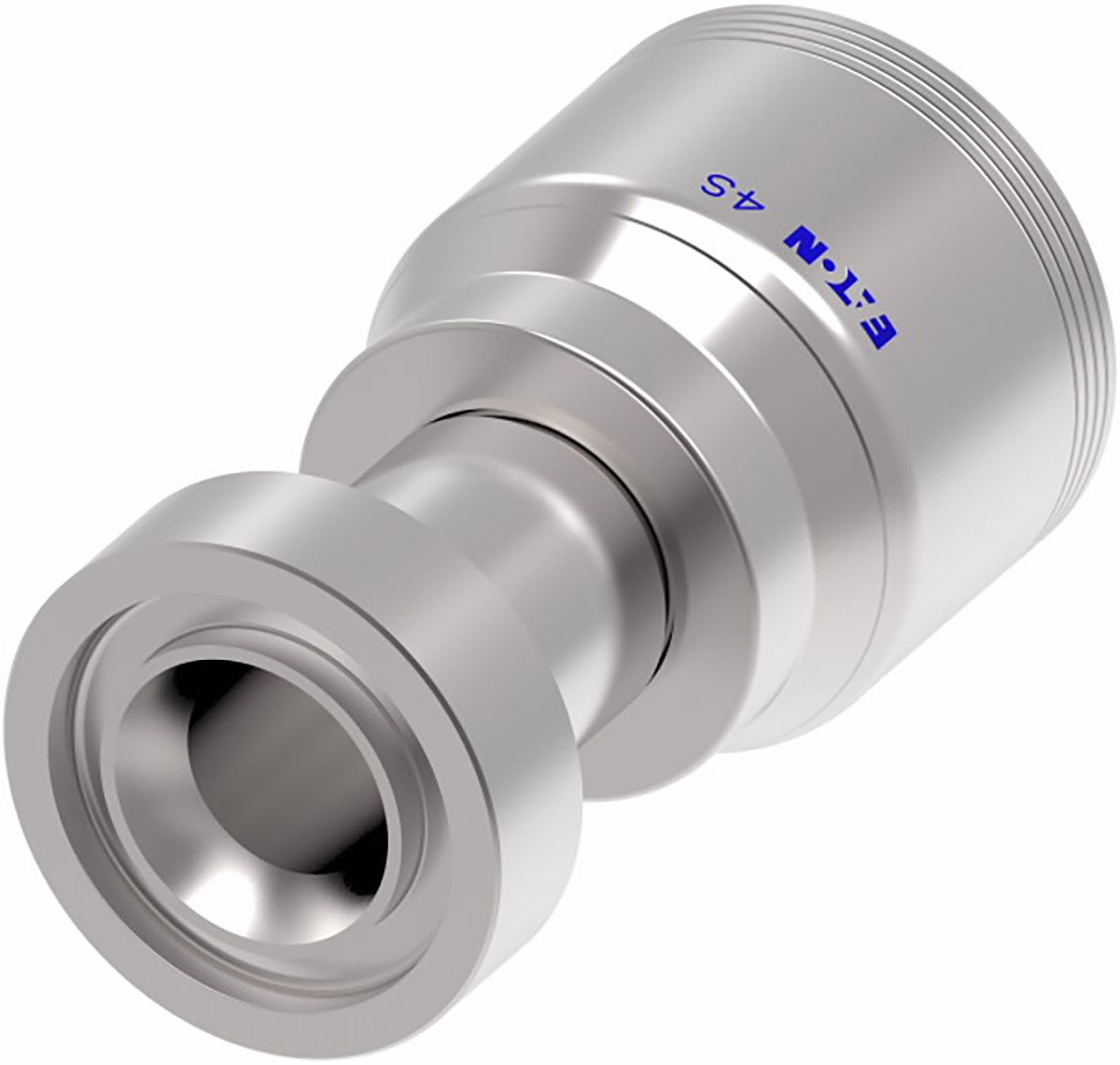

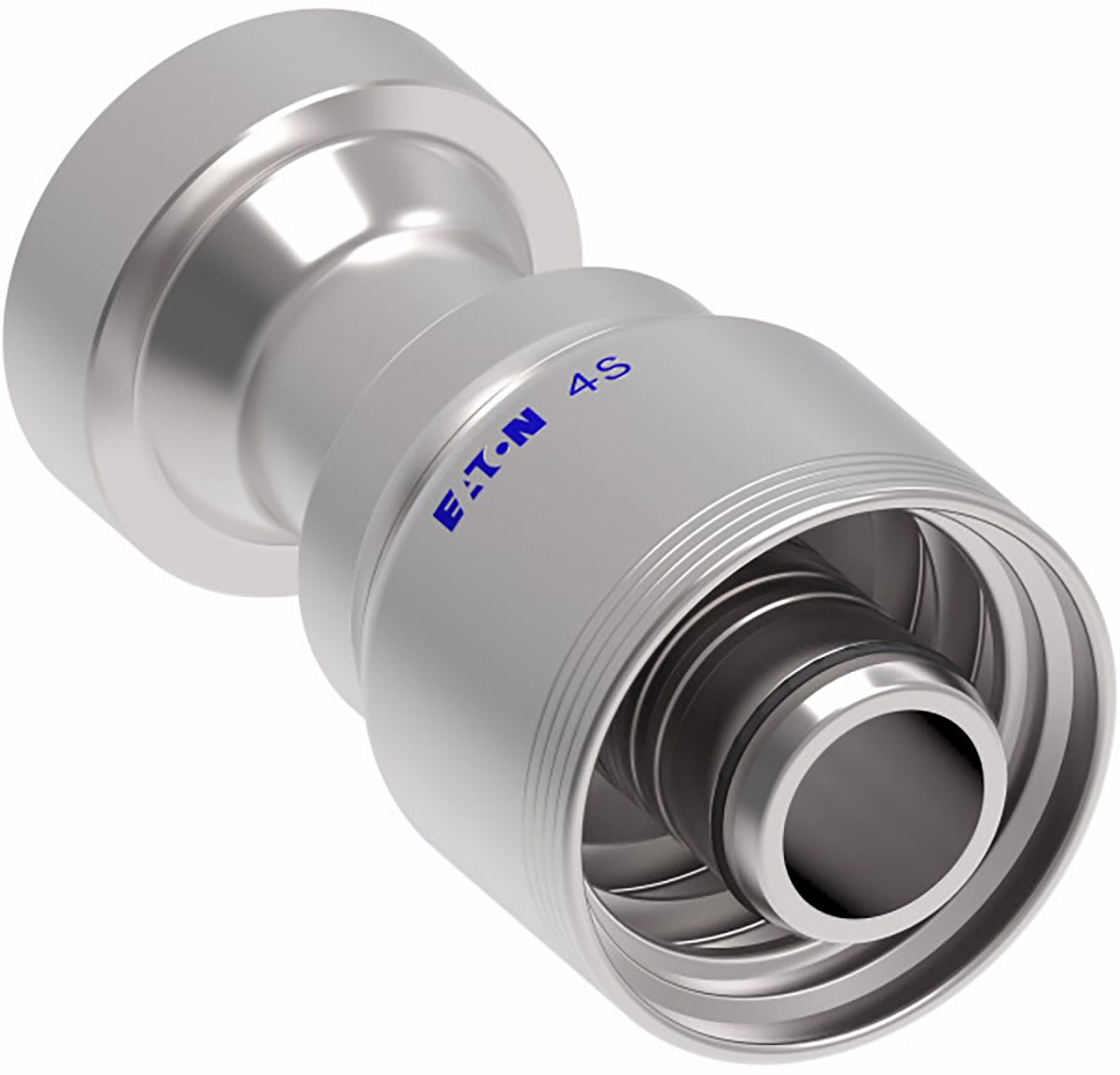

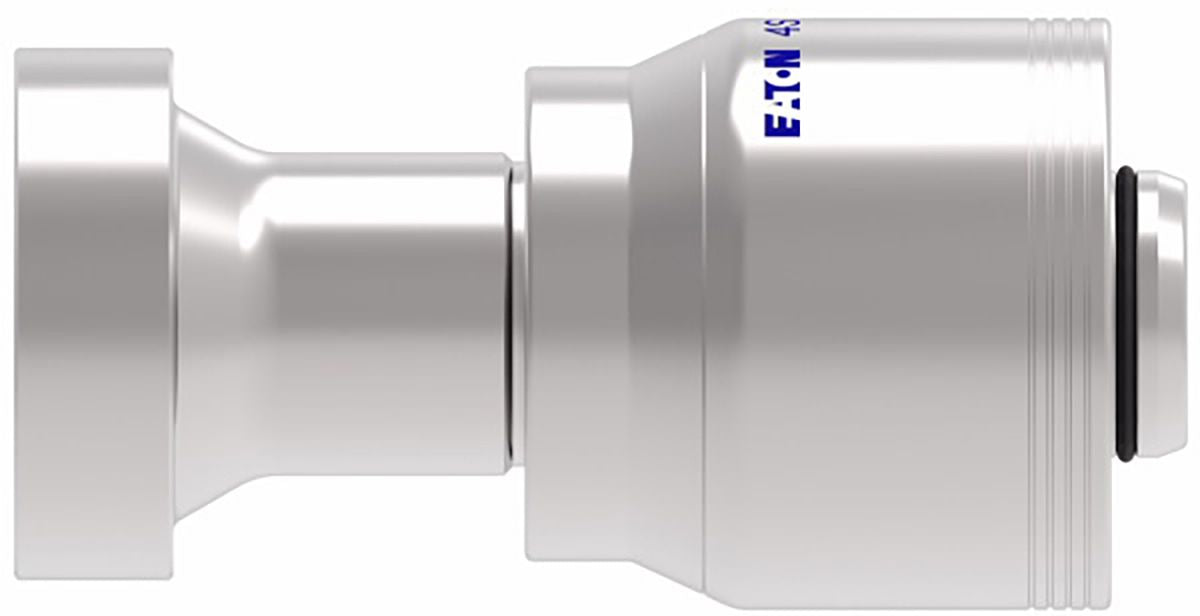

4S Series Crimp-On Hose End 1 x 1.87"
(Pack of
1.0)
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
MegaCrimp Coupler, Quick-Lok High
Item#: 1644425
Couldn't load pickup availability
MegaCrimp Coupler, Quick-Lok High
Item#: 1644424
Couldn't load pickup availability
MegaCrimp Coupler, O-Ring Face Seal
Item#: 1644567
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 1" x 100'
Item#: 1690530
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 50'
Item#: 1690632
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 5/8" x 100'
Item#: 1690527
Couldn't load pickup availability
Rubber Air Hose Whip / Snubber 1/2" x 5'
Item#: 1690597
Couldn't load pickup availability
Rubber Air Hose Bulk 1/4" x 300'
Item#: 1690567
Couldn't load pickup availability
Rubber Air Hose Assembly 1/2" x 100'
Item#: 1690560
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Item#: P85035
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Item#: P59732
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Item#: 1513544
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543075 |
|---|---|
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Fitting End Type | Flanged |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1.87 (-16) |
| Weatherhead No. | 4S16CT16 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 4.02 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.3 lb |
Product Restrictions
