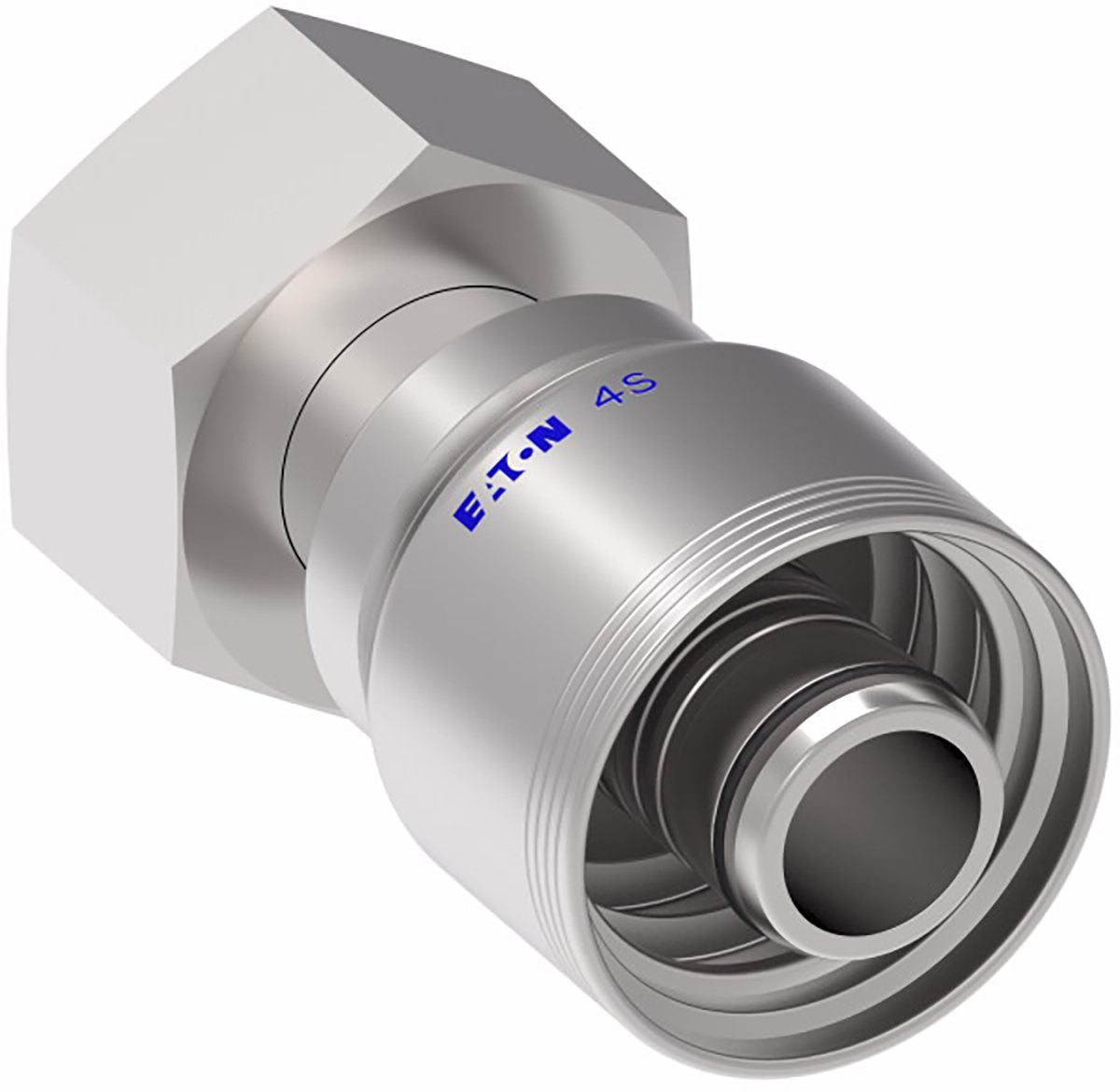

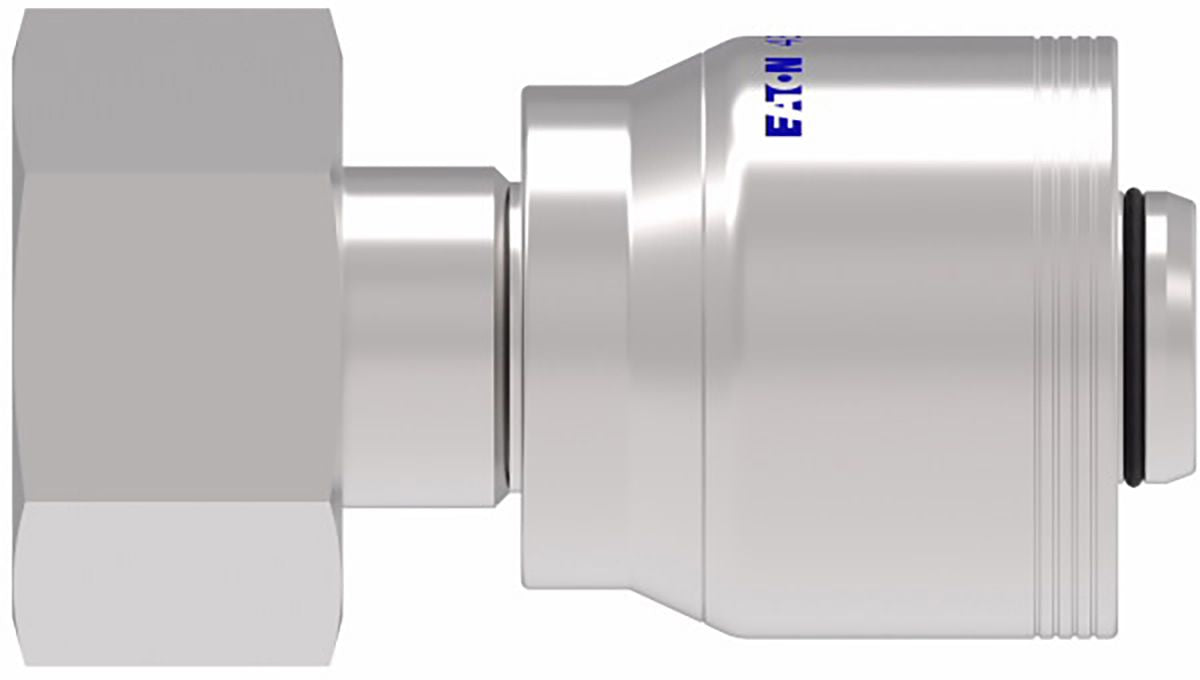

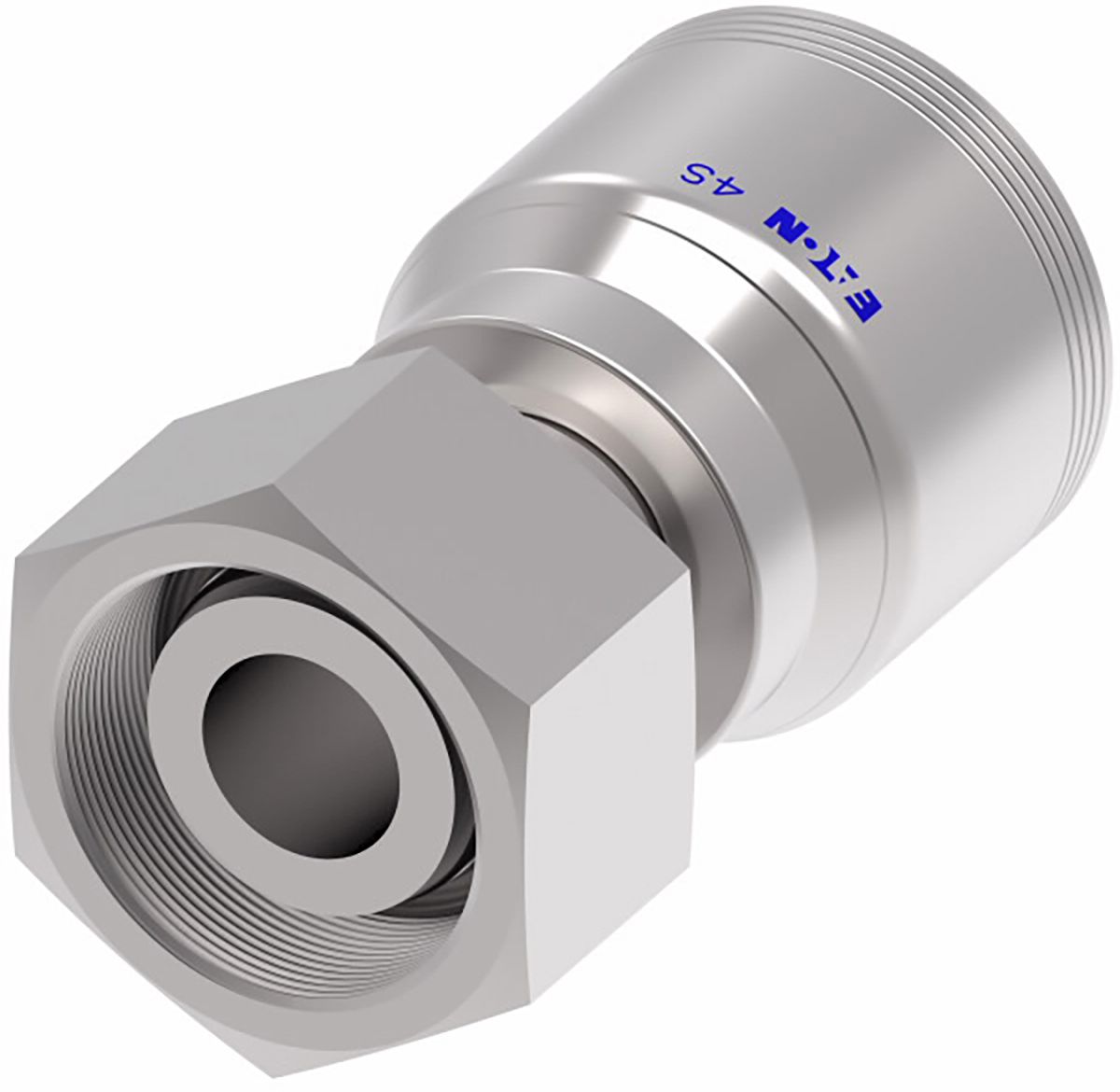

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel DIN 24° Seat, Heavy Pattern, 1" x M42-2
(Pack of
1)
SKU:1542994 Item#: 1542994
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Power Crimp Coupler, Ferrule 726607825
Item#: 1644518
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
Item#: 1644600
$0.00
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
Item#: 88314KH
$0.00
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.82" x 50'
Item#: 27877 08
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
Item#: 1562975
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
Item#: 27201
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
Item#: 27202
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Item#: 86728
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Item#: 1420584
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
Item#: P18348
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
Item#: P13787
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1542994 |
|---|---|
| Manufacturer Model #: | 4S25DS16 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Female |
| Fitting End Type | Metric |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | M42 x 2.0 |
| Weatherhead No. | 4S25DS16 |
| SAE Code | J1176 |
| Hex Size | 1.9685 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.02 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.56 lb |
