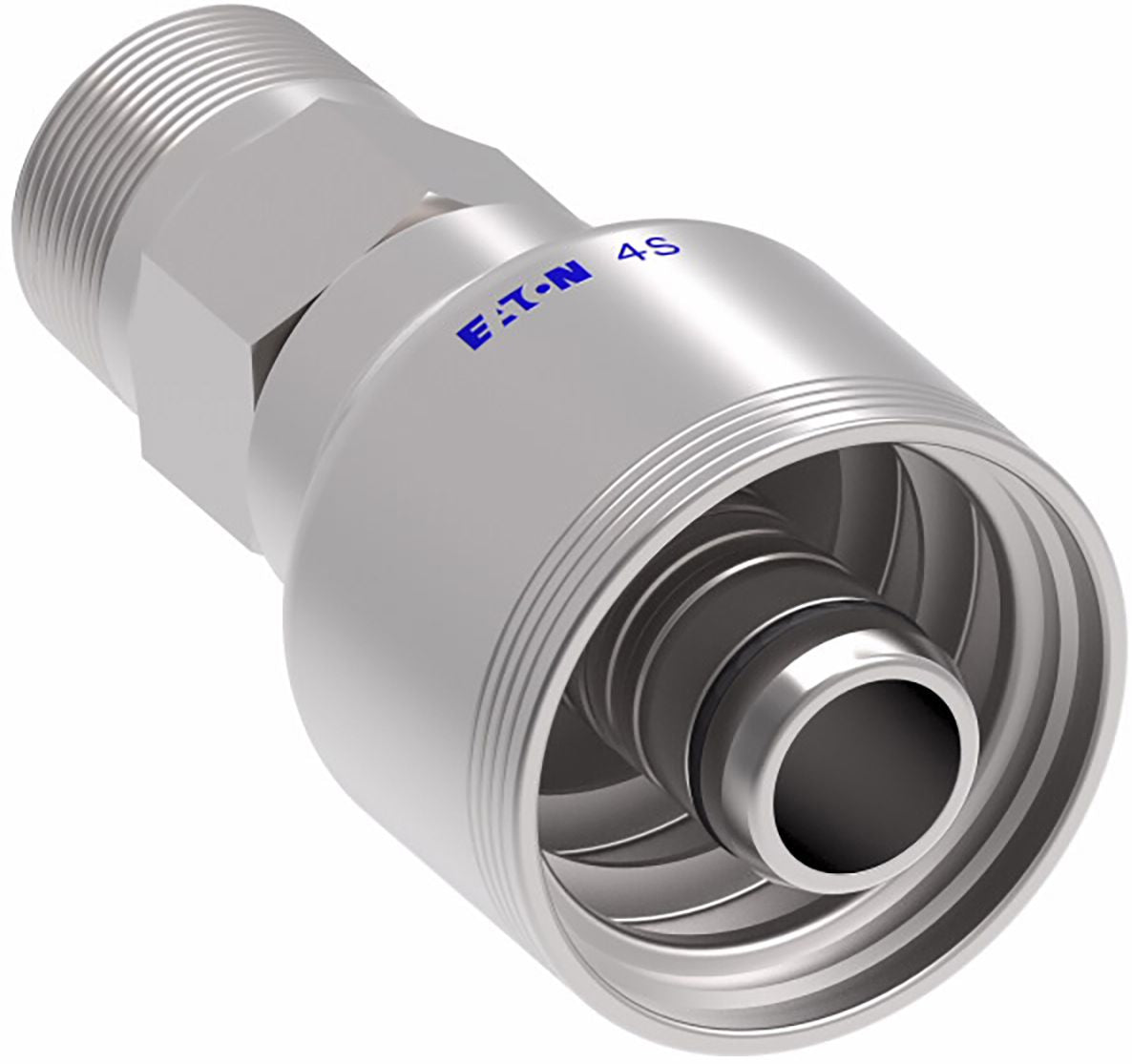

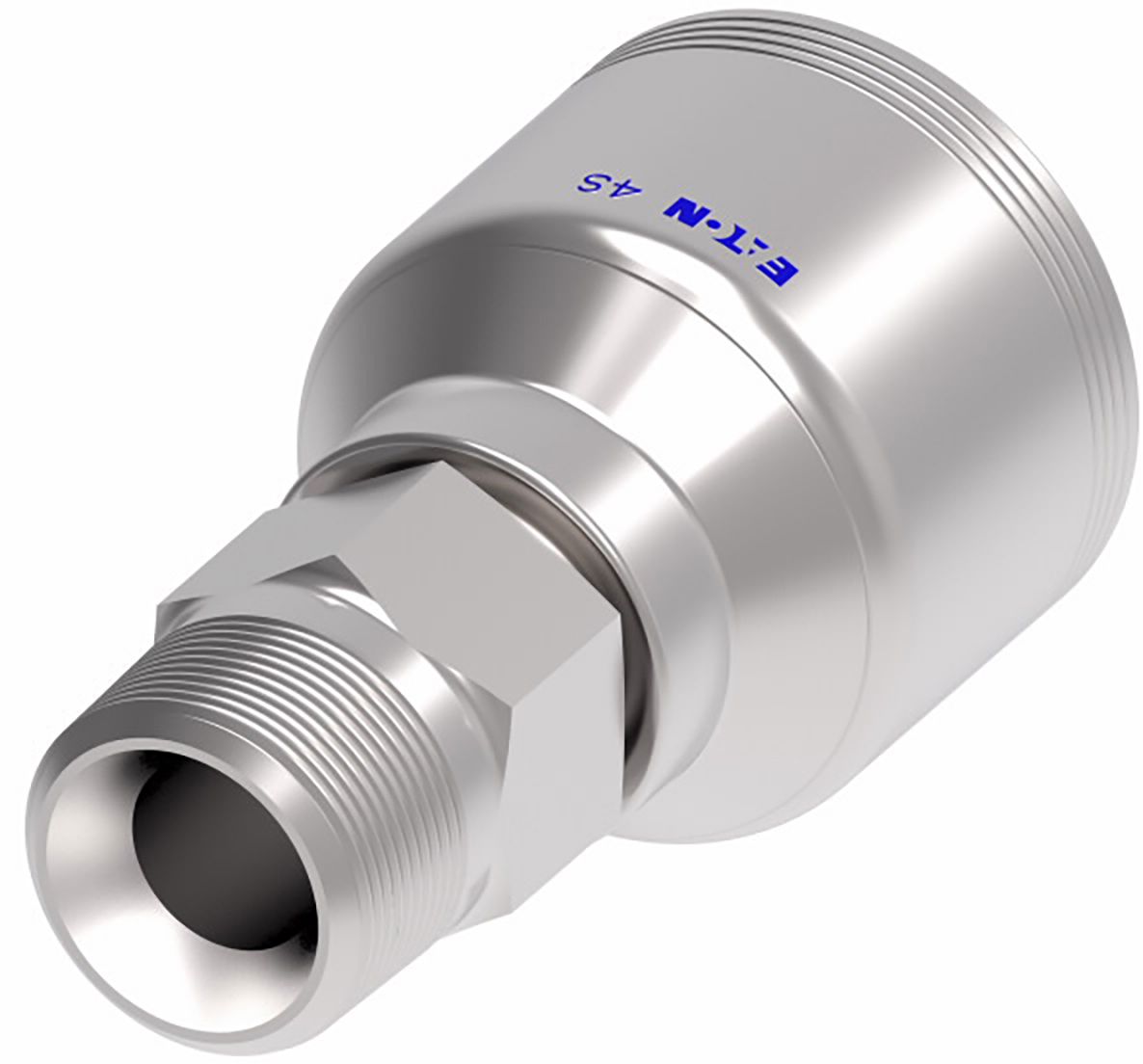

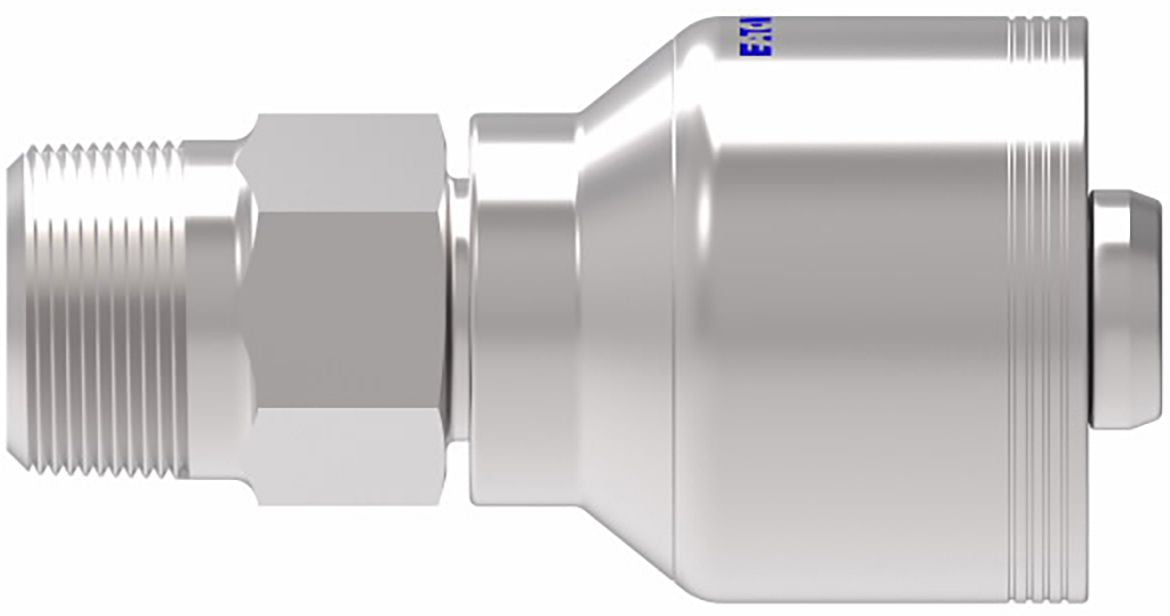

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Male Rigid Pipe NPTF, 3/4 (-12) x 1-11-1/2 (-16)
(Pack of
2)
SKU:1543093 Item#: 1543093
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, O-Ring Face Seal 734773845
Item#: 1644488
$0.00
Couldn't load pickup availability
Power Crimp Coupler, Ferrule 726607825
Item#: 1644518
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Braided Collet Orange
Item#: 1555849
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 0.509 x 0.655"
Item#: KT13009
$0.00
Couldn't load pickup availability
Z Series/1A Series Crimp-On Hose End 1/4" x G-3/8-19
Item#: 20739
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Item#: 27205
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
Item#: KT15124
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
Item#: 1489993
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Item#: P85035
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Item#: P60477
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
Item#: 1446663
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543093 |
|---|---|
| Manufacturer Model #: | 4SA16MP12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Male |
| Fitting End Type | NPTF |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-11-1/2 (-16) |
| Weatherhead No. | 4SA16MP12 |
| SAE Code | J1176 |
| Hex Size | 1.375 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.94 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.6 lb |
