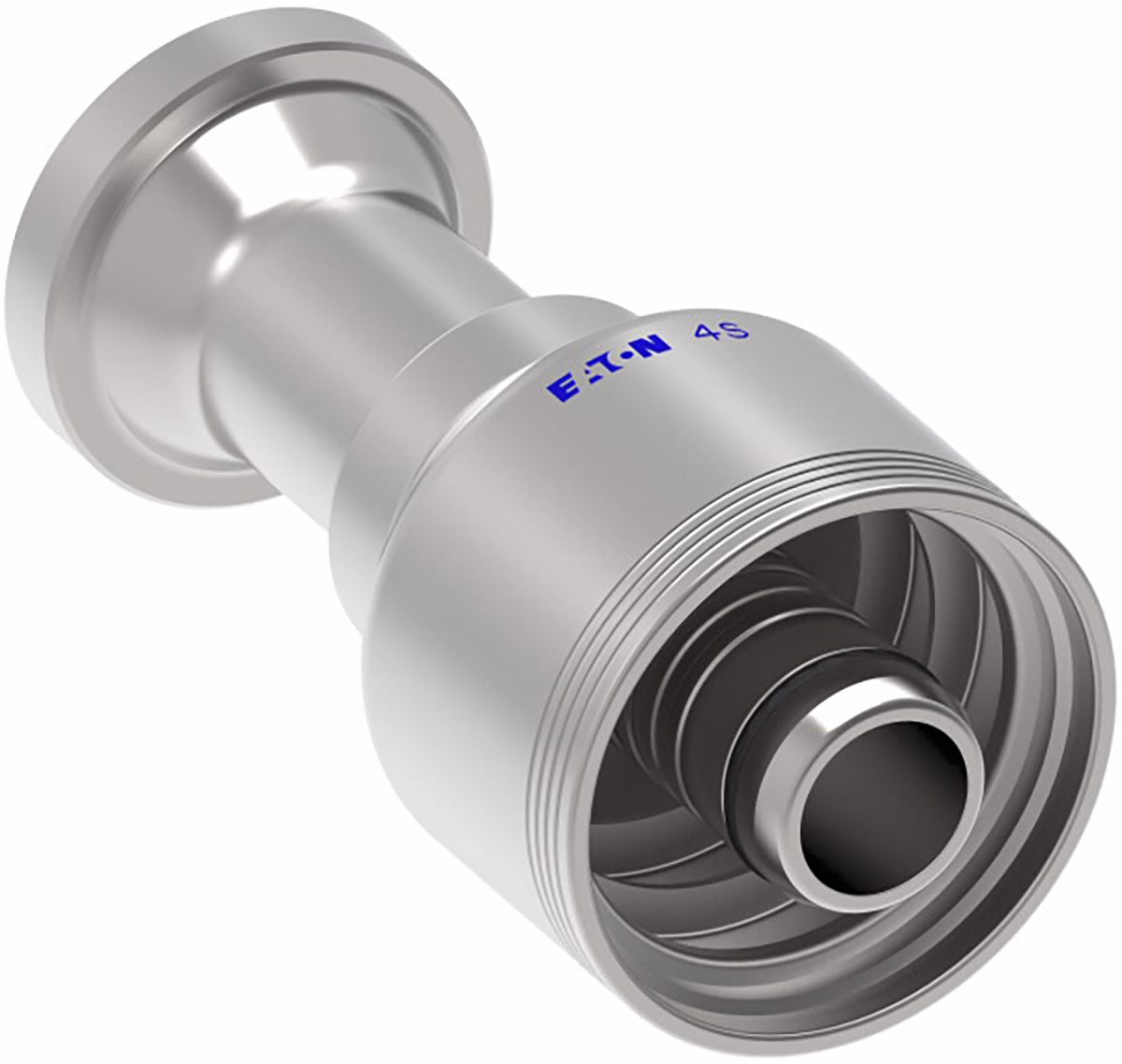

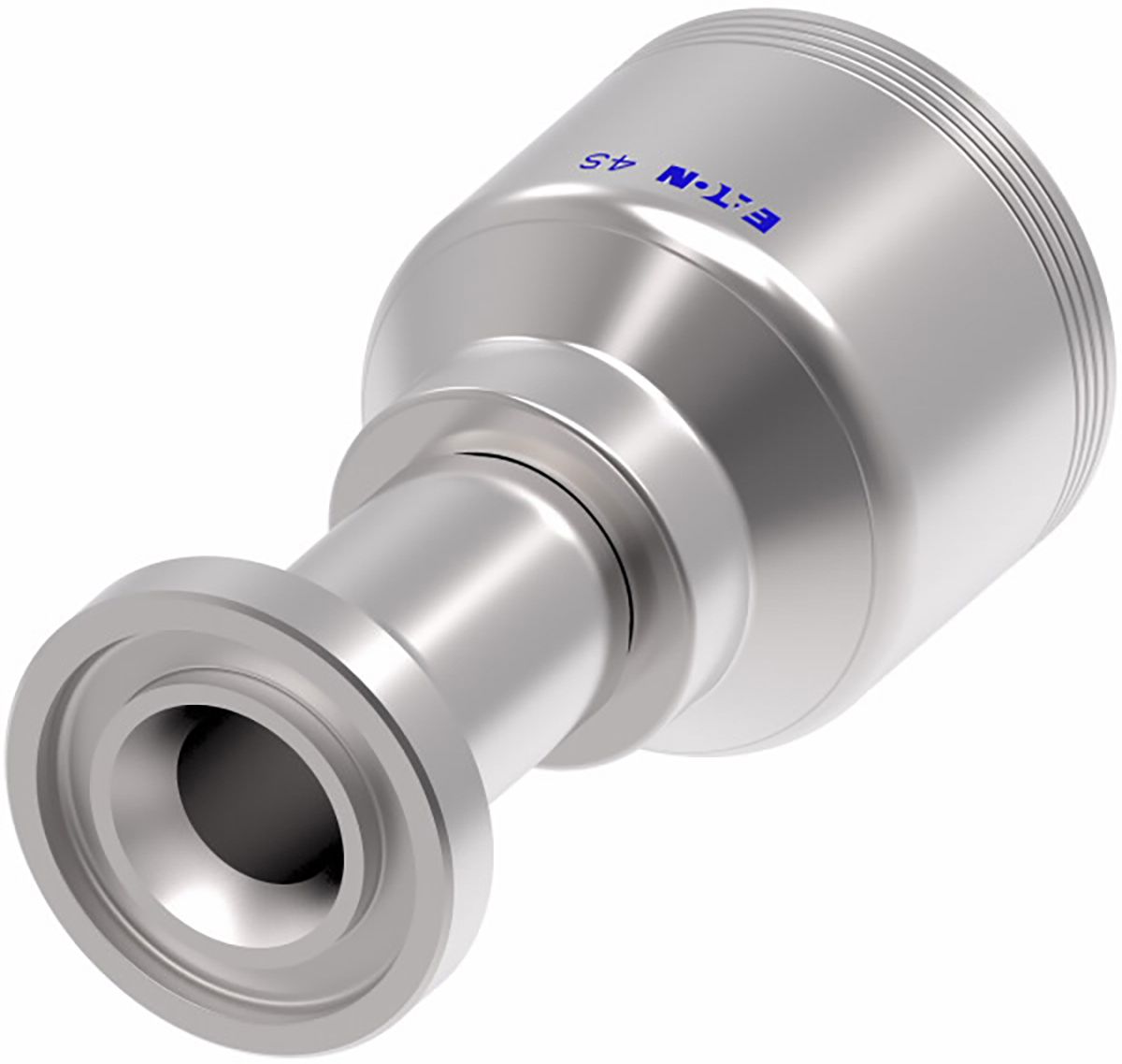

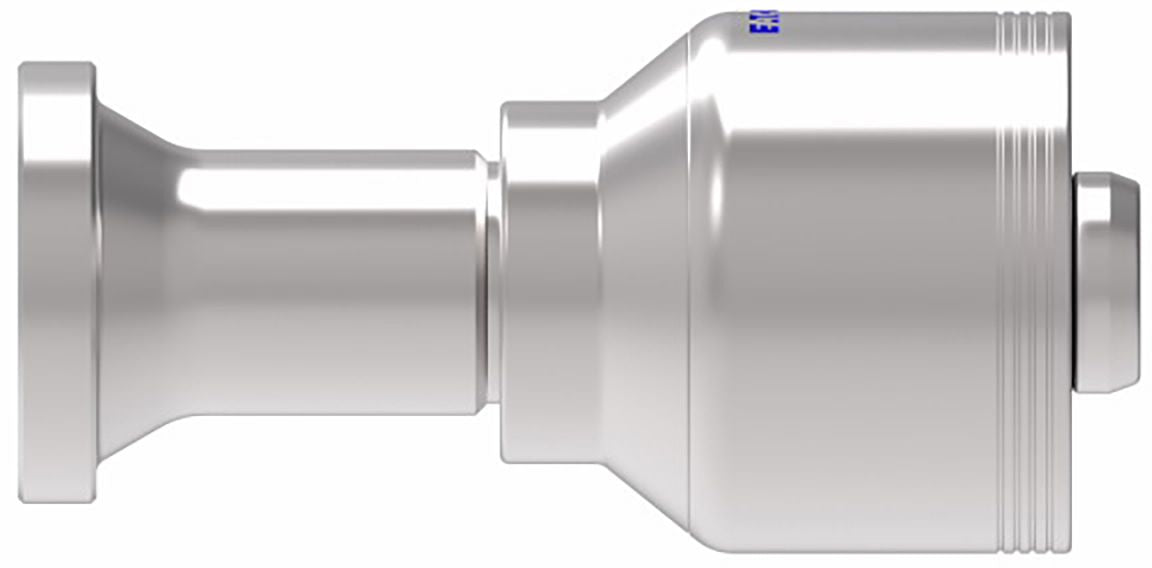

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Flanged SAE Code 61, 3/4 (-12) x 1.75 (-16)
(Pack of
1)
SKU:1542968 Item#: 1542968
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734745245
Item#: 1644502
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734724245
Item#: 1644491
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734742245
Item#: 1644500
$0.00
Couldn't load pickup availability
Z Series/1A Series Crimp-On Elbow Flare 90° 1/4" x 9/16-18
Item#: 16645
$0.00
Couldn't load pickup availability
Spacer Ring Pink/White
Item#: 1555772
$0.00
Couldn't load pickup availability
Z Series/1A Series Crimp-On Hose End 1/2" x 1/2-14
Item#: 16584
$0.00
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
Item#: KT14463
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Item#: 54558
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Item#: KT14094
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Item#: KT11580
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Item#: KT13984
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Item#: KT13687
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1542968 |
|---|---|
| Manufacturer Model #: | 4S16FL12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Fitting End Type | Flanged |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1.75 (-16) |
| Weatherhead No. | 4S16FL12 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.13 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 0.84 lb |
