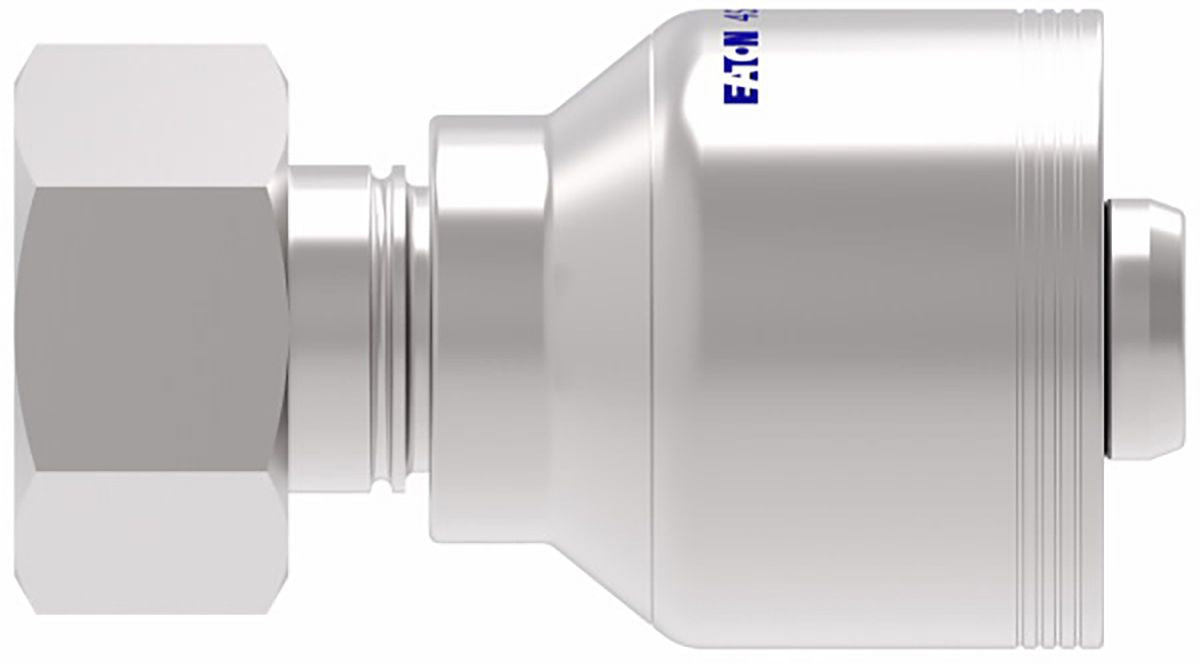

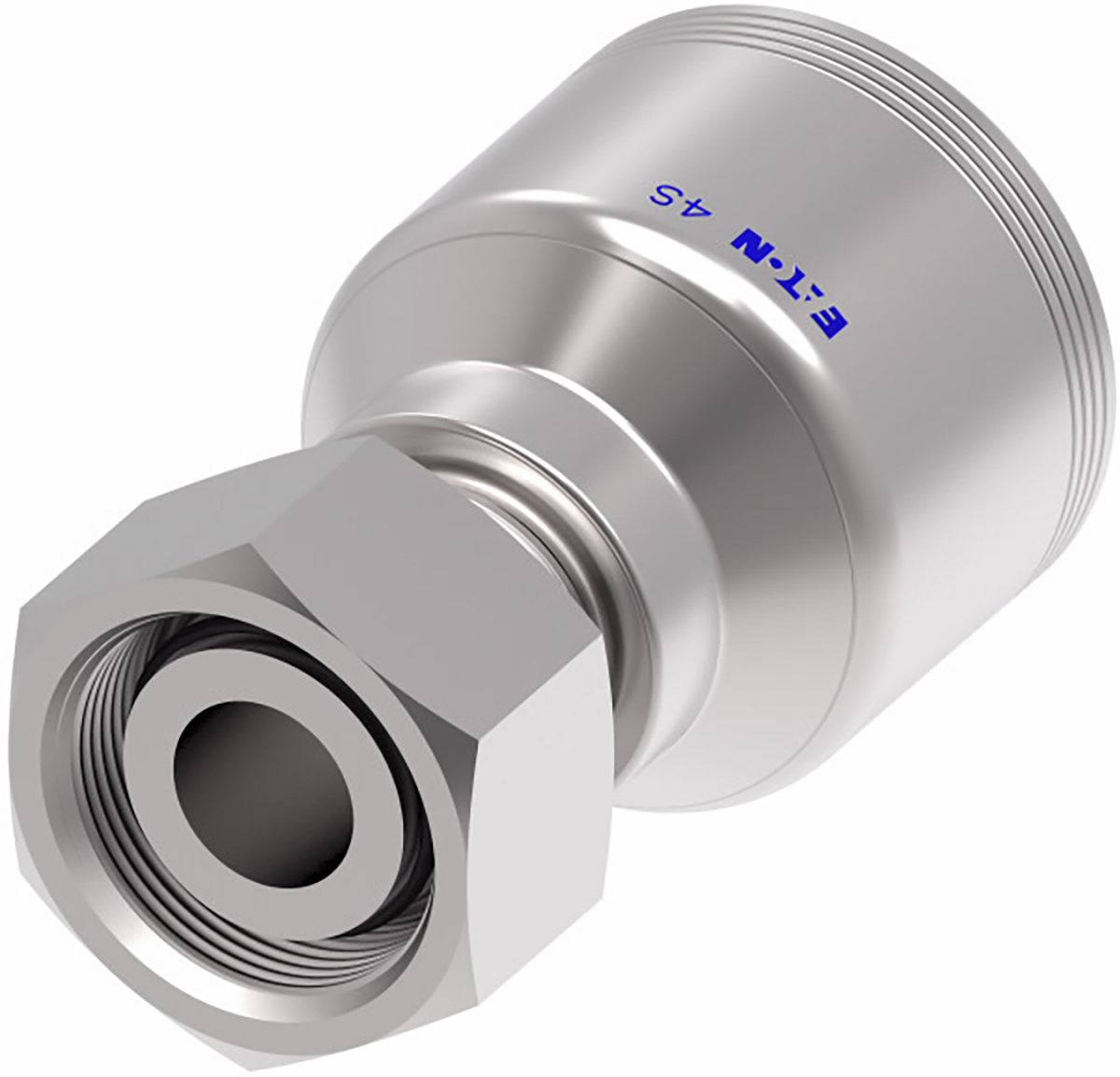

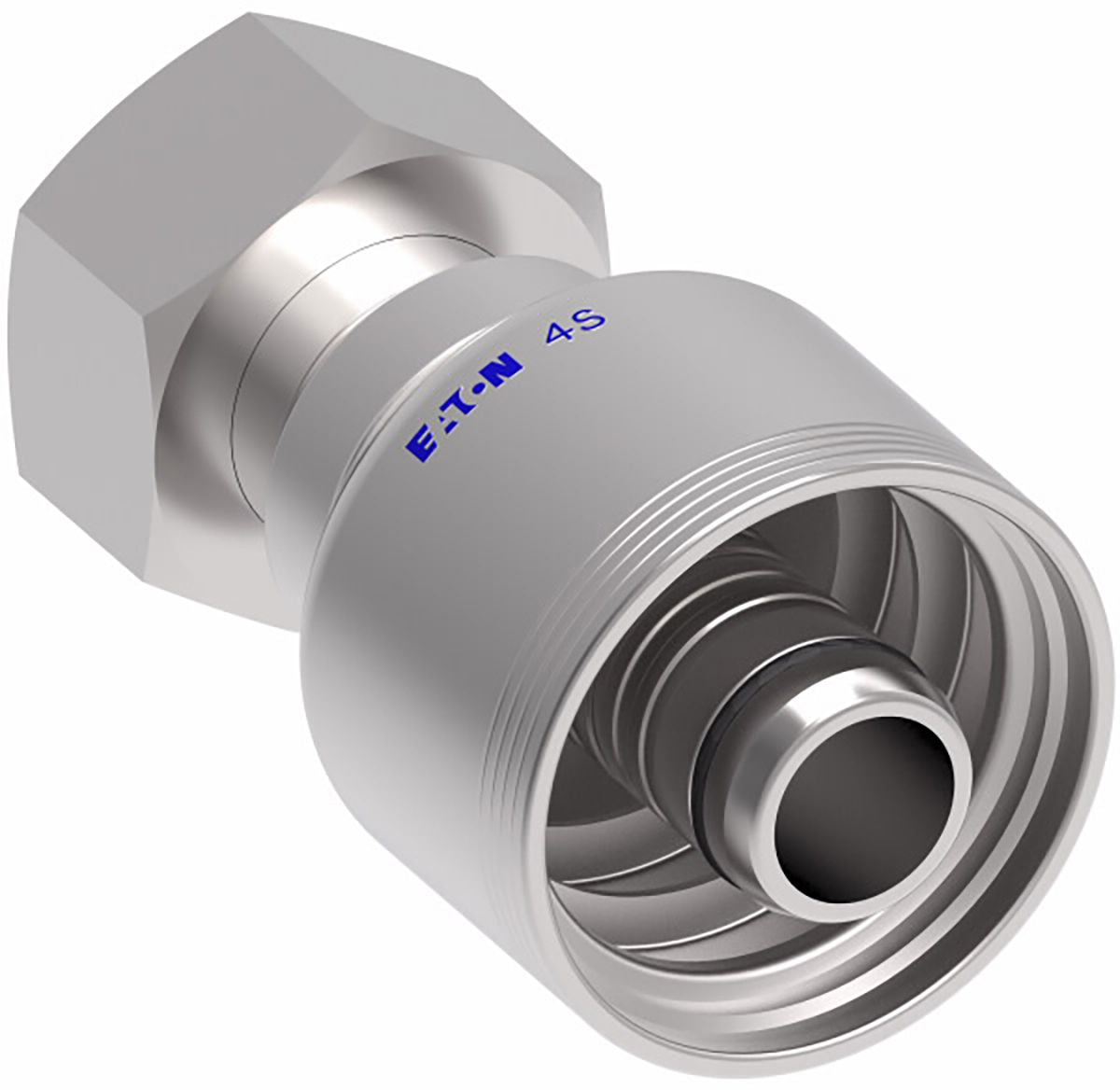

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel DIN 24° Seat, Light Pattern, 3/4" x M30-2
(Pack of
1)
SKU:1542985 Item#: 1542985
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Valve Core 210VC 733204045
Item#: 1641222
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, SAE Tube O-Ring Nut 73320425
Item#: 1644084
$0.00
Couldn't load pickup availability
4T Series Crimp-On Hose End 1/4" x 1/4-18
Item#: 1692579
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Item#: 62379
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 8 x 3-1/2" Black
Item#: 62378
$0.00
Couldn't load pickup availability
Spacer Ring Brown/White
Item#: 1555813
$0.00
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Item#: 86738
$0.00
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
Item#: P63858M01
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
Item#: P28910M01
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Item#: P85253
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Item#: P85316
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Item#: KT13527
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1542985 |
|---|---|
| Manufacturer Model #: | 4S20DL12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Type | Metric |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | M30 x 2.0 |
| Weatherhead No. | 4S20DL12 |
| SAE Code | J1176 |
| Hex Size | 36 mm |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.56 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 0.77 lb |
