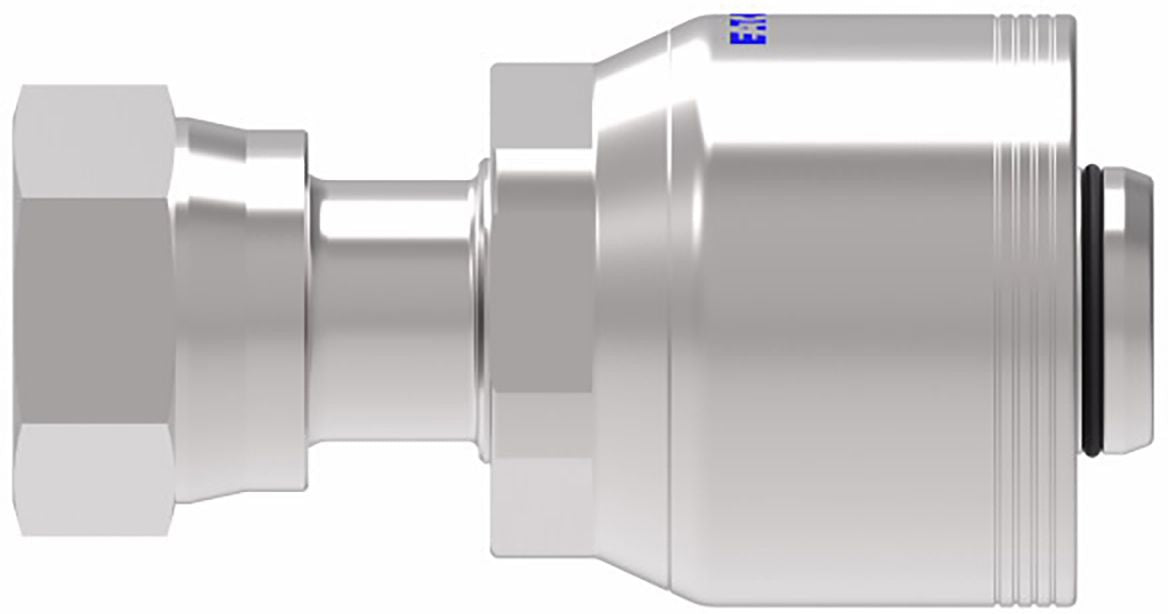

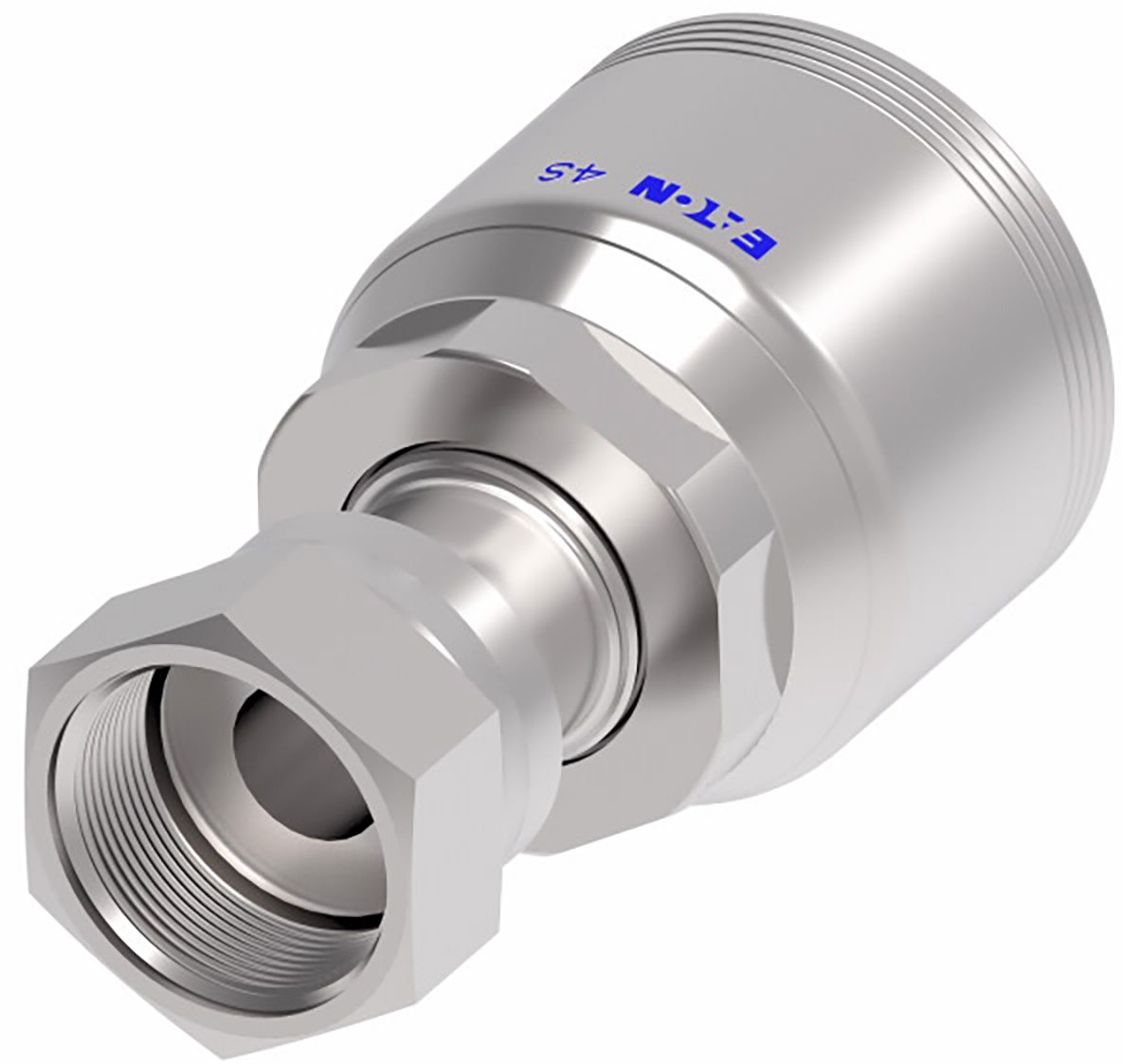

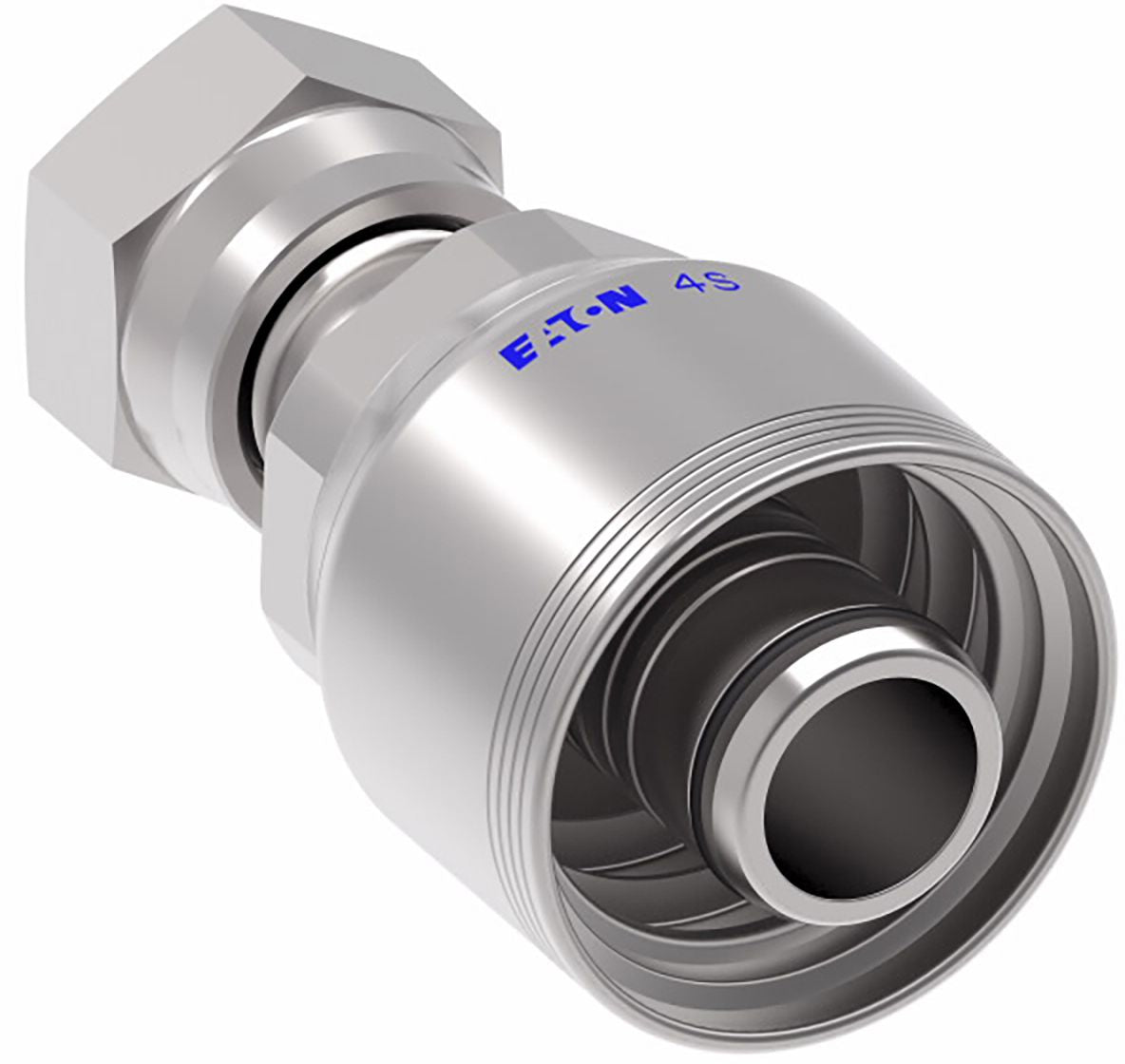

4S Series Crimp-On Hose End Fitting, Carbon Steel, Female Swivel O Ring Seal, Straight, 1" (-16) x 1-7/16-12 (-16)
(Pack of
1)
SKU:1543119 Item#: 1543119
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
PolarSeal AC Coupler, Flareless Tube 733201025
Item#: 1643557
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733200335
Item#: 1641246
$0.00
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
Item#: 88290KH
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 400'
Item#: 1562963A
$0.00
Couldn't load pickup availability
10MFFOR-10MFFOR-10MFFOR Adapters
Item#: 1639202
$0.00
Couldn't load pickup availability
GM005 PCTS Swager Pusher
Item#: 1645666
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11947
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Item#: KT15129
$0.00
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
Item#: P62057M01
$0.00
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
Item#: P23263
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Item#: 1404768
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543119 |
|---|---|
| Manufacturer Model #: | 4SA16FR16 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Female |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-7/16-12 (-16) |
| Weatherhead No. | 4SA16FR16 |
| SAE Code | J1176 |
| Hex Size | 1.625 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.68 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.2 lb |
