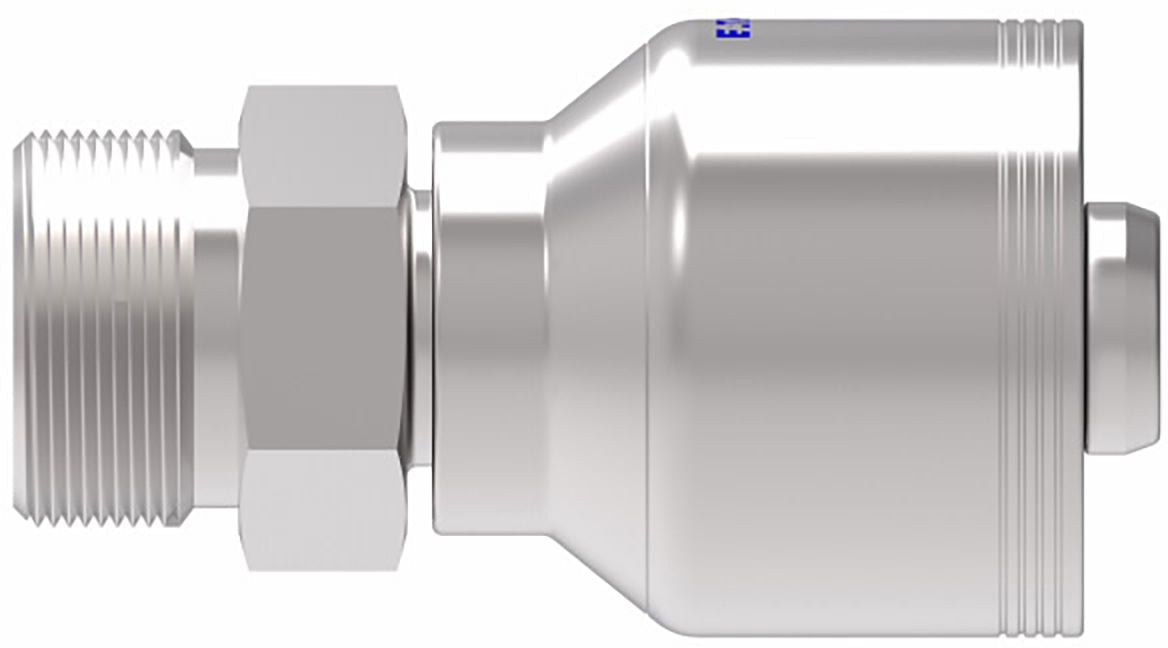

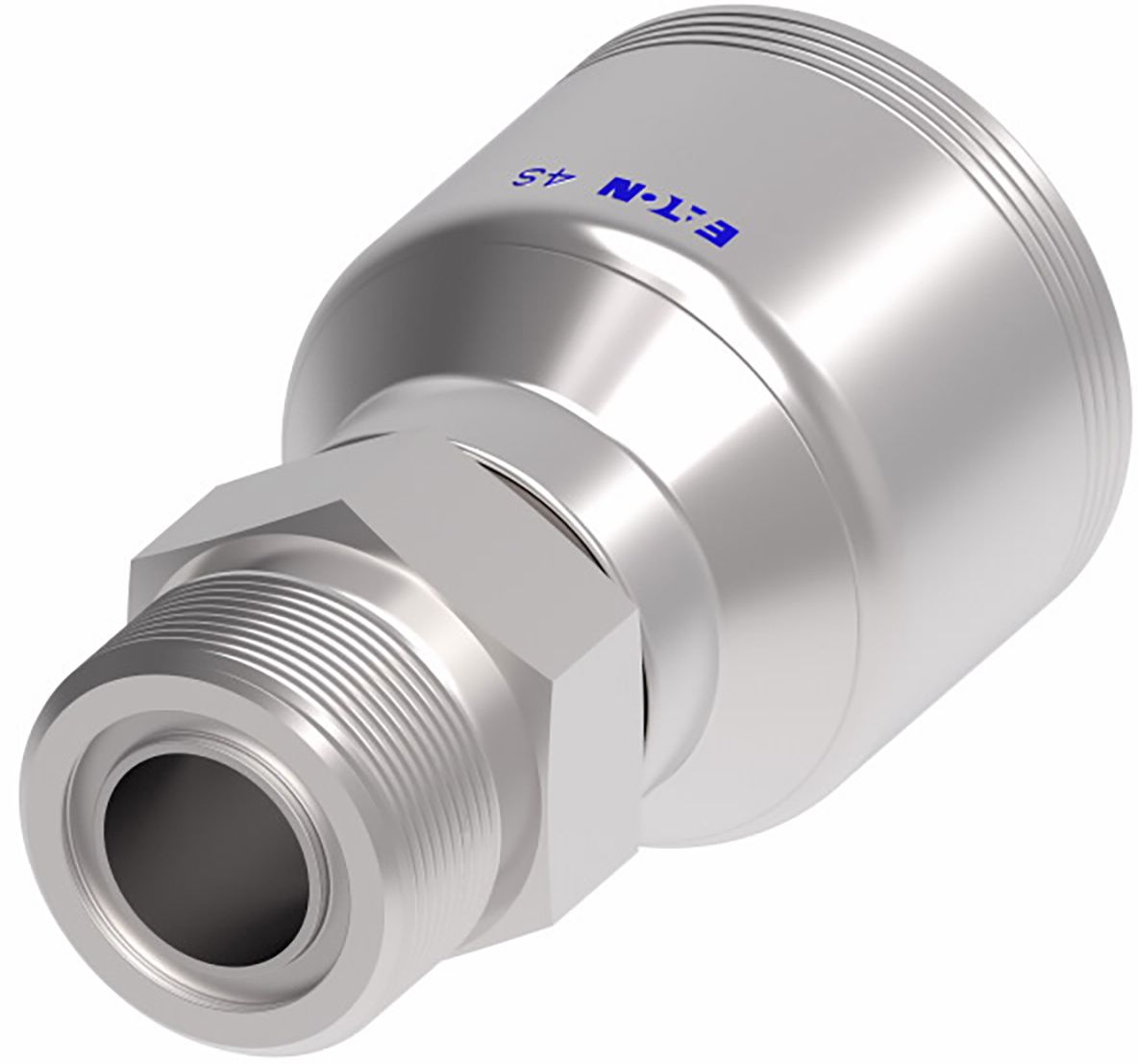

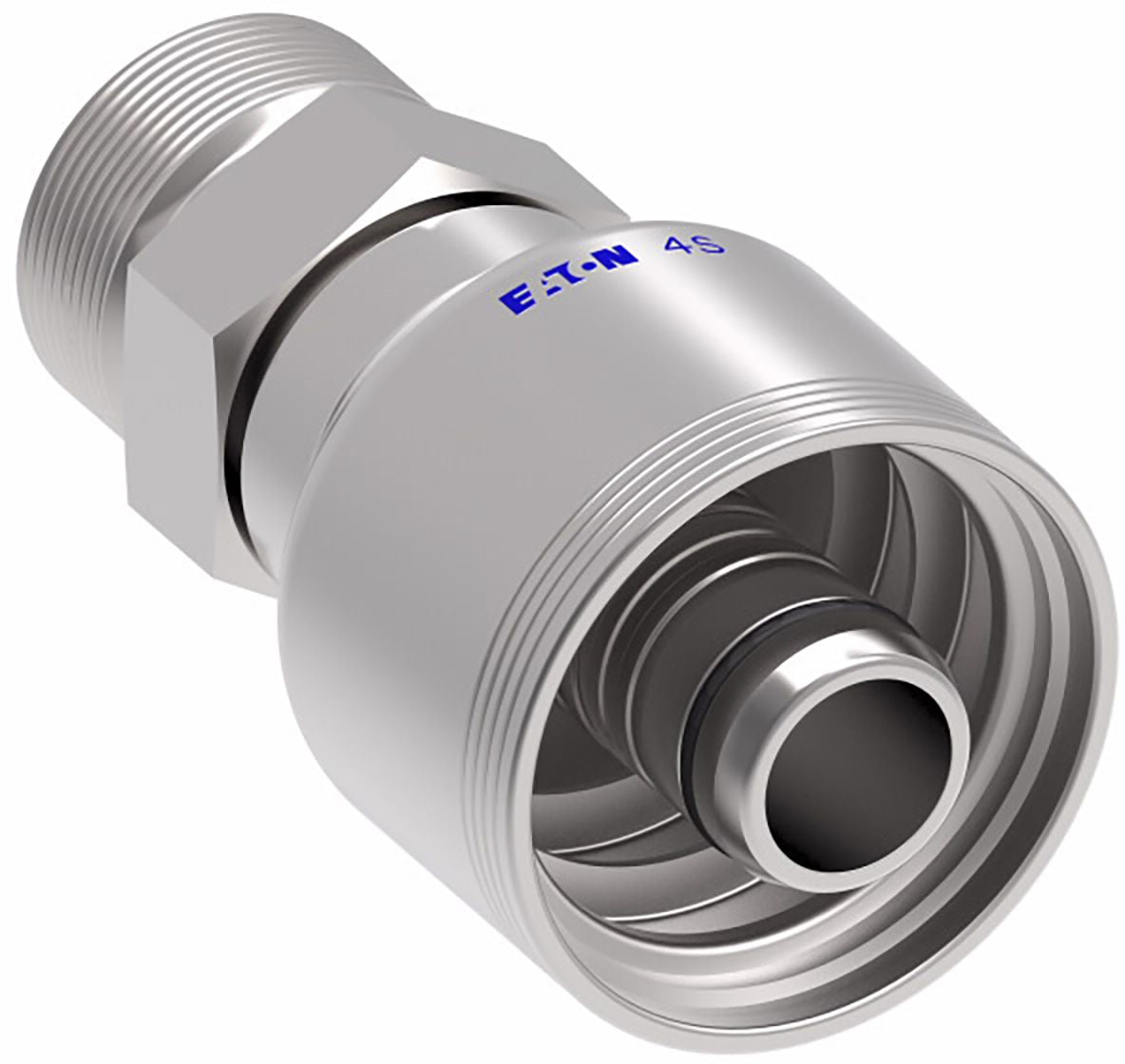

4S Series Crimp-On Hose End Fitting, Carbon Steel, Male Rigid O Ring Seal, Straight, 3/4" (-12) x 1-3/16-12 (-12)
(Pack of
2)
SKU:1543101 Item#: 1543101
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Power Crimp Coupler, Ferrule 726607825
Item#: 1644518
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
Item#: 1644600
$0.00
Couldn't load pickup availability
Spacer Ring Yellow/White
Item#: 1555835
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 10.7 x 15.5mm
Item#: KT13016
$0.00
Couldn't load pickup availability
Spacer Ring Orange/White
Item#: 1555825
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
Item#: 64353
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Item#: 5284
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Item#: 5287
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Item#: P58130
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Item#: P85035
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
Item#: 1457513
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543101 |
|---|---|
| Manufacturer Model #: | 4SA12MR12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Male |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-3/16-12 (-12) |
| Weatherhead No. | 4SA12MR12 |
| SAE Code | J1176 |
| Hex Size | 1.25 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.75 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.49 lb |
