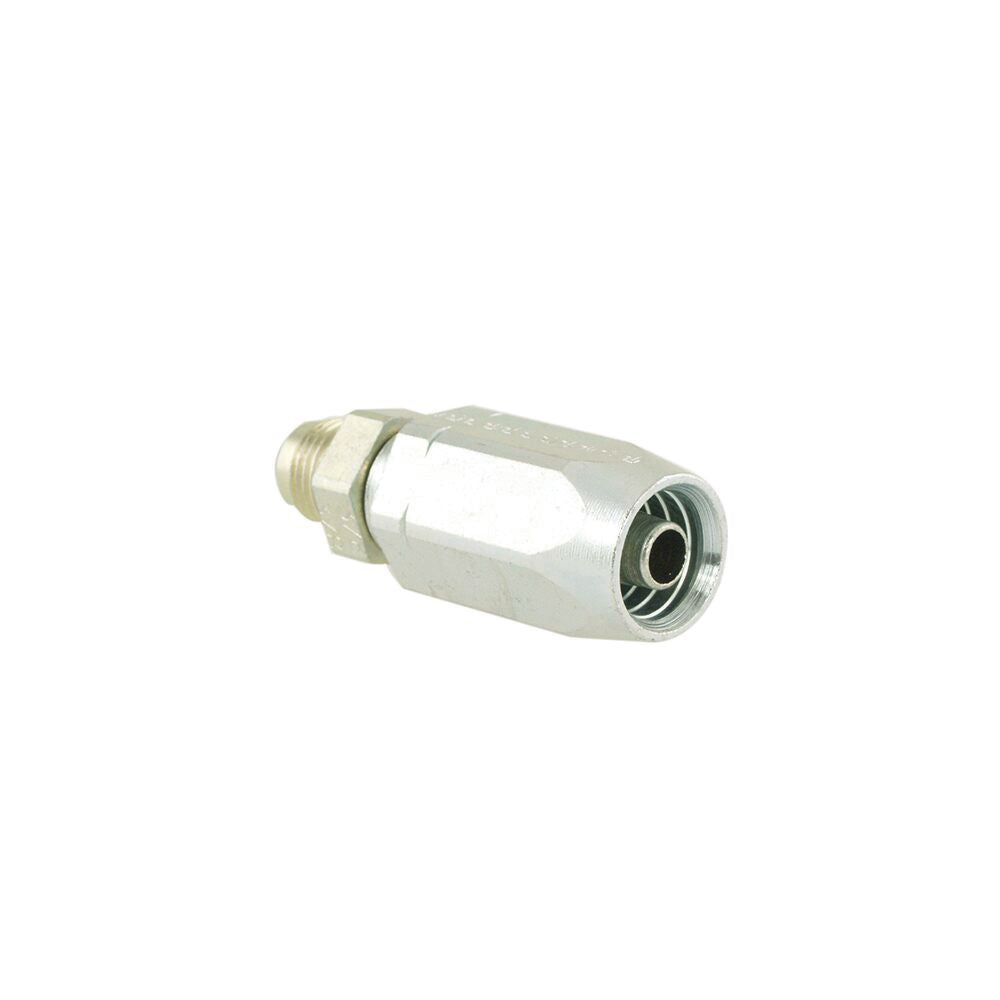

51 Series Hydraulic Field Attachable Hose End, Straight, Carbon Steel, Male Rigid JIC 37° Flare, 1/2 (-8) x 3/4-16 (-8)
(Pack of
2)
SKU:95342 Item#: 95342
For use with Medium Pressure, Non-Conductive Hose 518C (Nos. 95346, 95347, 95348 and Twin-Line Nos. PL95349B and PL95350B), and Medium Pressure Thermoplastic Hose (Nos. 88611, 88612, 88614, 88615 and Twin-Line No. PL90500B).
Frequently Bought Together
Power Crimp Coupler, Ferrule 726607825
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
$0.00
Couldn't load pickup availability
Spacer Ring Green
$0.00
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
$0.00
Couldn't load pickup availability
RYCO RY16 Mini Crimper Crimp Die Set, Crimp Range 0.551-0.630 Inch
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Upper Grille Retainer Nylon 1-1/4"
$0.00
Couldn't load pickup availability
DTM Primer Tan
$0.00
Couldn't load pickup availability
Ice Melter with Propel® 65lb
$0.00
Couldn't load pickup availability
Upper Grille Retainer Nylon 1-1/4"
$0.00
Couldn't load pickup availability
DTM Primer Tan
$0.00
Couldn't load pickup availability
Ice Melter with Propel® 65lb
$0.00
Couldn't load pickup availability
Product Description
For use with Medium Pressure, Non-Conductive Hose 518C (Nos. 95346, 95347, 95348 and Twin-Line Nos. PL95349B and PL95350B), and Medium Pressure Thermoplastic Hose (Nos. 88611, 88612, 88614, 88615 and Twin-Line No. PL90500B).Technical Specifications
| Item#: | 95342 |
|---|---|
| Manufacturer Model #: | 20351-8-8 |
| Manufacturer Series Number | 51 Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 1/2 (-8) " |
| Dash Size | -8 |
| Gender | Male |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 3/4-16 (-8) |
| O.D. Tube Size | 1/2 |
| Size | (-8)X(-8) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 1.02 lb |
