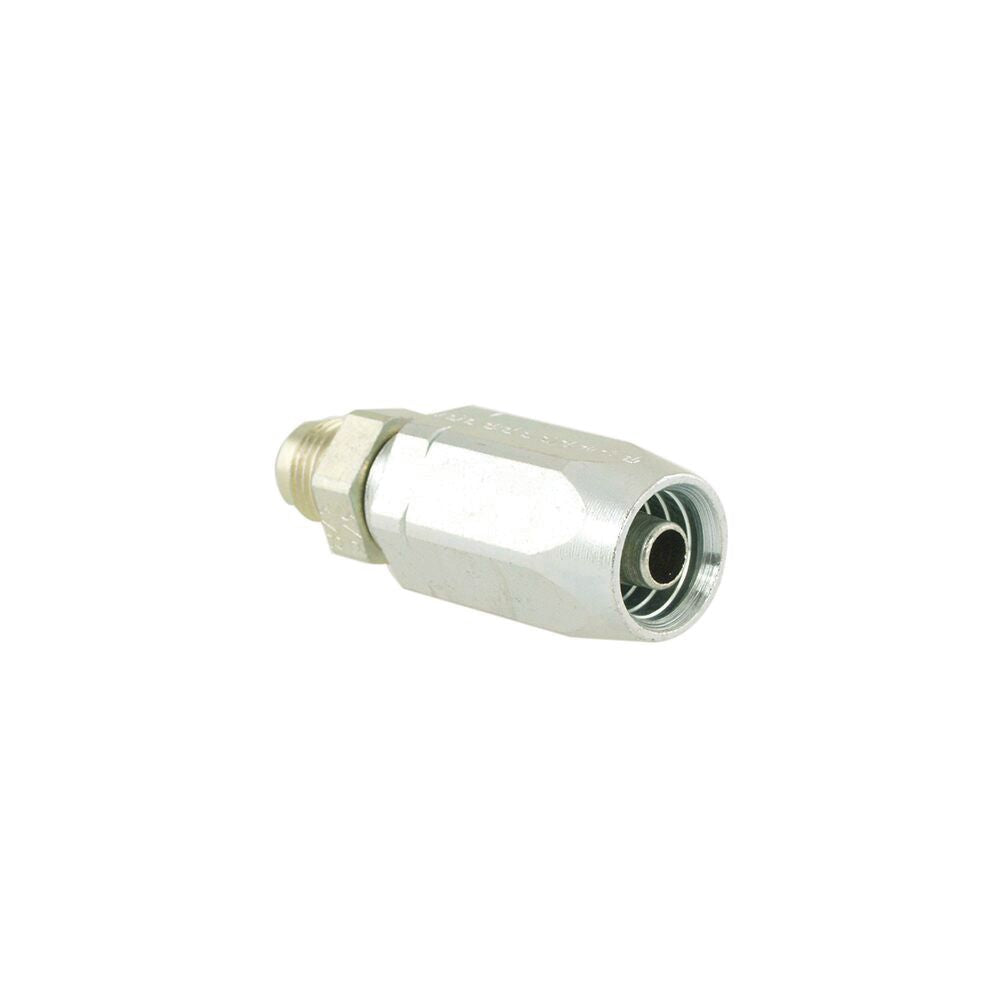

51 Series Hydraulic Field Attachable Hose End, Straight, Carbon Steel, Male Rigid JIC 37° Flare, 1/4 (-4) x 1/2-20 (-5)
(Pack of
2)
SKU:95339 Item#: 95339
For use with Medium Pressure, Non-Conductive Hose 518C (Nos. 95346, 95347, 95348 and Twin-Line Nos. PL95349B and PL95350B), and Medium Pressure Thermoplastic Hose (Nos. 88611, 88612, 88614, 88615 and Twin-Line No. PL90500B).
Frequently Bought Together
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734745245
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734724245
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734742245
$0.00
Couldn't load pickup availability
Spacer Ring Brown
$0.00
Couldn't load pickup availability
Spacer Ring Black
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/16 x 5/16 x 1/16"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"
$0.00
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Adhesion Promoter - 16oz
$0.00
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
$0.00
Couldn't load pickup availability
Flexi-Finish Plastics 2-Part Epoxy
$0.00
Couldn't load pickup availability
Adhesion Promoter - 16oz
$0.00
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
$0.00
Couldn't load pickup availability
Flexi-Finish Plastics 2-Part Epoxy
$0.00
Couldn't load pickup availability
Product Description
For use with Medium Pressure, Non-Conductive Hose 518C (Nos. 95346, 95347, 95348 and Twin-Line Nos. PL95349B and PL95350B), and Medium Pressure Thermoplastic Hose (Nos. 88611, 88612, 88614, 88615 and Twin-Line No. PL90500B).Technical Specifications
| Item#: | 95339 |
|---|---|
| Manufacturer Model #: | 20351-5-4 |
| Manufacturer Series Number | 51 Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Male |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1/2-20 (-5) |
| O.D. Tube Size | 5/16 |
| Size | (-4)X(-5) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
