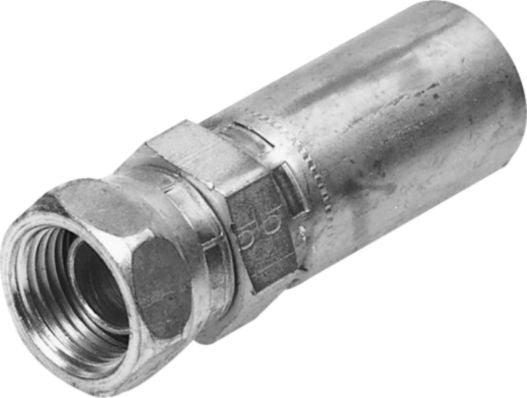

55 Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel Pipe NPTF, 1/4 (-4) x 1/4-18 (-4)
(Pack of
5)
SKU:88845 Item#: 88845
To determine hose end series, reference the fourth and fifth digits of the Parker Fitting No.Example: 10658-4-2 is 58 Series and 10655-4-3 is 55 Series.
Frequently Bought Together
GlobalSpiral Coupler, O-Ring Face Seal 734733245
Item#: 1644489
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734773845
Item#: 1644488
$0.00
Couldn't load pickup availability
Power Crimp Coupler, Ferrule 726607825
Item#: 1644518
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN Green
Item#: P27171
$0.00
Couldn't load pickup availability
Braided Collet Orange
Item#: 1555849
$0.00
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x G-3/8-19
Item#: 20739
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
Item#: KT15124
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Item#: KT14094
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Item#: 57505
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Item#: KT13687
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
Item#: P86117
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Item#: P58130
$0.00
Couldn't load pickup availability
Product Description
To determine hose end series, reference the fourth and fifth digits of the Parker Fitting No.Example: 10658-4-2 is 58 Series and 10655-4-3 is 55 Series.Technical Specifications
| Item#: | 88845 |
|---|---|
| Manufacturer Model #: | 10755-4-4 |
| Manufacturer Series Number | 55 Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Female |
| Fitting End Style | Pipe NPTF |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1/4-18 (-4) |
| O.D. Tube Size | 1/4 |
| Pusher Part Number | 88782 |
| Die Part Number | 88803* |
| Size | (-4)X(-4) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.5 lb |
