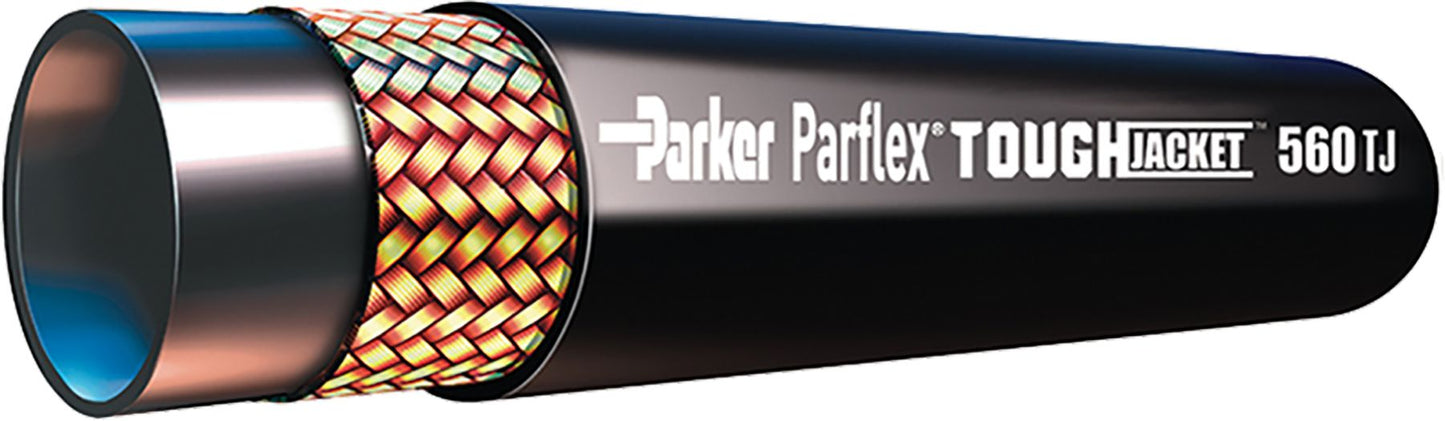

560 Hydraulic Hose, Urethane, 1-Steel Braided, 3/8" ID, 0.64" OD, 50' Length, 2750PSI, SAE 100R1
(Pack of
50)
SKU:88599 Item#: 88599
Much lighter and smaller than rubber 100R1 hose, 560 High-Performance, Medium Pressure Hoses offer excellent wear, cut, weather and ozone resistance. Suitable for most synthetic hydraulic fluids, water to 135°F (57°C) and a wide range of chemicals.
• Elastomeric core tube, high tensile brass-plated steel wire single braid reinforcement, abrasion-resistant black urethane cover• Superior abrasion resistance
SAE 100R1
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R1 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Frequently Bought Together
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
$0.00
Couldn't load pickup availability
Product Description
Much lighter and smaller than rubber 100R1 hose, 560 High-Performance, Medium Pressure Hoses offer excellent wear, cut, weather and ozone resistance. Suitable for most synthetic hydraulic fluids, water to 135°F (57°C) and a wide range of chemicals.• Elastomeric core tube, high tensile brass-plated steel wire single braid reinforcement, abrasion-resistant black urethane cover• Superior abrasion resistance
SAE 100R1
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R1 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Technical Specifications
| Item#: | 88599 |
|---|---|
| Manufacturer Model #: | 560-6 |
| Type | Thermoplastic Hose |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R1 |
| Manufacturer Series Number | 560 |
| Manufacturer Series Name | Parflex |
| Dash Size | -6 |
| Working Pressure | 2,750 PSI |
| Burst Pressure | 10,000 PSI |
| Minimum Bend Radius | 2-1/4 " |
| Inner Tube Material | Polyester |
| Hose Reinforcement | 1 Steel Braid |
| Hose Cover Material | Urethane |
| Fitting Series | 55 |
| Temperature | -40F to +250F |
| Color | Black |
| Size | 3/8 (-6) |
| Parker Crimp Fitting Series | 55 |
| Swage Die Selection | 88805 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 9.45 lb |
