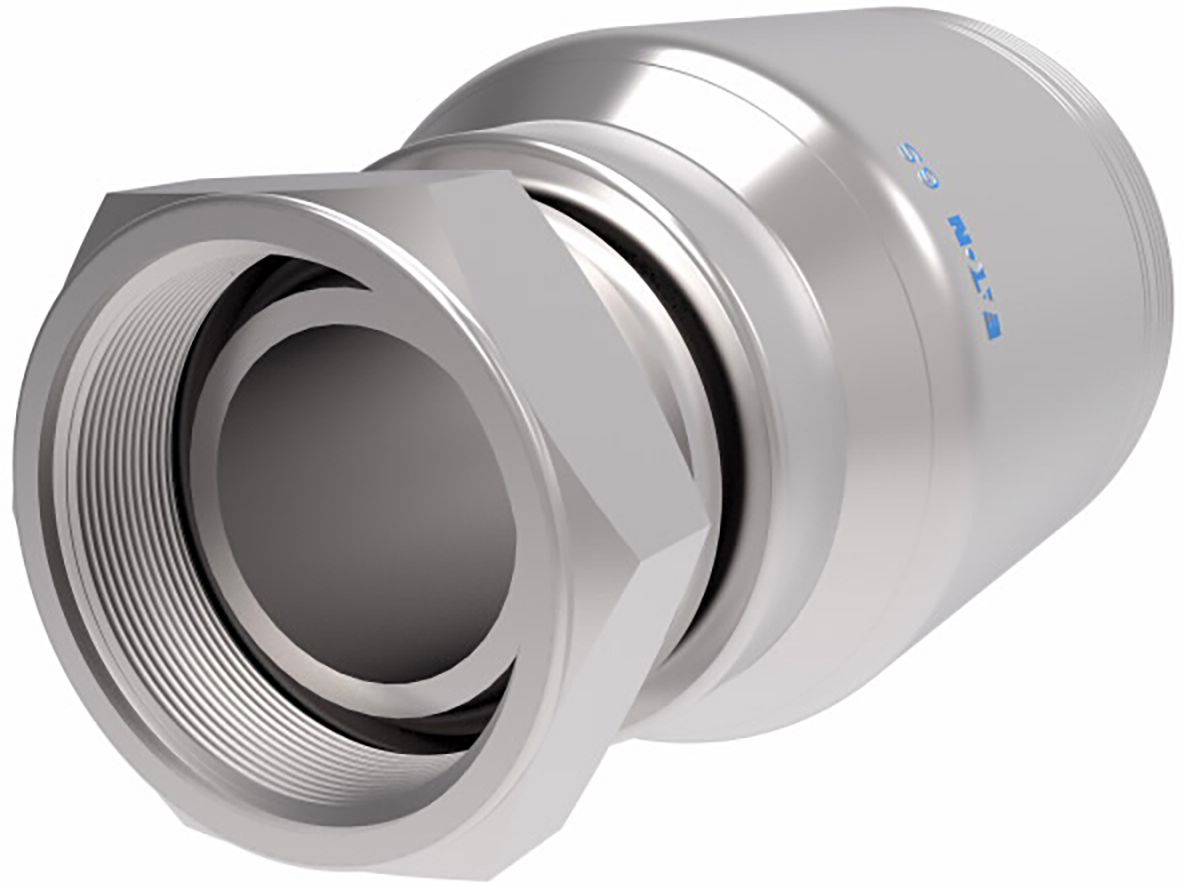

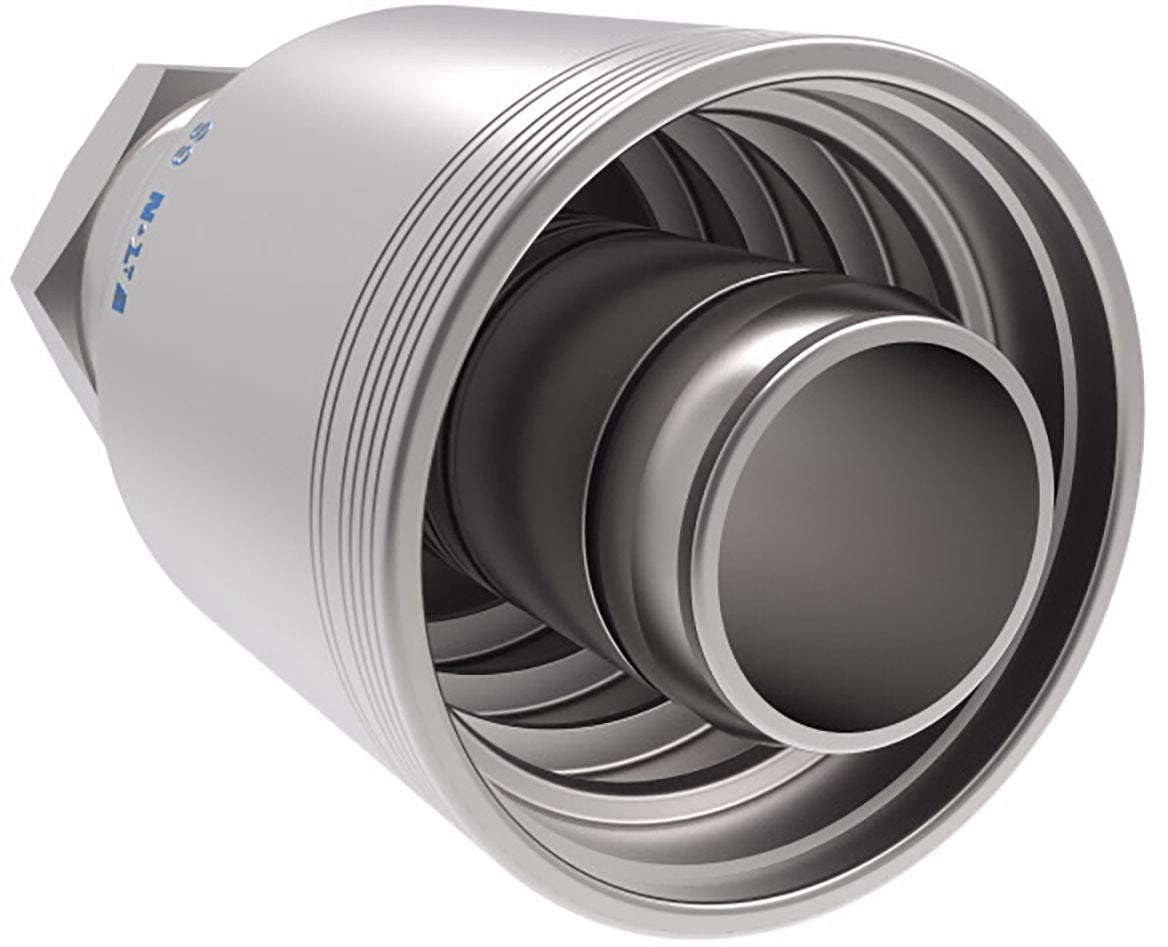

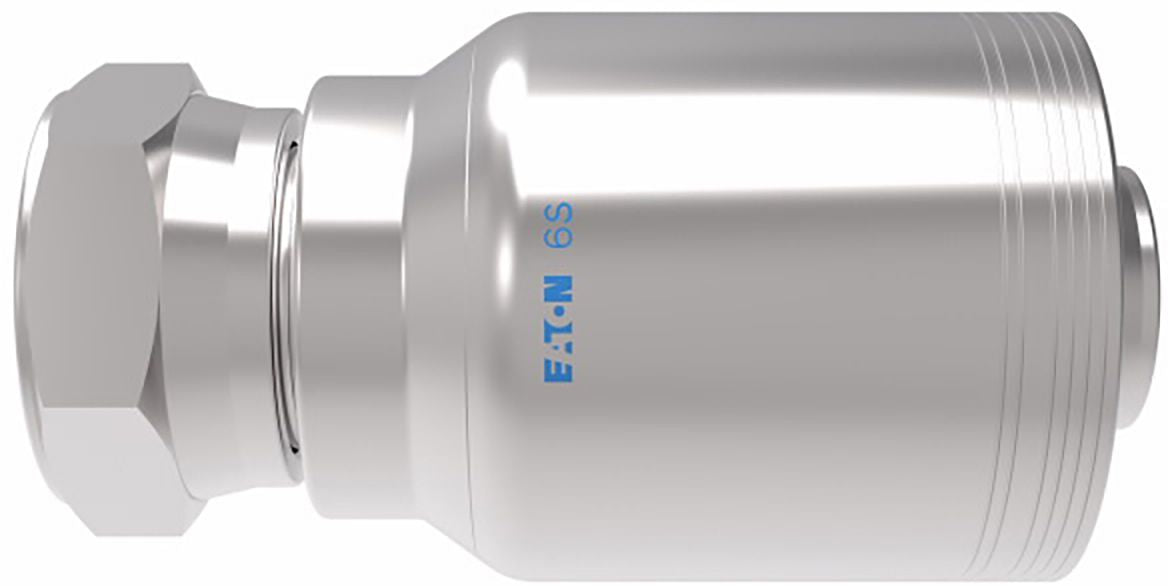

6S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel BSPP, 60° Cone Seat, 1-1/2 (-24) x 1-1/2-11 (-24)
(Pack of
1)
SKU:1543052 Item#: 1543052
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, JIC 37 Deg Flare 734724245
Item#: 1644491
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734742245
Item#: 1644500
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734773065
Item#: 1644498
$0.00
Couldn't load pickup availability
Industrial O-Ring Viton 1-1/2 x 1-11/16 x 3/32"
Item#: 92897
$0.00
Couldn't load pickup availability
Spacer Ring Pink/White
Item#: 1555772
$0.00
Couldn't load pickup availability
Spacer Ring Green/White
Item#: 1555805
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Item#: 54556
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
Item#: P64047M01
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
Item#: KT15124
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
Item#: P85438
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Item#: P15599
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Item#: KT13537
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543052 |
|---|---|
| Manufacturer Model #: | 6S24BF24 |
| Manufacturer Series Number | 6S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/2 (-24) " |
| Dash Size | -24 |
| Gender | Female |
| Fitting End Type | BSPP |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-1/2-11 (-24) |
| Weatherhead No. | 6S24BF24 |
| SAE Code | J1176 |
| Hex Size | 55 mm |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.57 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 3.02 lb |
