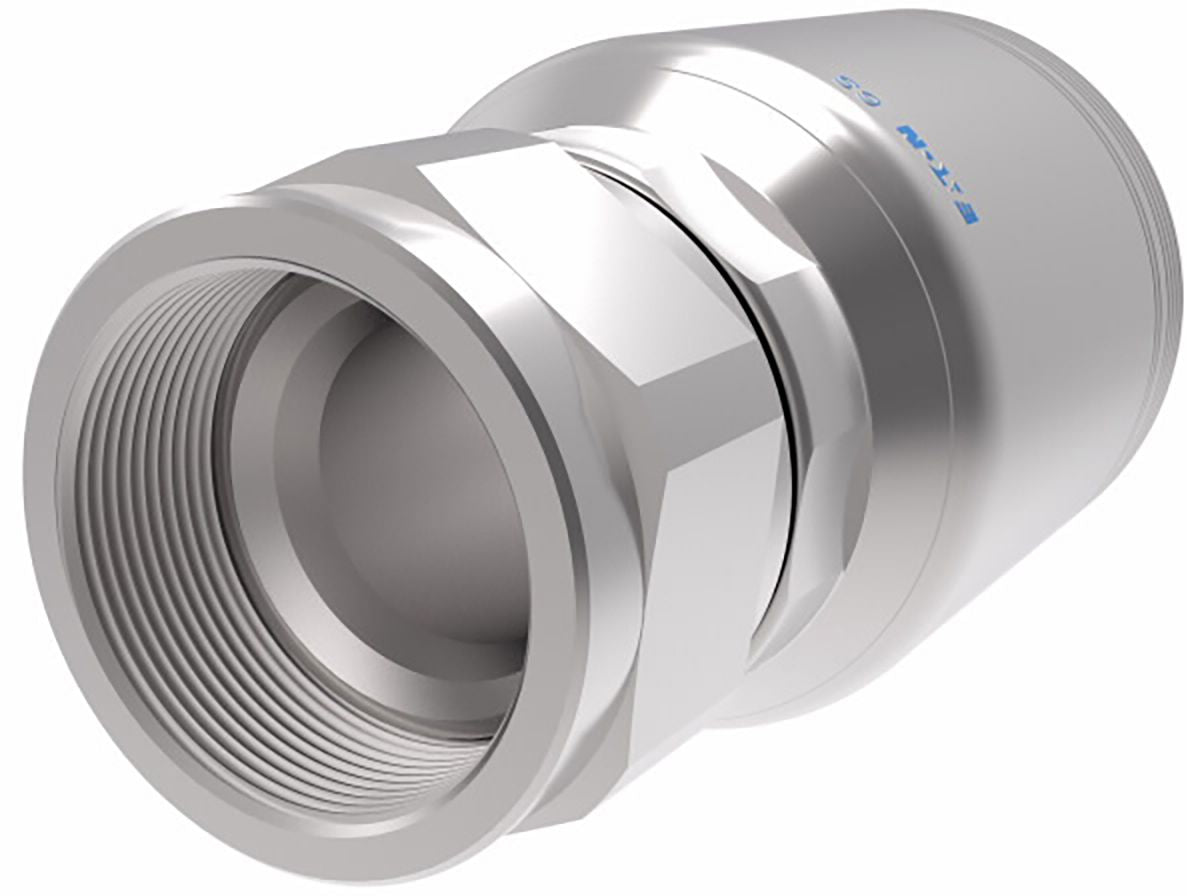

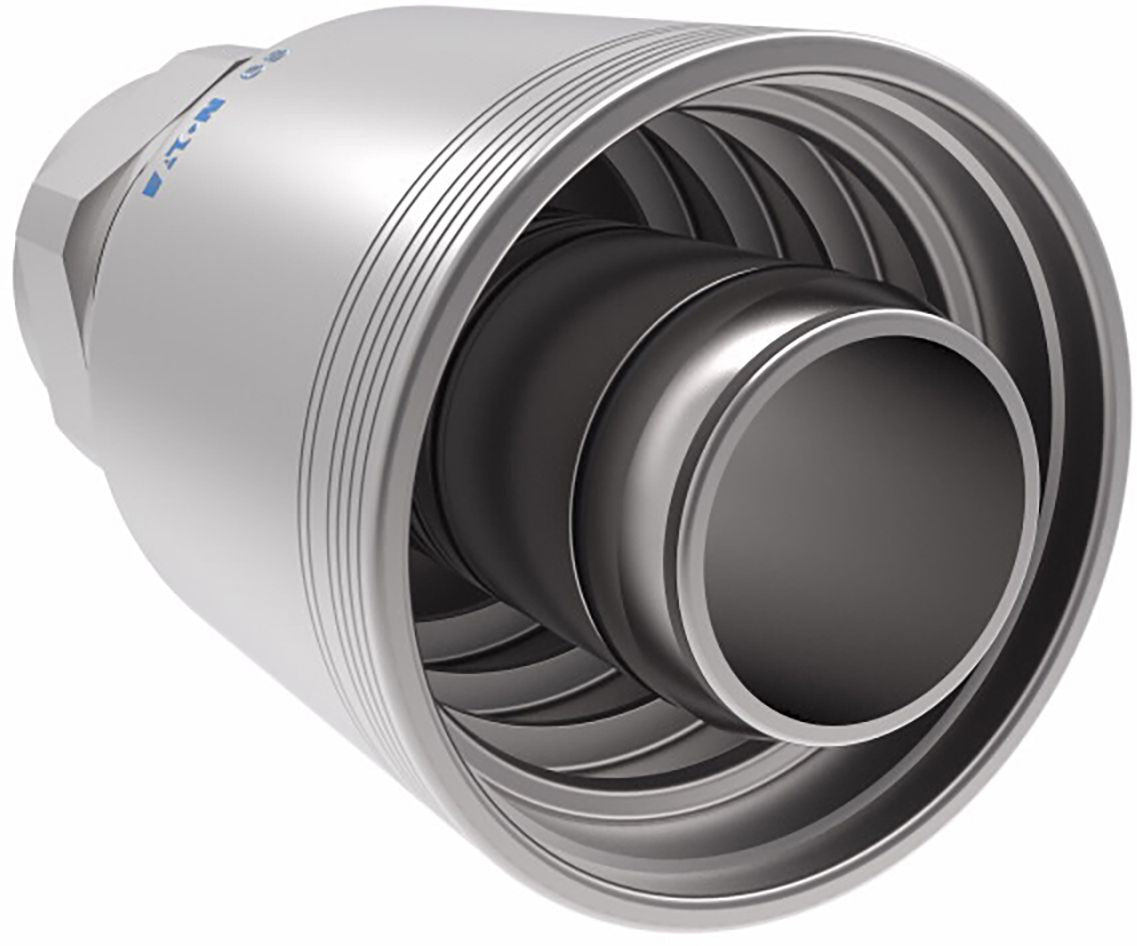

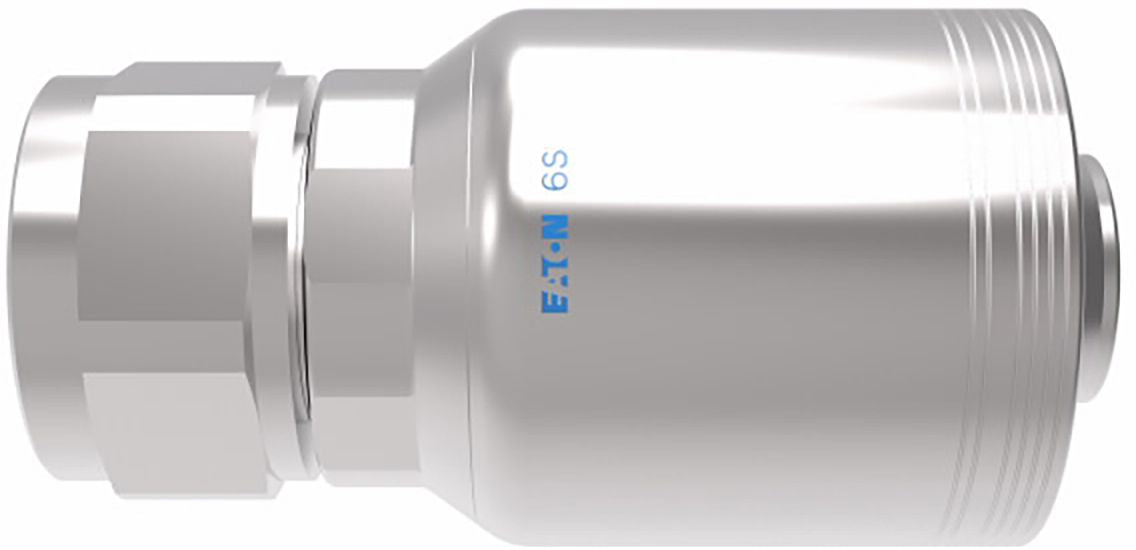

6S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel JIC 37°, 1-1/2 (-24) x 1-7/8-12 (-24)
(Pack of
1)
SKU:1543049 Item#: 1543049
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Crimp-On Hose Coupling 1/2" x 1/2-14
Item#: 88314KH
$0.00
Couldn't load pickup availability
FF12139
Item#: 1182613
$0.00
Couldn't load pickup availability
08Z-BC48- Hose End (perm) 1S/1R 45 D Male STC
Item#: 1184318
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
Item#: 1690522
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733201025
Item#: 1643557
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733200335
Item#: 1641246
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Item#: 11914
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Item#: KT15127
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Item#: KT15123
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: KT11397
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543049 |
|---|---|
| Manufacturer Model #: | 6SA24FJ24 |
| Manufacturer Series Number | 6S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/2 (-24) " |
| Dash Size | -24 |
| Gender | Female |
| Fitting End Type | SAE |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-7/8-12 (-24) |
| Weatherhead No. | 6SA24FJ24 |
| SAE Code | J1176 |
| Hex Size | 2.25 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.24 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 3.4 lb |
