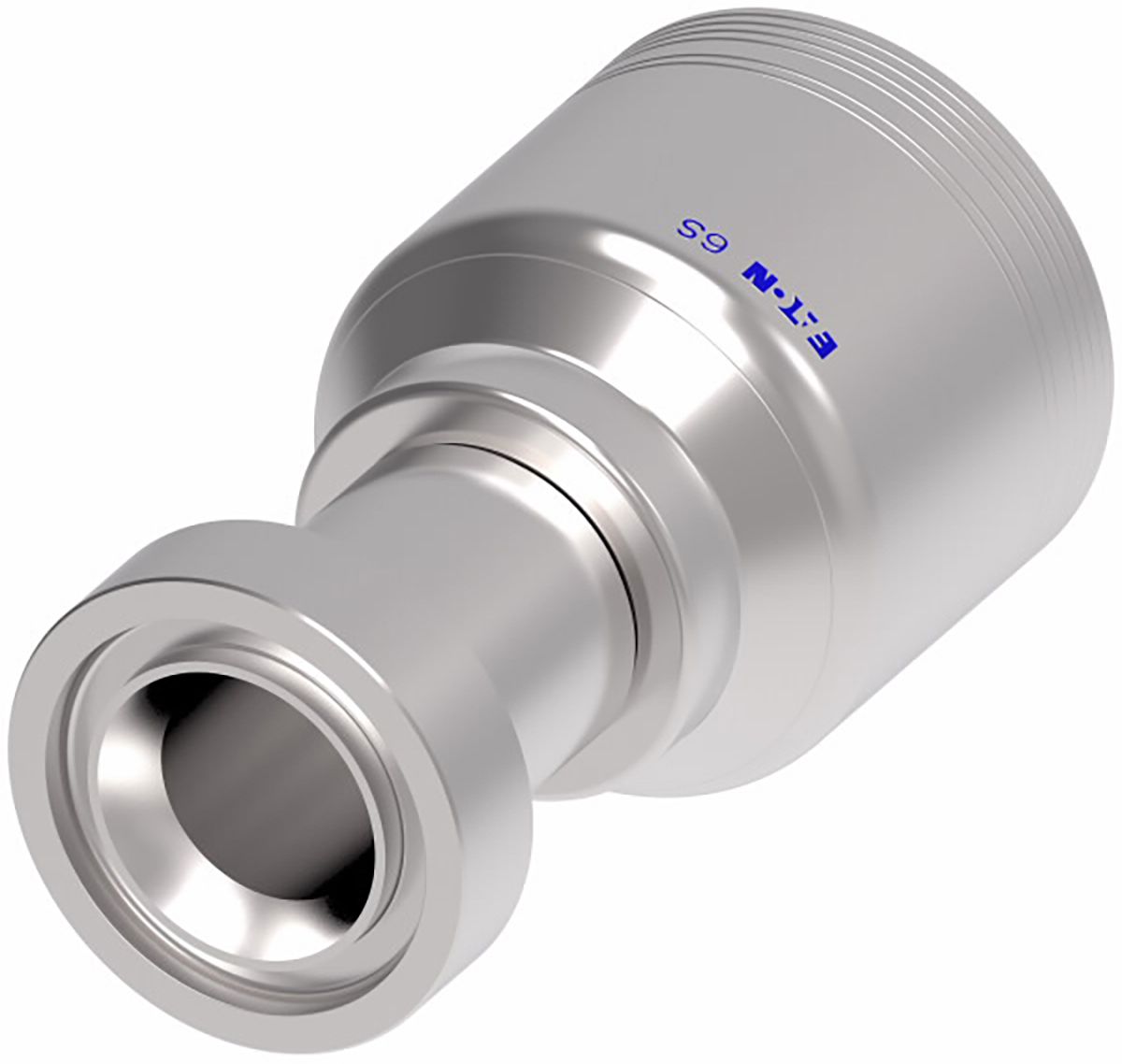

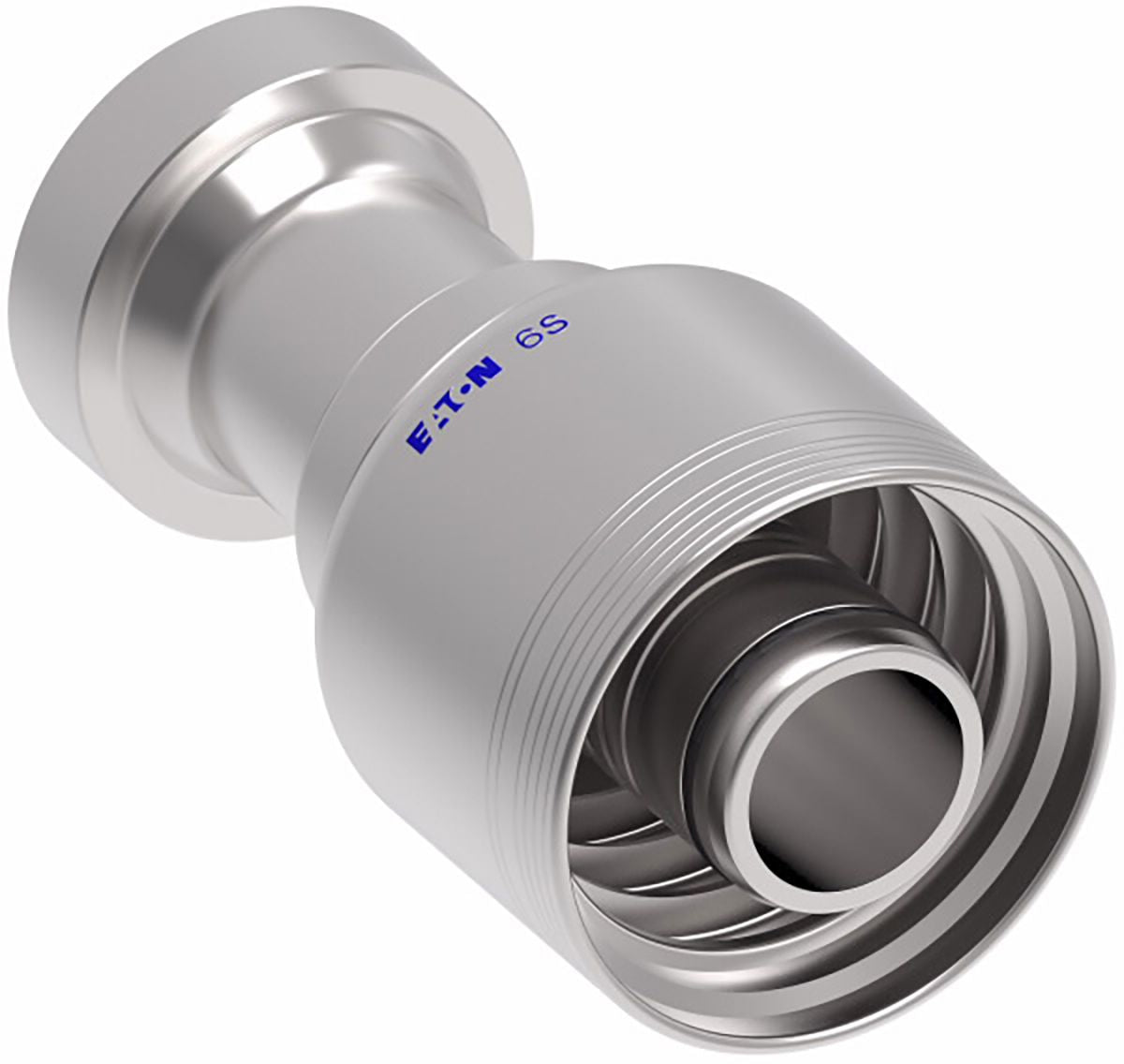

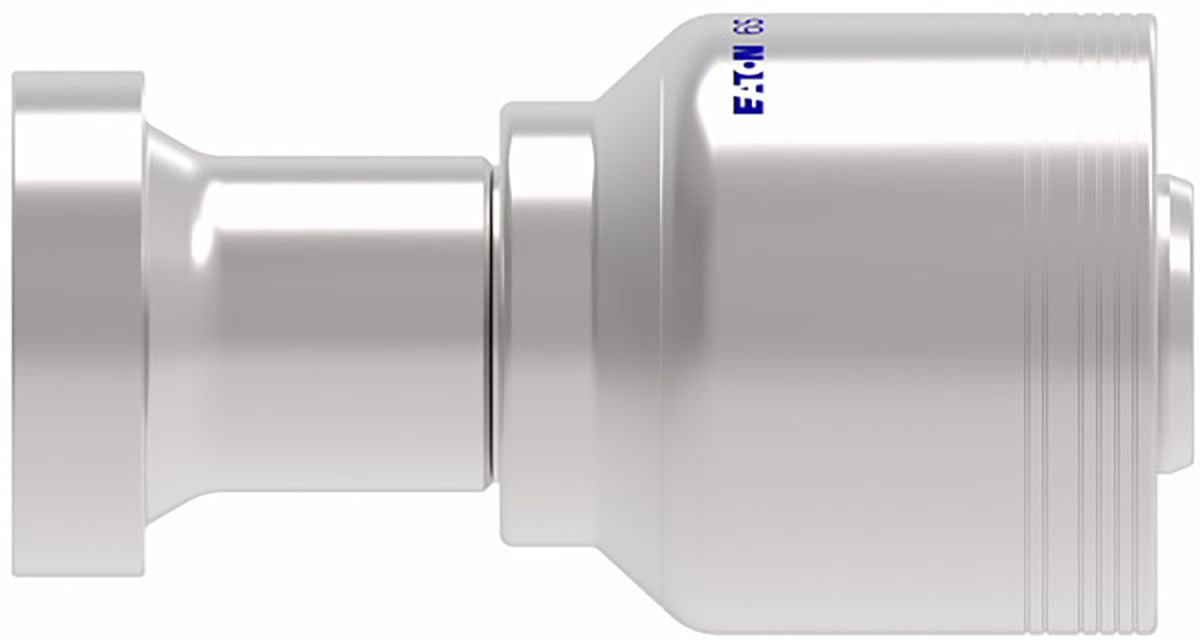

6S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Cat Flange, 1-1/4 (-20) x 2.13 (-20)
(Pack of
1)
SKU:1543057 Item#: 1543057
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
KH Series Crimp-On Coupling 1/2" x 3/4-16
Item#: 88290KH
$0.00
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
Item#: 88314KH
$0.00
Couldn't load pickup availability
FF12139
Item#: 1182613
$0.00
Couldn't load pickup availability
GM005 PCTS Swager Pusher
Item#: 1645666
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
Item#: 1690522
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733201025
Item#: 1643557
$0.00
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
Item#: P62057M01
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Item#: 11914
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Item#: KT15127
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543057 |
|---|---|
| Manufacturer Model #: | 6S20CT20 |
| Manufacturer Series Number | 6S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Fitting End Type | Flanged |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 2.13 (-20) |
| Weatherhead No. | 6S20CT20 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 4.9 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.0 lb |
