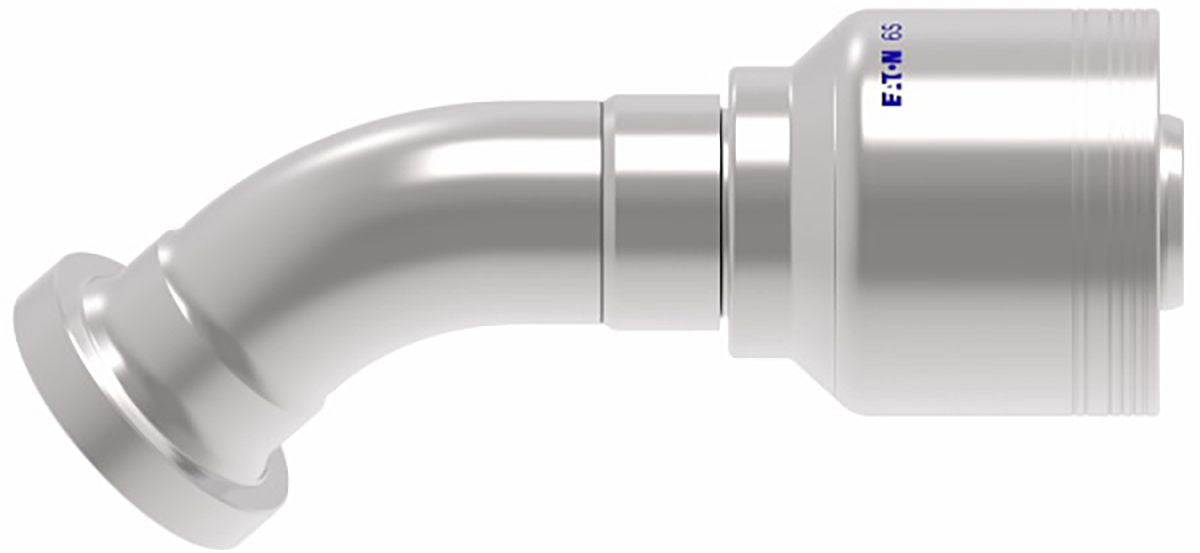

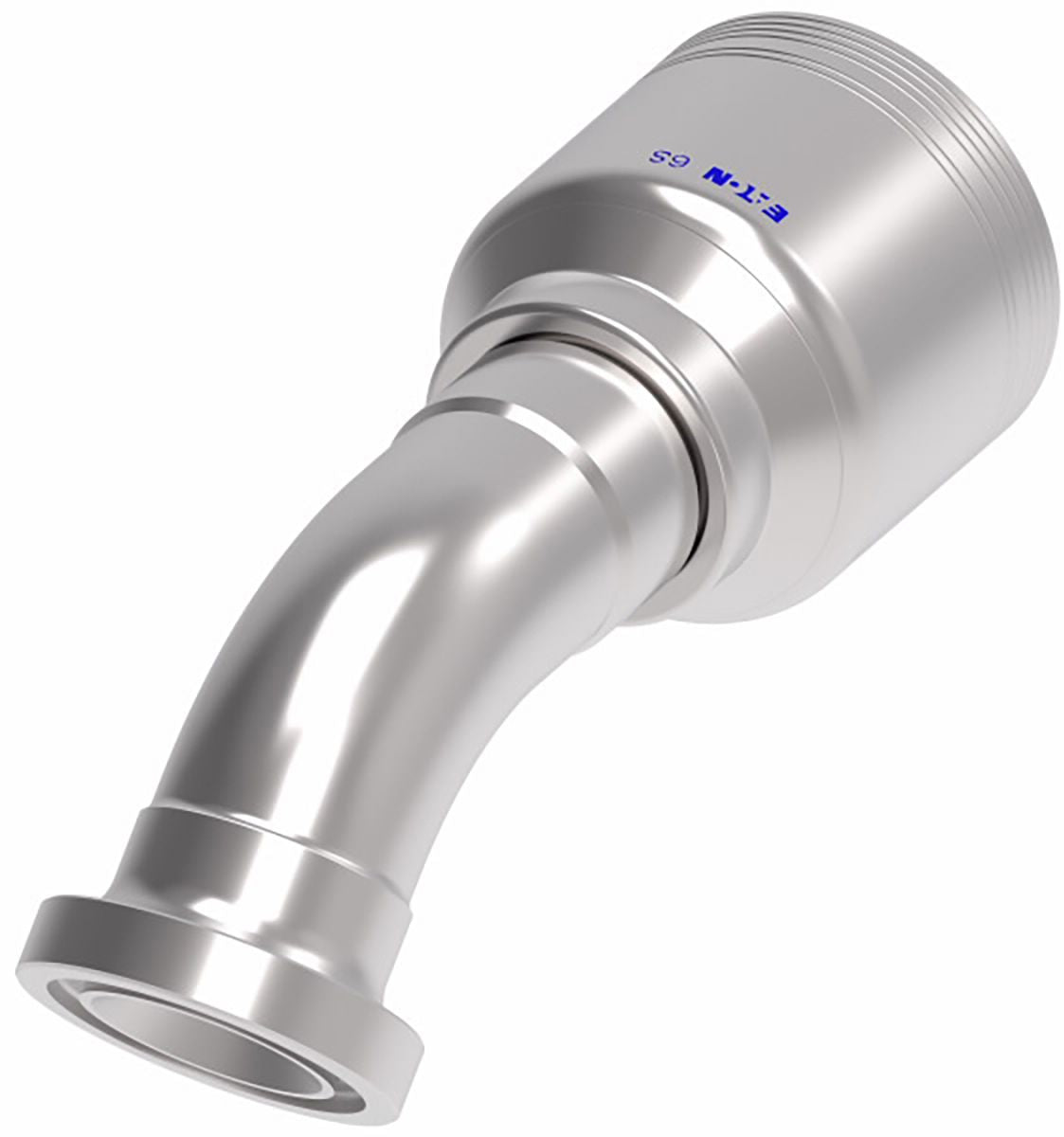

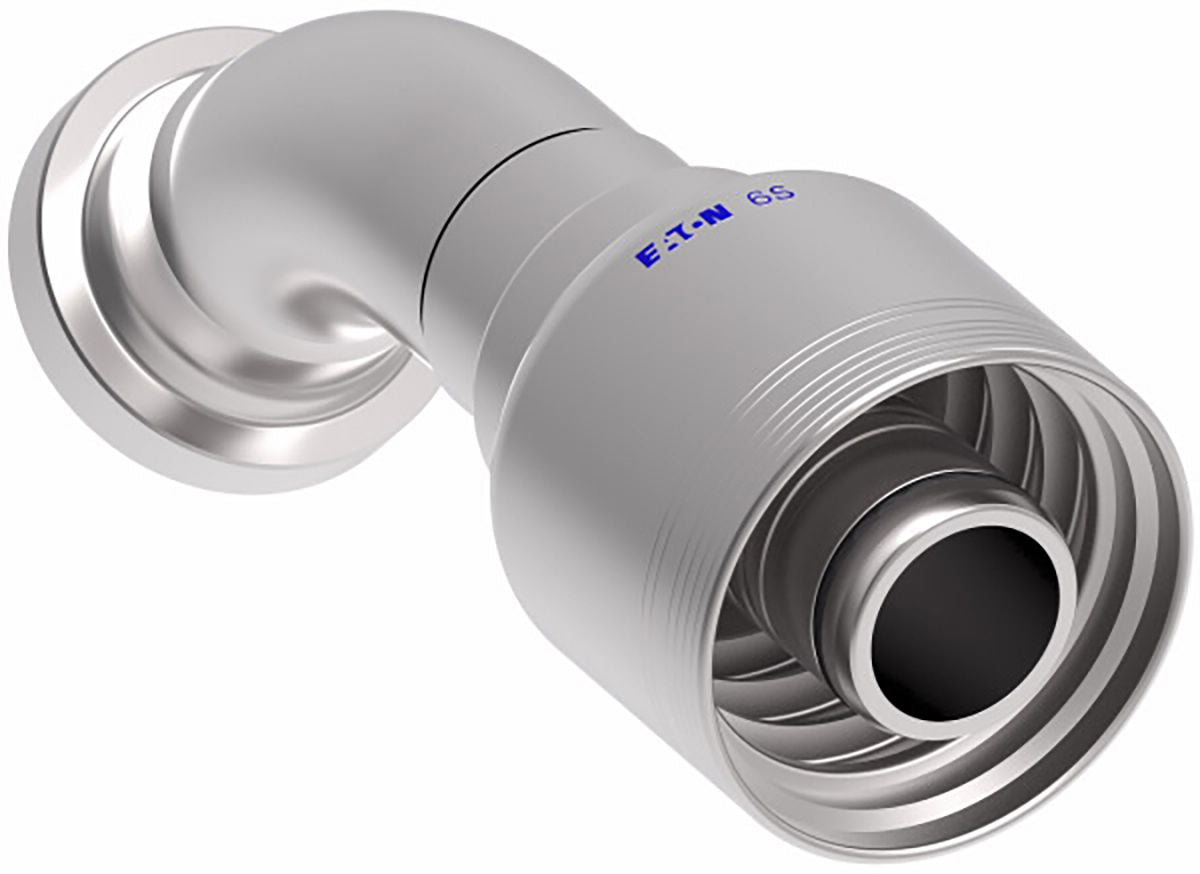

6S Series Crimp-On Elbow, Carbon Steel, Split Flange 45°, SAE 62, 1-1/4 (-20) x 2.13" (-20)
(Pack of
1)
SKU:1543066 Item#: 1543066
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
Item#: 1644600
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, Ferrule 736251345
Item#: 1644599
$0.00
Couldn't load pickup availability
Industrial O-Ring Buna-N 7/32 x 11/32 x 1/16"
Item#: 11186 04
$0.00
Couldn't load pickup availability
ET1000 Crimper Starter Assortment EC215 129 Pcs
Item#: AP1000Z215
$0.00
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
Item#: 88314KH
$0.00
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 9/16 to 1-1/16"
Item#: KT14024
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
Item#: 27201
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Item#: 86728
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Item#: 1420584
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Item#: 1457520
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Item#: 1513544
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543066 |
|---|---|
| Manufacturer Model #: | 6S20FHA20 |
| Manufacturer Series Number | 6S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Fitting End Type | Flanged |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 2.13 (-20) |
| Weatherhead No. | 6S20FHA20 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 4.39 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.38 lb |
